LAGUN - GBR3PT-MIL-LAG-2014-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Lagun GBR3 Milling Machine

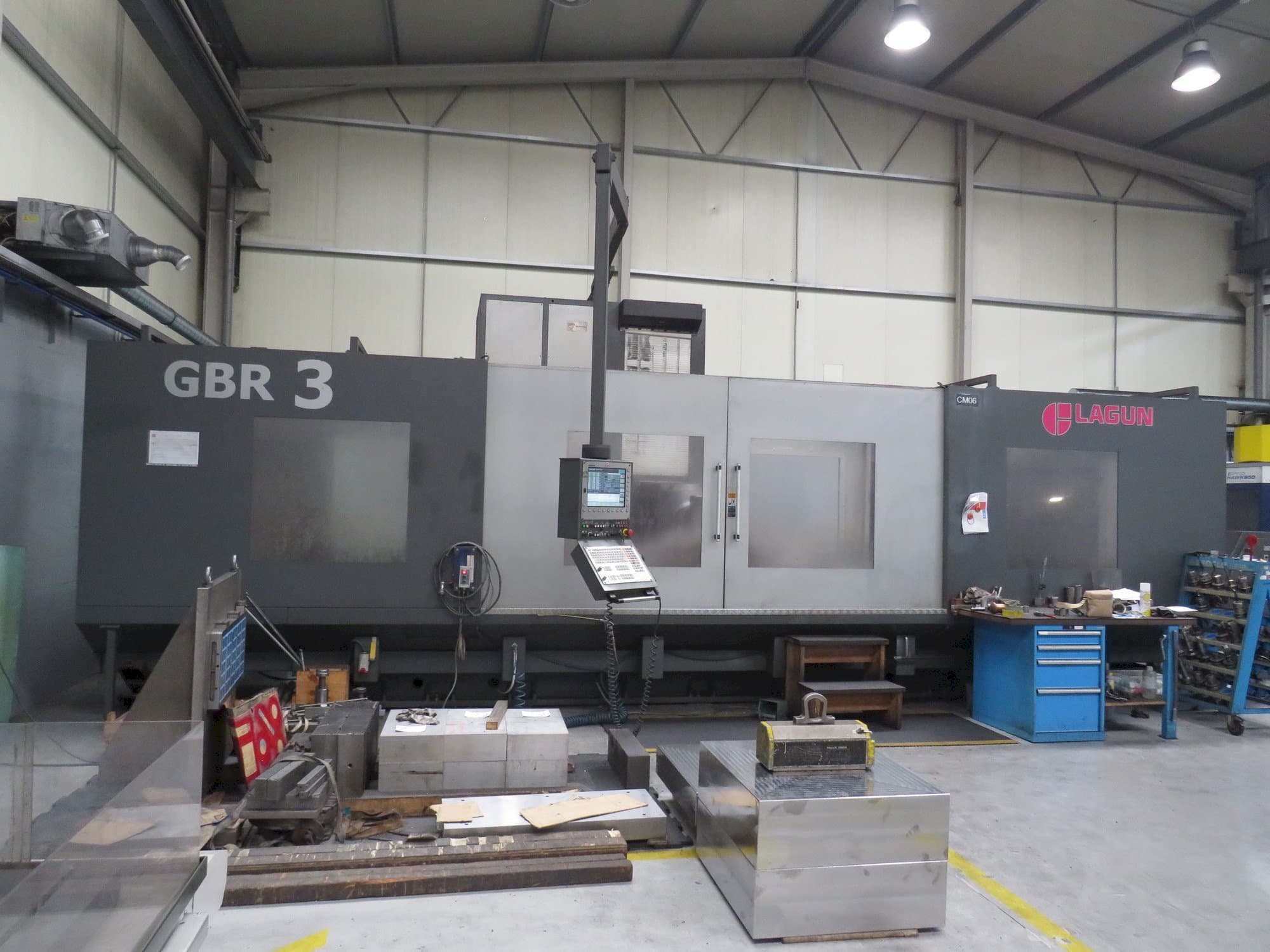

This Lagun GBR3 Milling Machine, fabricated in Spain in 2014. This 3 axis machine has a table dimensions of 3100 x 1000 mm, counts with a spindle speed up to 4000 rpm, and a rotating head 2,5º in 2,5º.
Overview
- brand: LAGUN
- year: 2014
- MODEL: GBR3
- application type: Milling
- Location: Portugal
- machine type: Gantry Milling Machine
- availability: Sold
Technical Information - LAGUN GBR3
General Data
- Measurements width: 8090 MM
- Measurements depth: 5770 MM
- Measurements height: 3770 MM
- Machine weight: 18300 kg
Main drive
- Spindle speed range: 4000 1/MIN
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 1500 mm
Table
- Outer length: 310 mm
- Outer width: 1000 mm
- Table load: 6000 kg
Additional Information
- Technical Machine Benefits:
- - Rotating head 2,5º in 2,5º
- - Iso 50 spindle
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
