LAGUN - Future 1800ES-MIL-LAG-1998-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

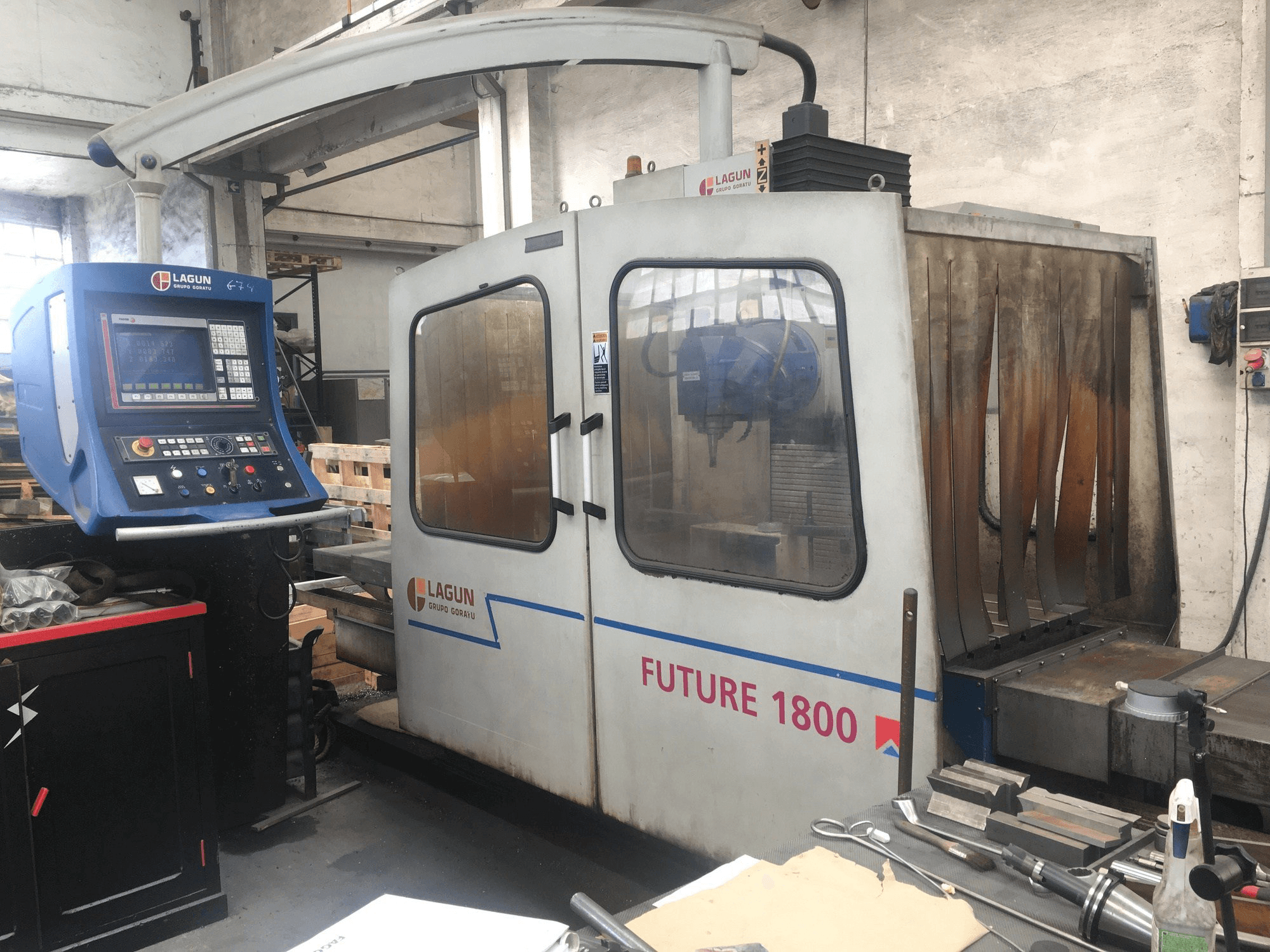

LAGUN Future 1800 Milling Machine

Show in original language

This LAGUN Future 1800 Milling Machine was made in 1998 in Spain. It has a production history of 41480 working hours since then. It is operated through a Fagor 8025 control unit. This machine counts with a spindle speed up to 3000 rpm. It includes some tools.

Overview

brand: LAGUN
year: 1998
MODEL: Future 1800
production hours: 41480
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: FAGOR

Technical Information - LAGUN Future 1800

General Data

Measurements width: 4500 mm
Measurements depth: 2500 mm
Measurements height: 2900 mm
Machine weight: 12000 kg

Control Unit

Model: 8025
CNC main language: Spanish
CNC language customizable: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/MIN

Movement

X-AXIS Movement: 1700 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 1700 mm
Workpiece y: 800 mm
Workpiece z: 800 mm
Workpiece weight: 2500 kg

Table

Outer length: 1800 mm
Outer width: 700 mm

Media

Main electronic connection: 380 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wide range of movement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
