➤ Used LAGUN FUTURE 1800 - Milling Machine

Show in original language

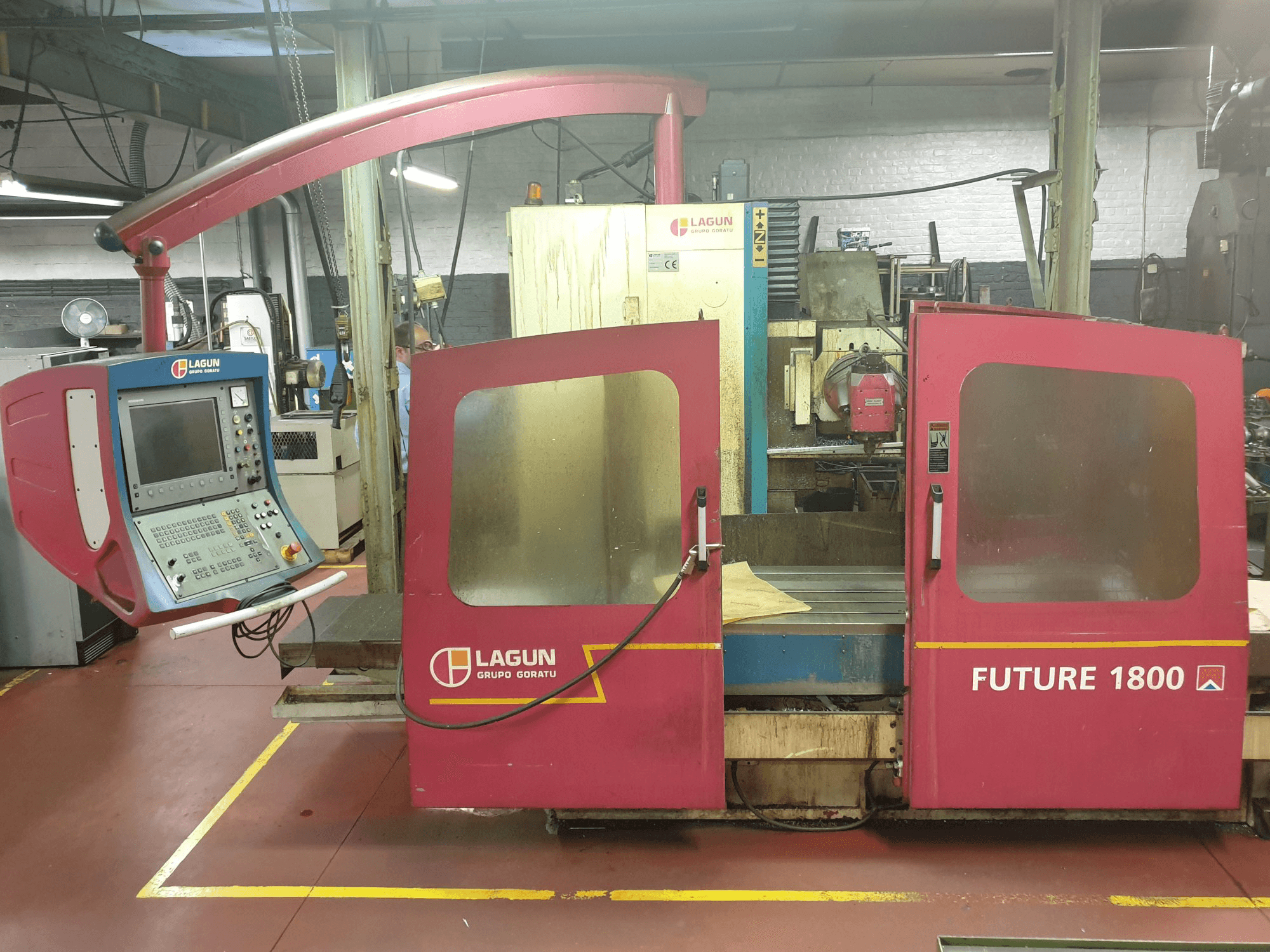

This LAGUN FUTURE 1800 Milling Machine made in 1999 in Switzerland has a production history of 12400 working hours since then. Operated through a Heidenhain 426 Control unit, this model stands out due to its big size table and wide range of parts to mill. It presents good conditions, as it has been inspected on a yearly basis.

Overview

brand: LAGUN
year: 1999
MODEL: FUTURE 1800
production hours: 12400
application type: Milling
Location: Belgium
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - LAGUN FUTURE 1800

General Data

Measurements width: 4500 mm
Measurements depth: 2500 mm
Measurements height: 2900 MM
Machine weight: 12000 kg

Control Unit

Model: 426
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3000 rpm 1/MIN

Movement

X-AXIS Movement: 1700 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1800 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 22 mm

Tools

Max weight: 15 kg
Max tool diameter: 16 mm

Media

Main electronic connection: 380 V
Power consumption: 55 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
