Lagun FU-185 Milling Machine

Show in original language

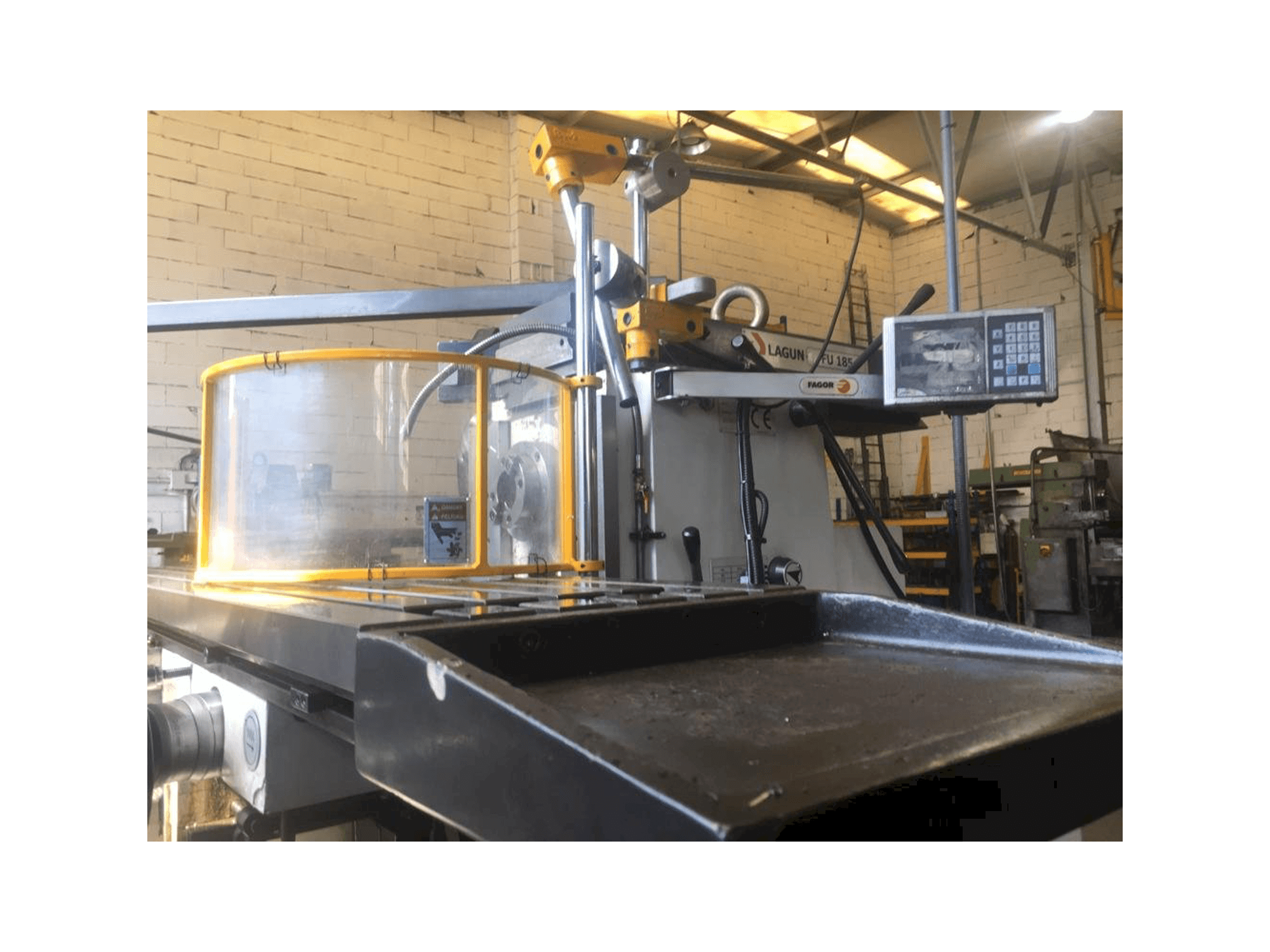

This Lagun FU-185 Milling Machine, fabricated in Spain in 2012. It has a working record of around 4500 working hours. Equipped with a Lagun FTV2 control unit. This machine incorporates 3 axis, and counts with a spindle speed up to 3000 rpm.

Overview

brand: LAGUN
year: 2012
MODEL: FU-185
production hours: 4500
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold

Technical Information - LAGUN FU-185

General Data

Measurements width: 3950 mm
Measurements depth: 2000 mm
Measurements height: 1835 mm
Machine weight: 3200 kg

Control Unit

Model: FTV2
CNC main language: Spanish
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 40-1800 rpm 1/MIN

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 1500 mm
Workpiece y: 400 mm
Workpiece z: 500 mm
Workpiece weight: 500 kg

Table

Outer length: 1850 mm
Outer width: 350 mm
Number of tslots: 5
Distance between: 60 mm

Media

Main electronic connection: 400 V

Additional Information

Machine history

Industries: Industrial machinery

Machine Benefits

Technical Machine Benefits:
- - Visualizer
Qualitative Machine Benefits:
- - Good status
- - Little working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
