Lagun FBF-M-2600 Milling machine

Show in original language

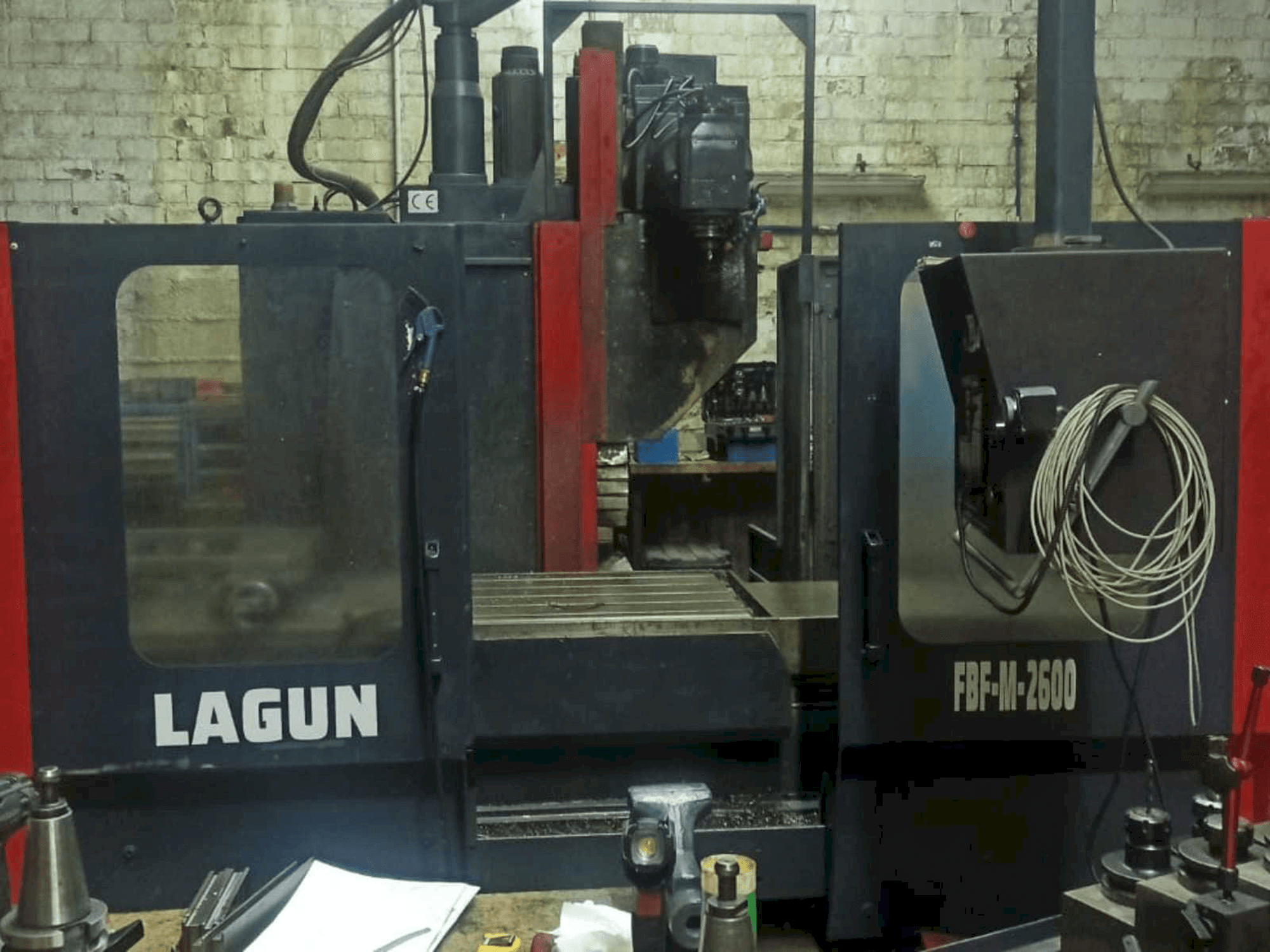

This Lagun FBF-M-2600 Milling machine was made in 1997. It is controlled by a Fagor 8025 control unit and has 4 axis. The machine has a spindle speed of 40-2100 rpm, and includes a 70 cone BT50 and a table and cabinet for cones BT50 and BT40 as additional equipment.

Overview

brand: LAGUN
year: 1997
MODEL: FBF-M-2600
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: FAGOR

Technical Information - LAGUN FBF-M-2600

General Data

Machine weight: 11760 kg

Control Unit

Model: 8025
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 40-2100 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 6200 kg

Table

Outer length: 2600 mm
Outer width: 800 mm
Distance between: 140 mm

Tools

Type of tool holder: BT50

Additional equipment

- 50 cone BT50
- table and cabinet for cones BT50 and BT40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
