- KUNZMANN WF 7 CNC Vertical Machining Center

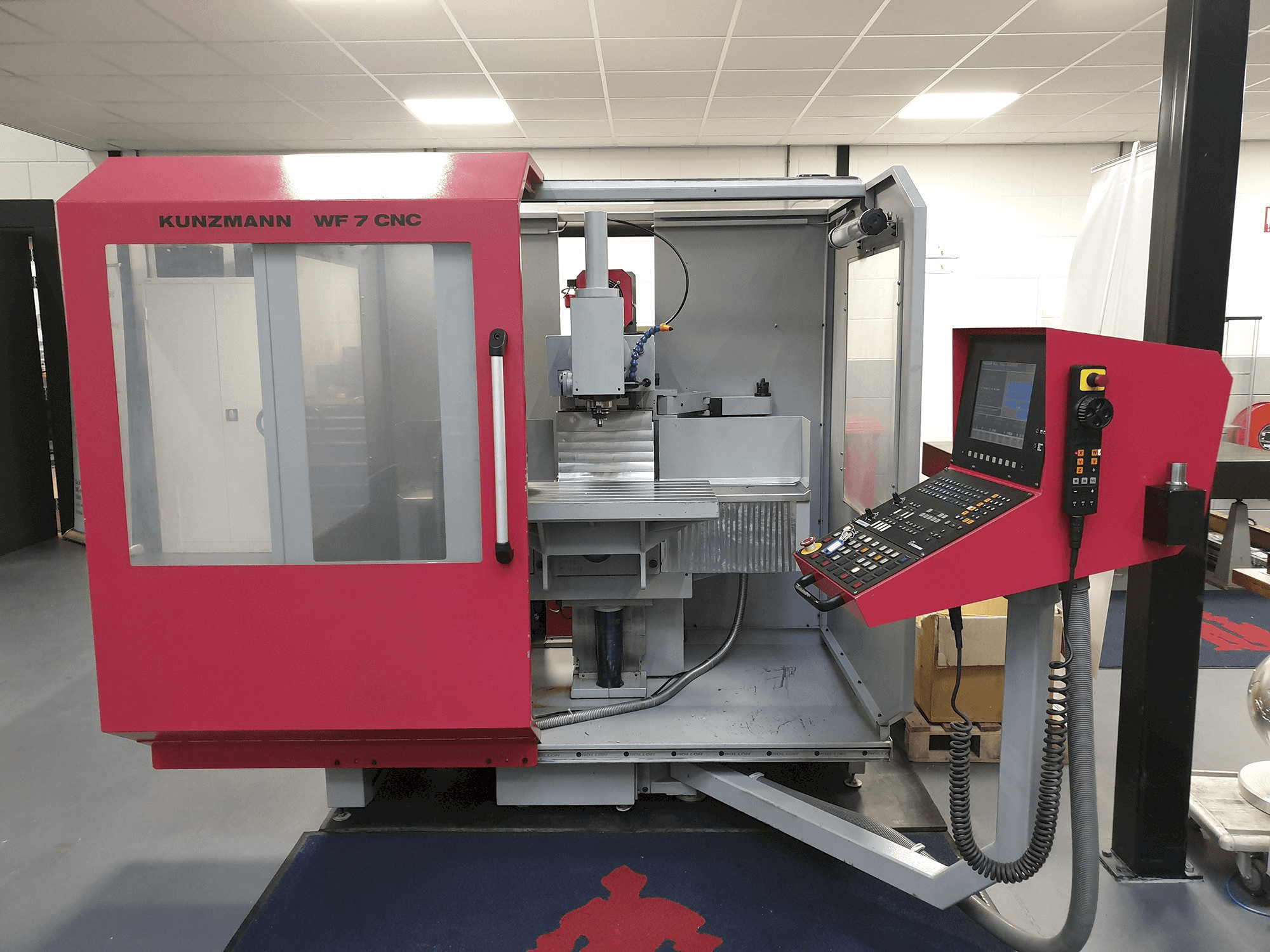

This KUNZMANN WF 7 CNC Vertical Machining Center was manufactured in the year 1999 in Germany and has a production record of 1652 working hours. It is equipped with a Heidenhain TNC 407 control unit and it presents good conditions, since its last inspection was in June 2018. It has an automatic tool catcher and centralized greasing, as well as an electronic handwheel. In the past, this machine has been producing bicycle parts as end product.
Overview
- brand: KUNZMANN
- year: 1999
- MODEL: WF 7 CNC
- production hours: 1652
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - KUNZMANN WF 7 CNC
General Data
- Measurements width: 2500 mm
- Measurements depth: 2700 mm
- Measurements height: 2200 mm
- Machine weight: 2200 kg
Control Unit
- Model: TNC 407
- Brand: HEIDENHAIN
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Workpiece
- Workpiece weight: 300 kg
Table
- Outer length: 800 mm
- Outer width: 425 mm
Media
- Main electronic connection: 380
- Power consumption: kVA
Additional Information
- Material type: Steel
- Material thickness: 28 mm
- End product: Bike parts
- Industries: Bicycle
- Technical Machine Benefits:
- - Automatic tool catcher and centralized greasing
- - Electronic handwheel
- Qualitative Machine Benefits:
- - Machine in good conditions
- - Last inspected in 2018
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
