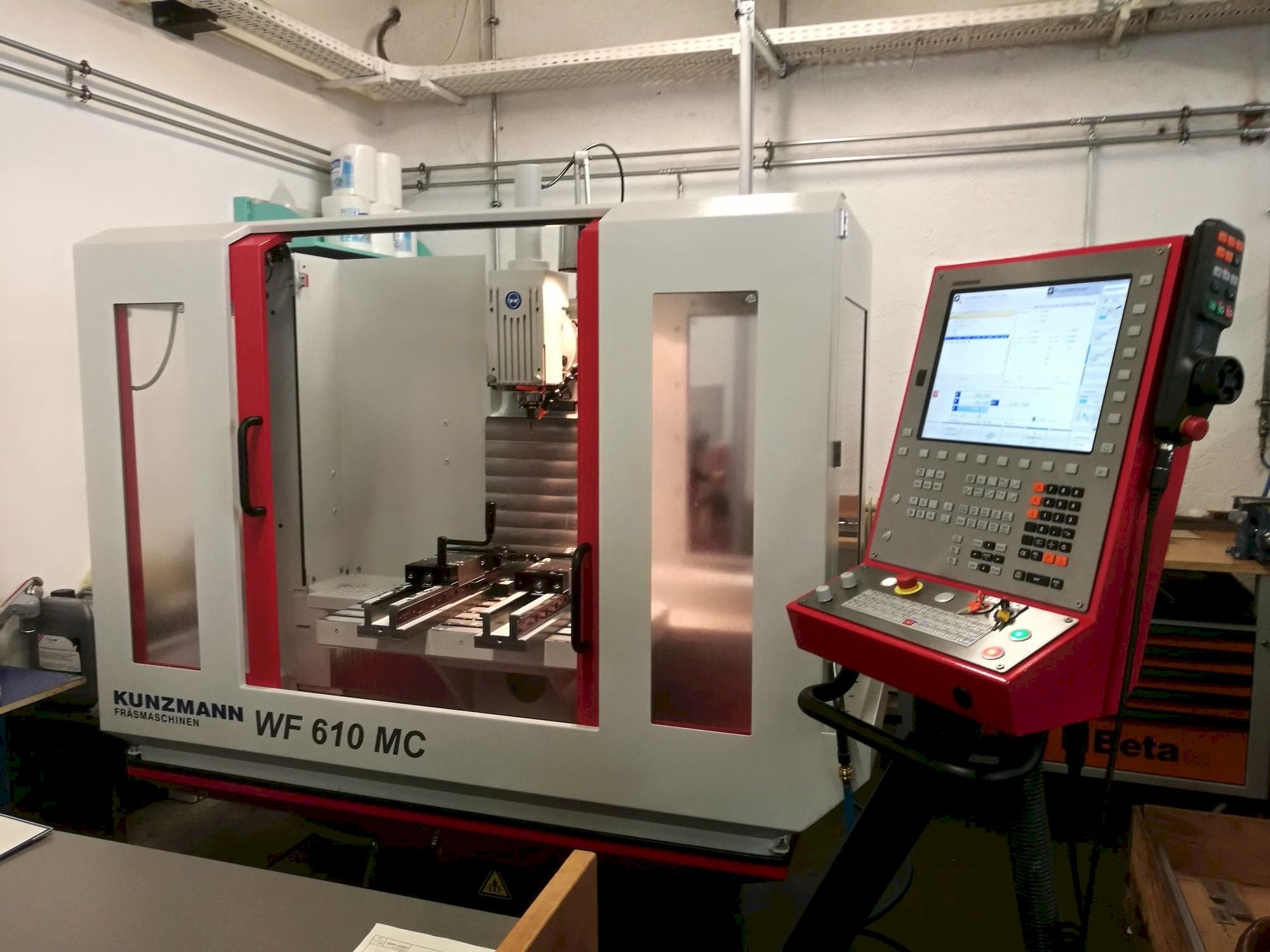

KUNZMANN WF 610 MC Milling Machine

Show in original language

This KUNZMANN WF 610 MC Milling Machine was manufactured in the year 2018 in Germany. It has a production record of only 332 working hours. It is equipped with a Heidenhain TNC620 HSCI control unit. This machine counts with a spindle speed up to 5000 rpm. It includes probes with radio function.

Overview

brand: KUNZMANN
year: 2018
MODEL: WF 610 MC
production hours: 332
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN WF 610 MC

General Data

Measurements width: 1525 mm
Measurements depth: 1857 mm
Measurements height: 2316 mm
Machine weight: 1850 kg

Control Unit

Model: TNC620 HSCI
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 800 mm
Outer width: 425 mm
Number of tslots: 6
Distance between: 63 mm

Tools

Type of tool holder: SK40

Media

Main electronic connection: 400 V
Power consumption: 23 kVA

Additional equipment

- Probes with radio function

Additional Information

Machine history

Material type: Steel
End product: Parts

Machine Benefits

Qualitative Machine Benefits:
- - Pretty new
- - Very low working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
