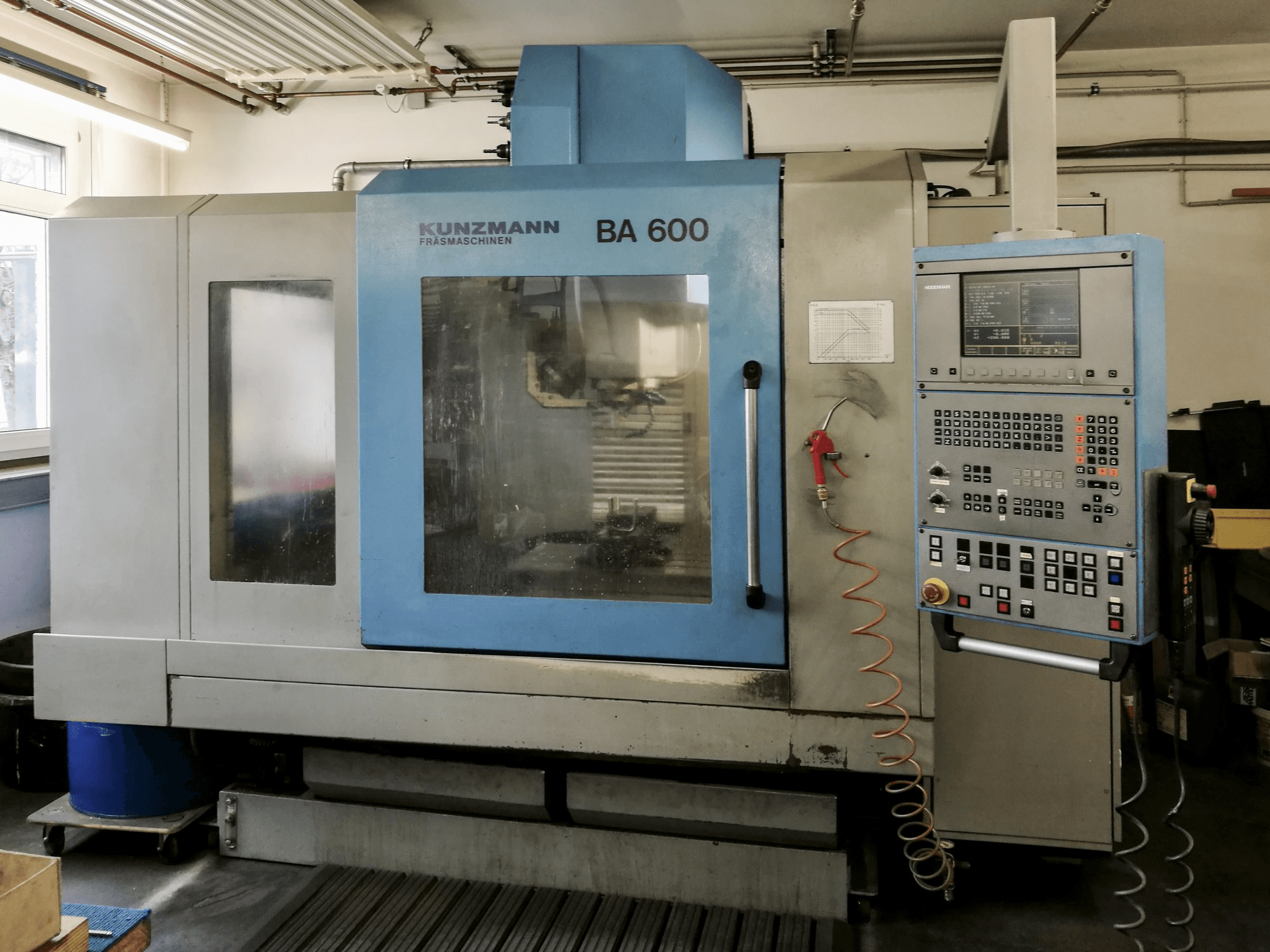

KUNZMANN BA600 Machining Center

Show in original language

This KUNZMANN BA600 Machining Center was manufactured in 1998 in Germany and has a working record of approximately 19000 production hours. This model is equipped with a HEIDENHAIN TNC 410 Control unit and comes in a good condition as several expendable parts were replaced during the last years. In the past, this machine mainly worked with steel and brass, producing flanges and other small parts for pipework systems.

Overview

brand: KUNZMANN
year: 1998
MODEL: BA600
production hours: 19000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN BA600

General Data

Measurements width: 2500 mm
Measurements depth: 1600 mm
Measurements height: 2800 mm
Machine weight: 3200 kg

Control Unit

Model: TNC 410
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 50-9000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 450 mm
Outer width: 750 mm

Tools

Max weight: 4 kg
Max tool diameter: 130 mm
Max tool length: 225 mm

Media

Power consumption: 9 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
