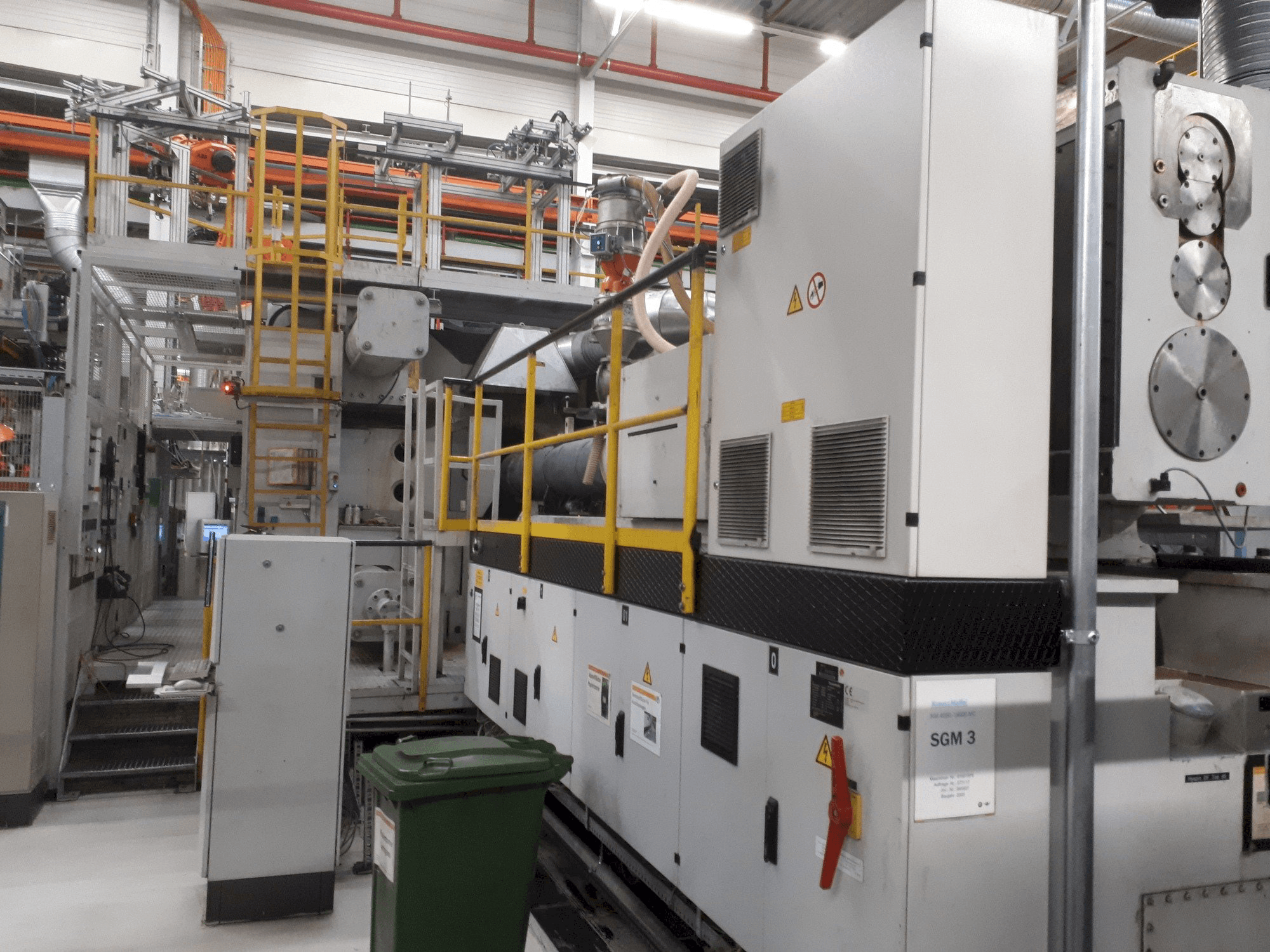

Krauss Maffei 4000-19000 MC Injection Moulding Machine

Show in original language

This Krauss Maffei 4000-19000 MC Injection Moulding Machine was built in Germany in 2003 and has been operative for 64000 hours. Equipped with a Krauss Maffei MC4 Control unit, this powerful machine can work with a clamping force of 40000 kN.

Overview

brand: Krauss Maffei
year: 2003
MODEL: 4000-19000 MC
production hours: 64000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 4000-19000 MC

General Data

Measurements width: 16295 mm
Measurements depth: 4900 mm
Measurements height: 4200 mm

Control Unit

Model: MC4
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 140 mm
Shot weight: 8825 g
Stroke volume: 9698 CM³
Injection pressure: 1960 bar

Clamping unit

Clamping force: 40000 kN
Opening stroke: 3100 mm
Max open daylight: 4200 mm
Distance between bars: 2265 mm / 1825 mm
Ejector stroke: 350 mm
Ejector force for / back: 772KN / 368 kN

Media

Main electronic connection: 400V /50Hz / 3P

Additional equipment

- 2x piece core pulls on movable plate
- 5x piece core pulls on fixed plate
- nozzle seal
- Hydraulic ejector
- Electric ejector

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robot interface euromap 67
- - Units control stations for mould heating
- - Injection embossing circuit
- - Hydraulic safety door

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
