Krauss Maffei 200-750 CX Injection Moulding Machine

Show in original language

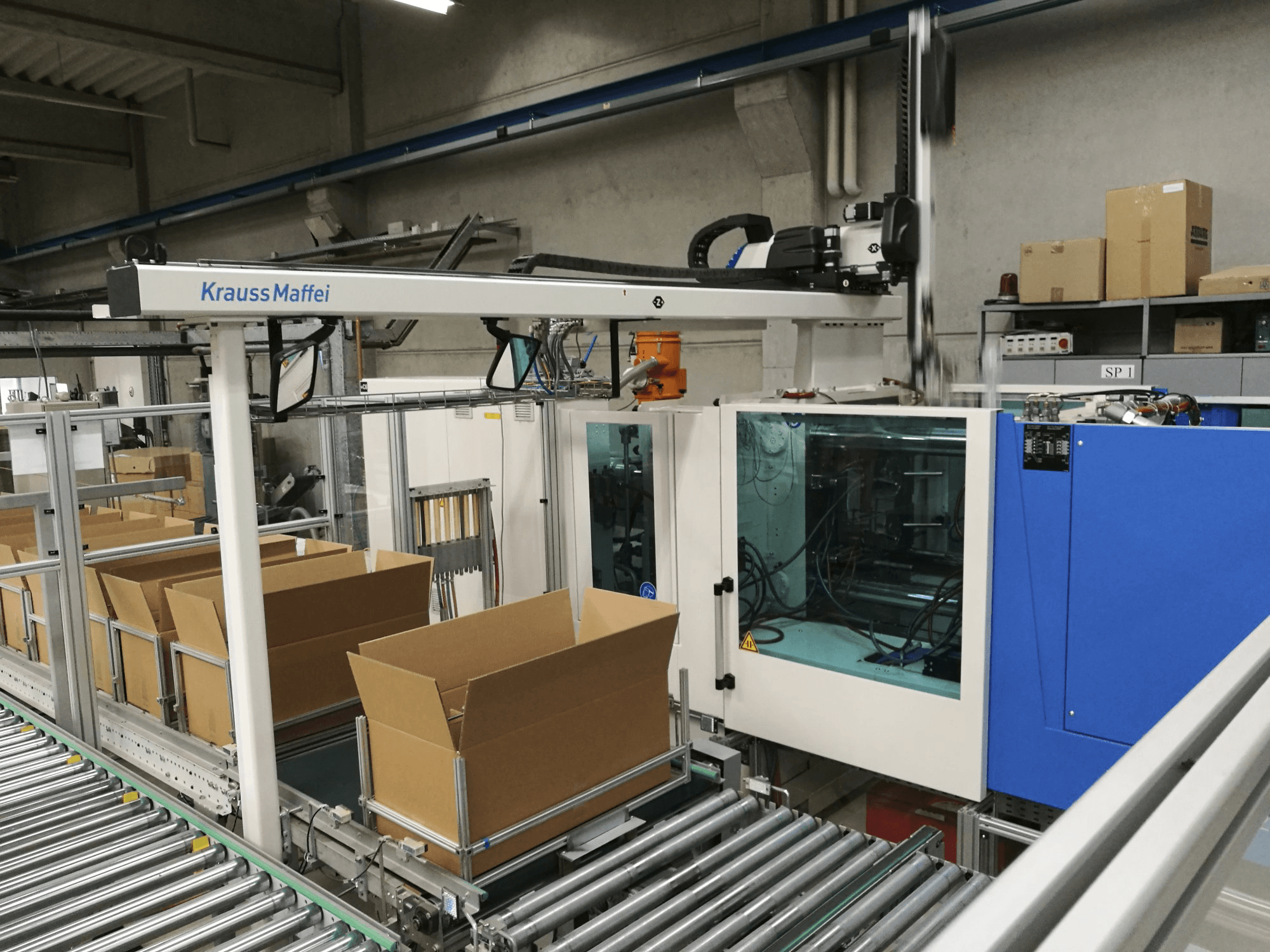

This Krauss Maffei 200-750 CX Injection Moulding Machine was built in 2014 in Germany, and has been operative for 17898 production hours ever since. Operated through a Krauss Maffei with Ethernet interface Control unit, this young equipment stands in excellent conditions thanks to regular inspections. In the past, this machine has mostly worked on plastic. The model incorporates a robot for parts handling.

Overview

brand: Krauss Maffei
year: 2014
MODEL: 200-750 CX
production hours: 17898
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 200-750 CX

General Data

Measurements width: 5939 mm
Measurements depth: 2183 mm
Measurements height: 2469 mm
Machine weight: 11500 kg

Control Unit

Interface: Ethernet
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45 mm
Shot weight: 289 g/PS
Stroke volume: 318 cm³
Injection pressure: 2336 bar
Screw speed: 340 1/min
Heating capacity: 15.5 kW
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 2000 kN
Opening stroke: 700 mm
Max open daylight: 1050 mm
Distance between bars: 560 mm
Size of mold platens: 915 x 915 mm
Ejector stroke: 200 mm
Ejector force for / back: 58 / 28 kN

Media

Main electronic connection: 400 V / 50 Hz / 3P
Power consumption: 37 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
