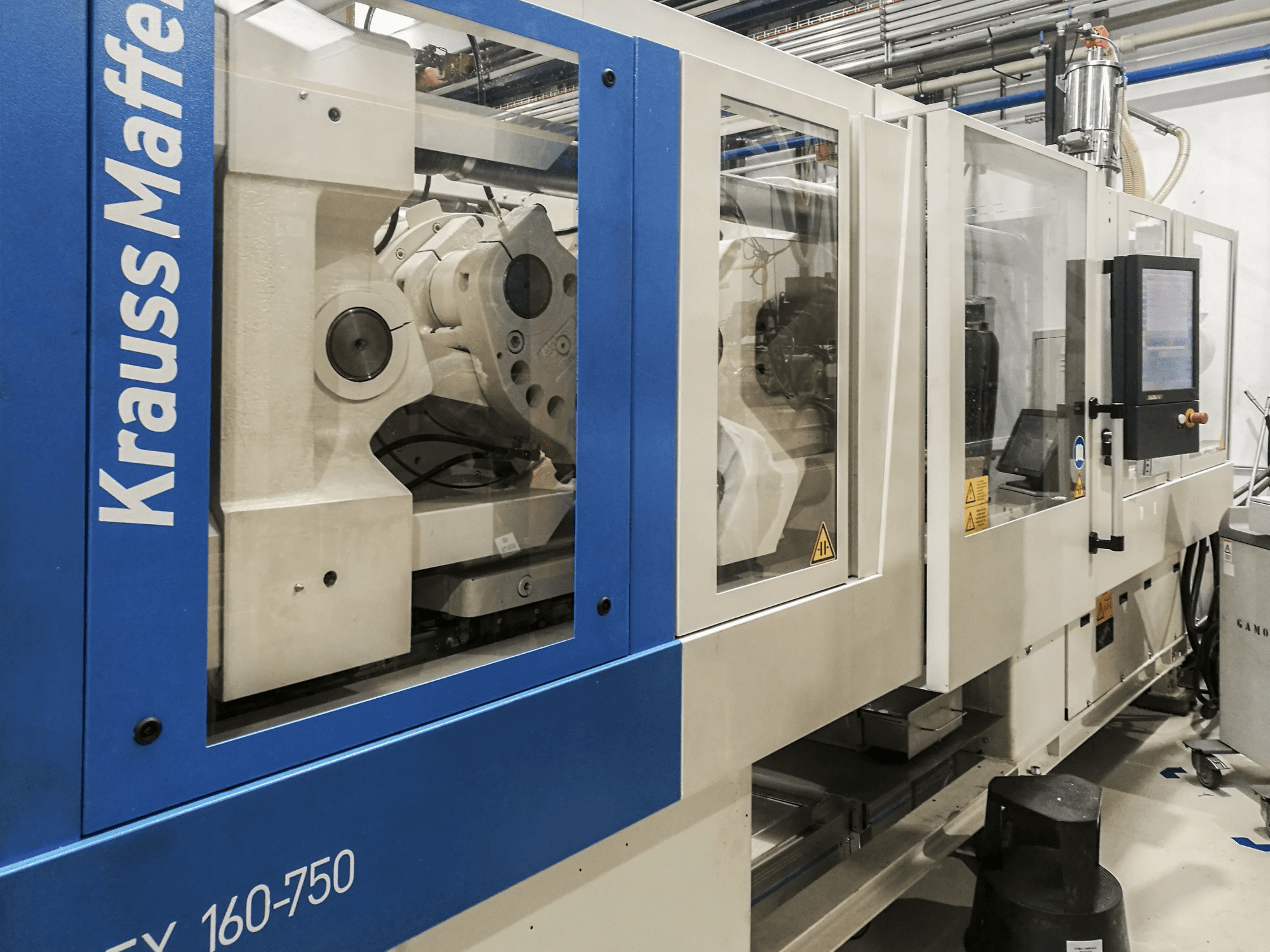

Left view of Krauss Maffei 160-750 EX Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 160-750 EX

Krauss Maffei - 160-750 EXES-INJ-KRA-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 160-750 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-750 EX Injection Moulding Machine was manufactured in Germany in 2015 and has been productive for 20920 working hours ever since. Operated through a Krauss Maffei MC6 Control unit, the machine has been working mainly with polyethylene in the past, producting plastic caps. The equipment stands in excellent conditions due to regular maintenance, and it has been levelled every 6 months. For this machine a warranty on spare parts is included.

Overview

brand: Krauss Maffei
year: 2015
MODEL: 160-750 EX
production hours: 20920
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-750 EX

General Data

Measurements width: 6300 mm
Measurements depth: 1600 mm
Measurements height: 2300 mm
Machine weight: 12700 kg

Control Unit

Model: MC6
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 50 mm
Shot weight: 357,6 g/PS
Stroke volume: 393 cm³
Injection pressure: 1982 bar
Plasticizing rate max.: 62,2 g/s PS
Screw speed: 458 1/min
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Additional equipment

- (Warranty on Spare Parts included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
