Krauss Maffei - 150-1000 C1DE-INJ-KRA-2000-00010

Name: Krauss Maffei 150-1000 C1
Brand: Krauss Maffei
SKU: DE-INJ-KRA-2000-00010
Price: 698600 INR
Availability: InStock

Rs. 698,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

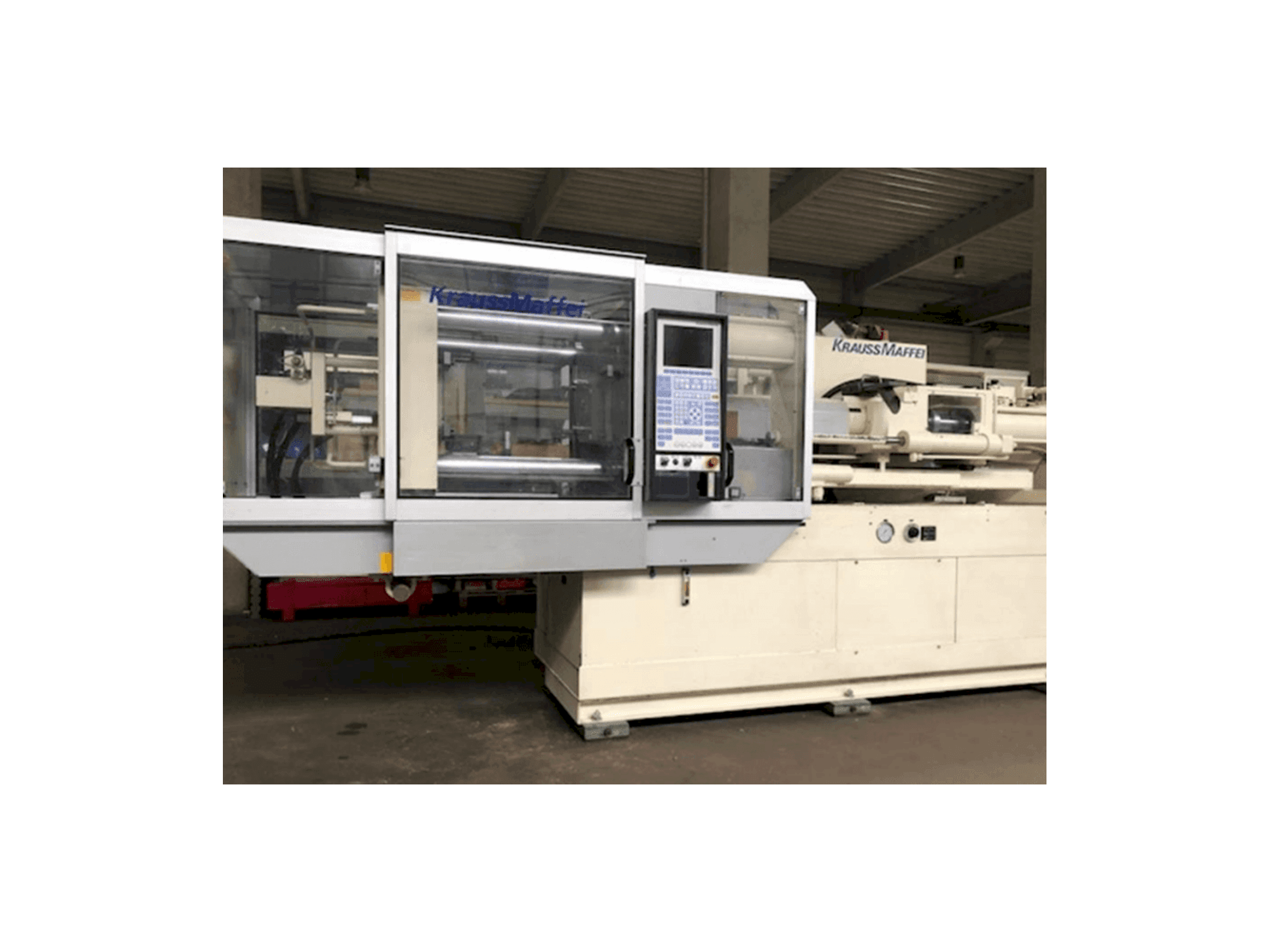

Used Injection moulding machine Krauss Maffei 150-700 C1 - 2000 - for sale | gindumac.com

Show in original language

This KRAUSS MAFFEI 150-700 C1 Injection moulding machine was manufactured in 2000 in Germany. This machine offers a clamping force of 1500 kN and features a mold mounting platen sized at 780 mm x 790 mm. With a tool opening stroke of 600 mm and an opening width of 900 mm. Screw diameter options include 45 mm, 50 mm, and 55 mm, while injection pressures range from 1564 bar to 2336 bar. The screw speed reaches up to 356 rpm, with a dry running speed of 1700 l/min. It requires approximately 345 liters of oil filling. Contact us anytime for further information.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 150-1000 C1
production hours: 47059
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Krauss Maffei 150-1000 C1

General Data

Measurements width: 1510 MM
Measurements depth: 4660 MM
Measurements height: 2190 MM
Machine weight: 6300 KG

Main drive

Stroke: 150mm

Injection Unit

Screw diameter: 50mm
Injection pressure: 2336/1892/1564 bar

Clamping unit

Clamping force: 1500 KN
Opening stroke: 600
Size of mold platens: 780 x 790

Additional equipment

- hydraulic ejector
- injection unit SP1000
- L/D ratio 22mm
- injection pressure 2304 bar
- stroke/D ratio 4.4 bar / stroke volume 432cm³
- Shot weight in PS 393g
- screw drive power 31 kW
- Nozzlealage force 110 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Opening width: 900mm / size of the mould mounting platen 780 x 790mm
- - Dry running speed: 1700l/min / mould opening stroke 600mm / mould mounting height 300mm
- - Oil filling: approx. 345l
- - Screw speed standard/ze 255/356
- - Screw speed nom. /max. 256/410
- - Spray pressure: 2304
- - Clamping force 1500 kn
- - Opening width 900mm
- - Force forwards/backwards 22/10 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
