➤ Used KOVOSVIT MAS MCV 1000 Speed - Vertical Machining Center

Show in original language

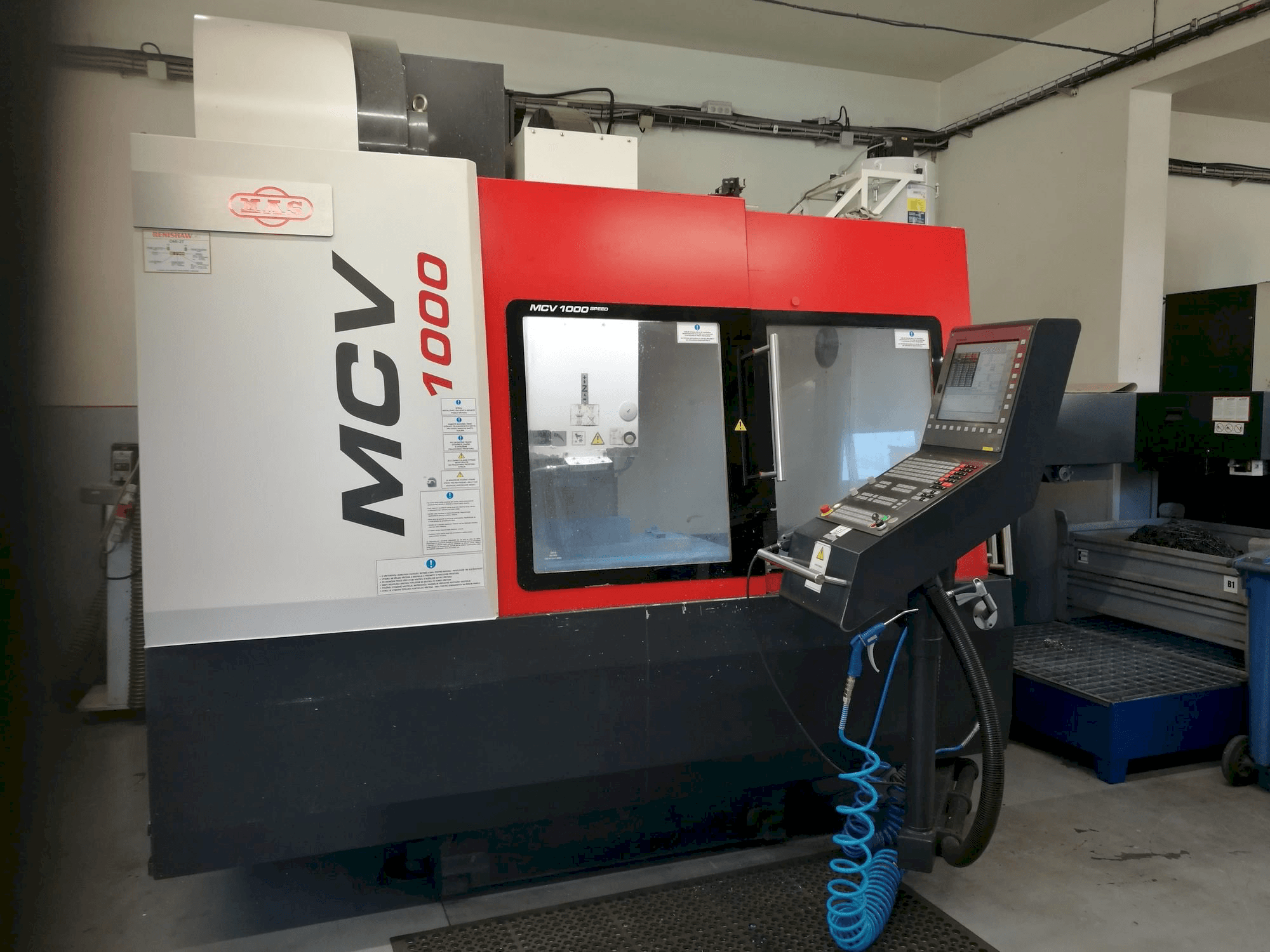

This KOVOSVIT MAS MCV 1000 Speed Vertical Machining center was made in the year 2017 in Cezch Republic and has 10149 production hours, of which 5083 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: KOVOSVIT MAS
year: 2017
MODEL: MCV 1000 Speed
production hours: 10149
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1000 Speed

General Data

Measurements width: 4600 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 11500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece z: 520 mm
Workpiece weight: 1200 kg

Table

Outer length: 1300 mm
Outer width: 670 mm
TSlots size: 5
Distance between: 125 mm

Media

Power consumption: 55 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 32 / 48 kw
- - Spindle torque (s1/s6 - 40%) 130 / 200 nm
- - Work feed x, y, z 40000 mm. Min-1
- - Rapid feed x, y, z 40 m. Min-1
- - Cooling through spindle
- - 2 probes - 1x workpiece , 1x tool probe
- - Automatic lubrication of moving parts
- - Direct measuring system
- - Cooling aggregate for external cooling
- - Thermal compensation
Qualitative Machine Benefits:
- - Machine with low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
