KOVOSVIT MAS - MCV 1000 QUICKPL-MIL-KOV-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

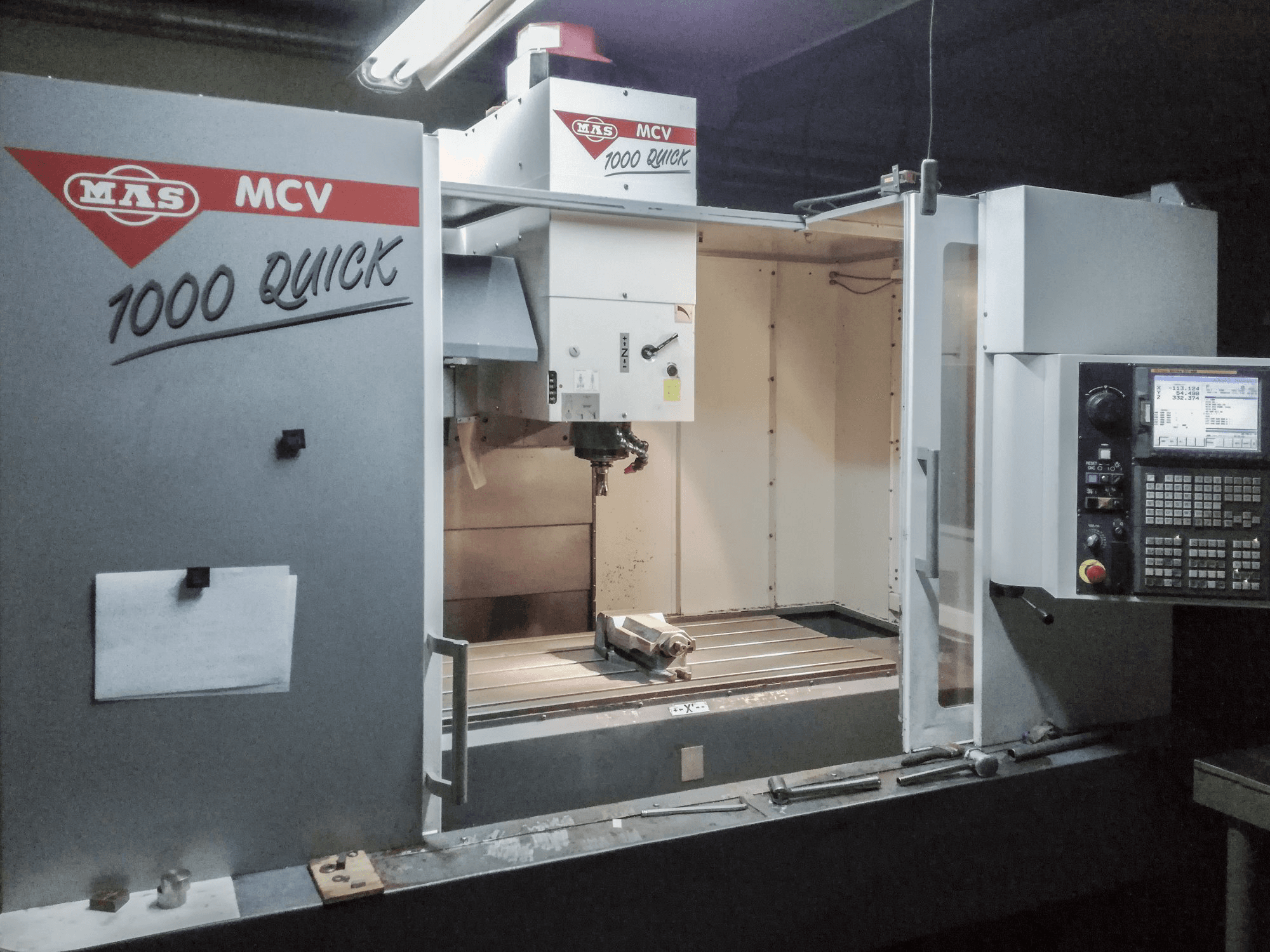

KOVOSVIT MAS MCV 1000 QUICK Milling Machine

Show in original language

This KOVOSVIT MAS MCV 1000 QUICK Milling Machine was manufactured in 2005 in the Czech Republic and has a working record of only 7428 production hours. Equipped with a FANUC 21i-MB Control unit this machine allows to process big work pieces and comes in a good working condition as it was little used and got its spindle bearing replaced in September 2017.

Overview

brand: KOVOSVIT MAS
year: 2005
MODEL: MCV 1000 QUICK
production hours: 7428
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - KOVOSVIT MAS MCV 1000 QUICK

General Data

Measurements width: 3080 mm
Measurements depth: 2700 mm
Measurements height: 2940 mm
Machine weight: 5500 kg

Control Unit

Brand: FANUC
Model: 21i-MB

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 660 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1300 mm
Outer width: 600 mm

Tools

Max weight: 6 kg
Max tool diameter: 100 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 40 kVA

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
