KOVOSVIT MAS MCV 1000 Power

Show in original language

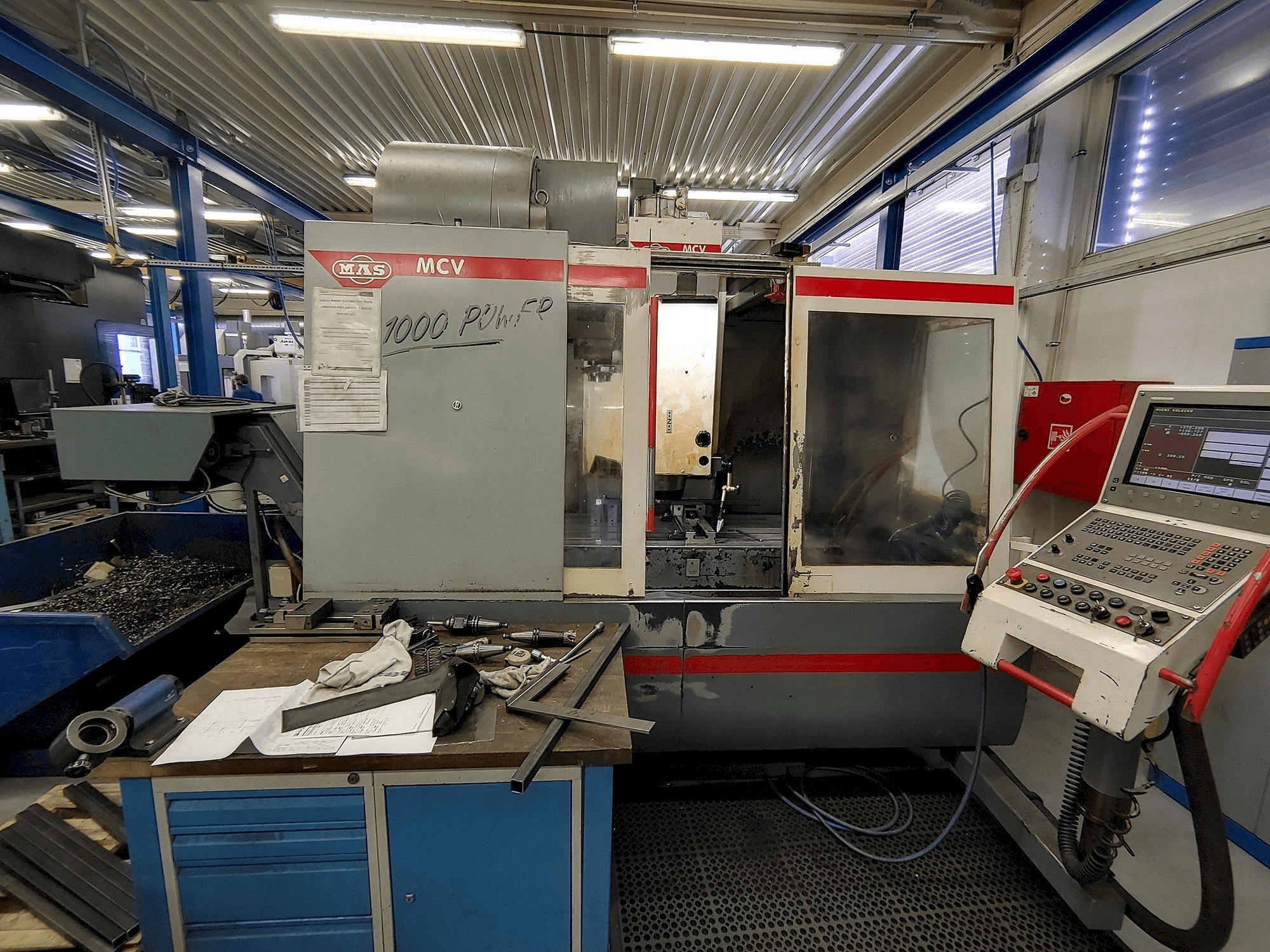

This KOVOSVIT MAS MCV 1000 Power Milling Machine was built in the year 2003 in the Czech Republic. It has a record of 63773 hours of which 26369 are working time. This 3 axis machine is equipped with a Heidenhain iTNC 530 Control unit. It can work with a spindle speed up to 8000 rpm. This machine is in very good conditions and it has new spindle bearings.

Overview

brand: KOVOSVIT MAS
year: 2003
MODEL: MCV 1000 Power
production hours: 63773
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1000 Power

General Data

Measurements width: 4600 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 10500 Kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 1200 Kg

Table

Outer length: 1300 mm
Outer width: 670 mm

Tools

Slots in storage: 24
Type of tool holder: ISO 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 28 / 43 kw
- - Cooling through spindle 20 bar
Qualitative Machine Benefits:
- - Very good condition of the machine
- - With new spindle bearings

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
