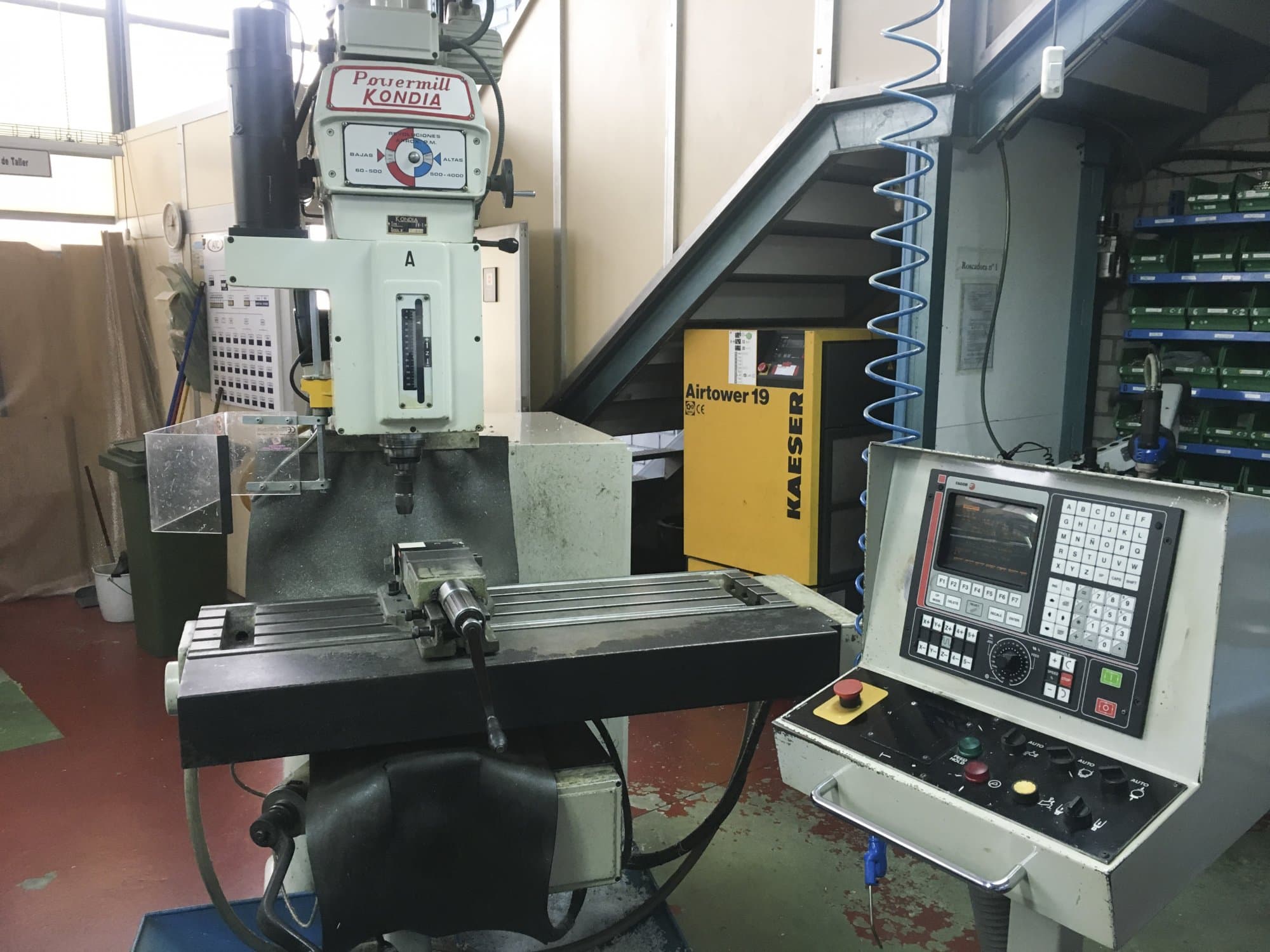

KONDIA Powermill FV-1 CNC Milling Machine

Show in original language

This KONDIA Powermill FV-1 CNC Milling Machine from 1999 has a production record of only 32640 hours. Operated through a Fagor 8025 Control unit, the equipment stands out for its perfect condition: the majority of the production was performed with nonferrous materials, thus ensuring a longer machine lifespan.

Overview

brand: KONDIA
year: 1999
MODEL: Powermill FV-1 CNC
production hours: 32640
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - KONDIA Powermill FV-1 CNC

General Data

Measurements width: 1700 mm
Measurements depth: 2400 mm
Machine weight: 1550 kg

Control Unit

Model: 8025
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/min
Spindle motor power: 2.23 kW
Tool taper: ISO 30

Movement

X-AXIS Movement: 600 mm
X-AXIS Rapid traverse: 1.5 m/min
Y-AXIS Movement: 350 mm
Y-AXIS Rapid traverse: 1.5 m/min
Z-AXIS Movement: 419 mm
Z-AXIS Rapid traverse: 1.5 m/min

Table

Outer length: 1070 mm
Outer width: 300 mm
TSlots size: 16 mm
Number of tslots: 3

Media

Main electronic connection: 220 V / 50 Hz
Power consumption: 2.2 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
