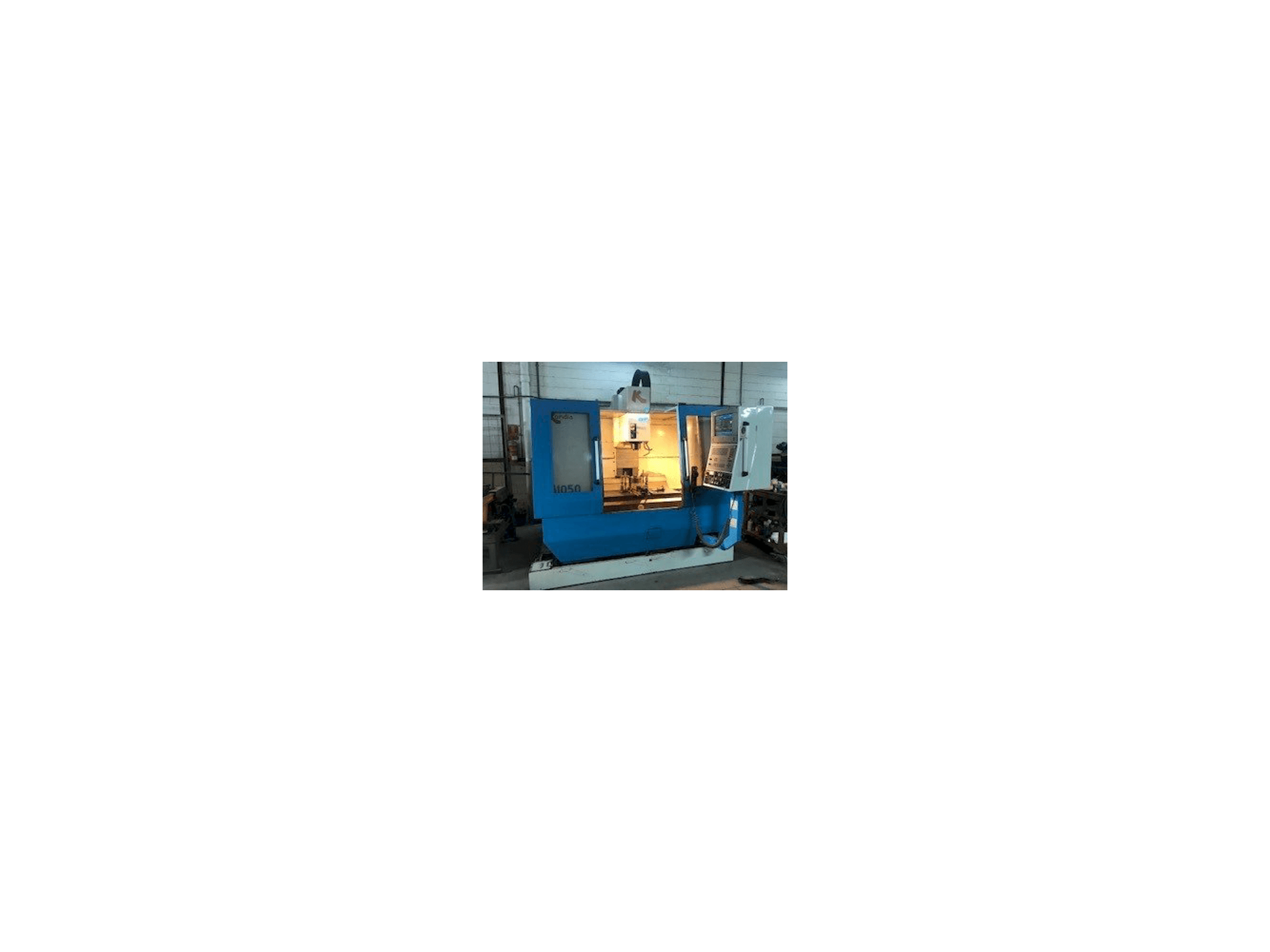

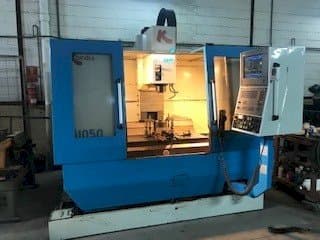

KONDIA B-1050 Vertical machining center

Show in original language

This KONDIA B-1050 Vertical machining center was manufactured in Spain in 1999. It has 4945 production hours. It is equipped with a Heidenhain TNC 426 control unit. This 3 axis machine works with a spindle speed up to 6000 rpm. It has little working hours. Machine in perfect condition.

Overview

brand: KONDIA
year: 1999
MODEL: B-1050
production hours: 4945
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KONDIA B-1050

General Data

Machine weight: 5100 KG

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 450 KG

Table

Outer length: 1200 mm
Outer width: 500 mm
Number of tslots: 5
Distance between: 18 mm

Tools

Type of tool holder: ISO 40

Media

Main electronic connection: 380V / 50Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Little working hours
- - In perfect condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
