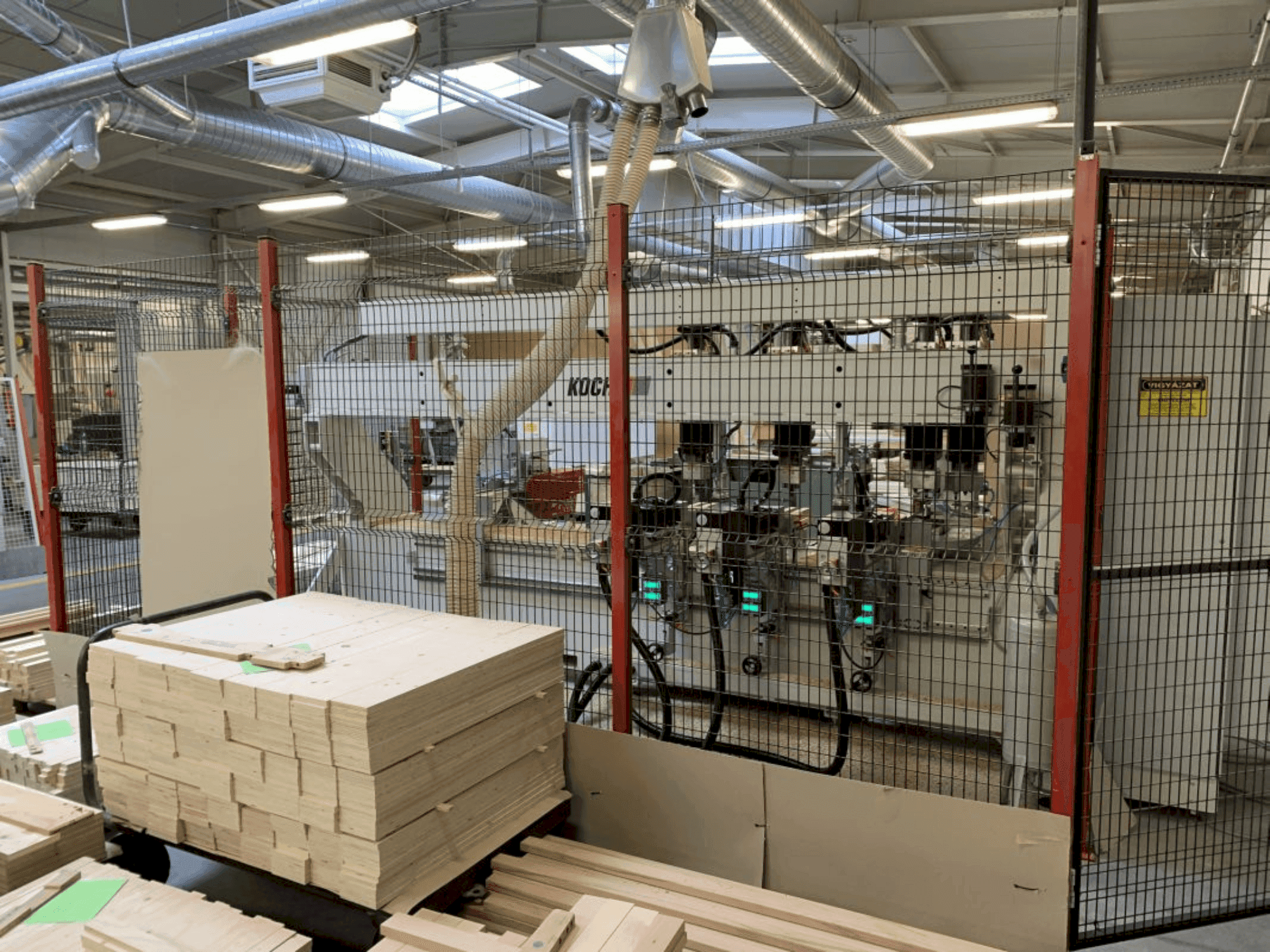

This 4-axis KOCH BL 2500 NC select line was manufactured in 2019. Ideal for multi-spindle drilling, this machine ensures precision and efficiency in your production line. Consider the opportunity to buy this KOCH BL 2500 NC select line multi-spindle drilling machine. Contact us for more information.
Overview
- brand: KOCH
- year: 2019
- MODEL: BL 2500 NC select line
- application type: Boring & Drilling (Wood)
- Location: Germany
- machine type: Multi-Spindle Drilling Machine
- availability: Immediately
- control unit brand: BECKHOFF
Technical Information - KOCH BL 2500 NC select line
Control Unit
- Brand: BECKHOFF
- Model: C6920 Industrial PC
Main drive
- Number of axis: 4
Additional equipment
- - Magazine Loading: Manual insertion with workpiece return / Servo motor-driven workpiece insertion / Clamping table for frame parts with clamping cylinders and templates
Additional Information
- Technical Machine Benefits:
- - Dimensions: length: 150 - 2500 mm width: 20 - 300 mm thickness: 10 - 50 mm
- - Material: solid wood
- - Positioning control: koch numeric basic 1
- - Control specifications: beckhoff c6920 industrial pc / intel® celeron® 2. 2ghz cpu/2. 5“ 320gb hdd/15“ touch panel/operating system: windows 7/user interface: english/input of all machine commands via the touch panel/software prepared for online connection via usb/online connection to be set up by the customer
- - Rotary assemblies: 4 with quick adjustment for vertical drilling units, fixed stops at 0° and 90°
- - Drilling units: 3 horizontal longitudinal drilling units with 160 mm width, 2 kw motor, and lcd readouts for x and z adjustments/ 4 vertical drilling units, movable in x and y axes with lcd readouts, equipped with vertical clamping cylinder
- - Electrical: 400 v, 50 hz, 3 phases, voltage fluctuations max +6% to -10%
- - Air connection: 7 bar
- - Extraction air speed: min 30 m/sec
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
