Knuth RSM 1500 C Grinding Machine

Show in original language

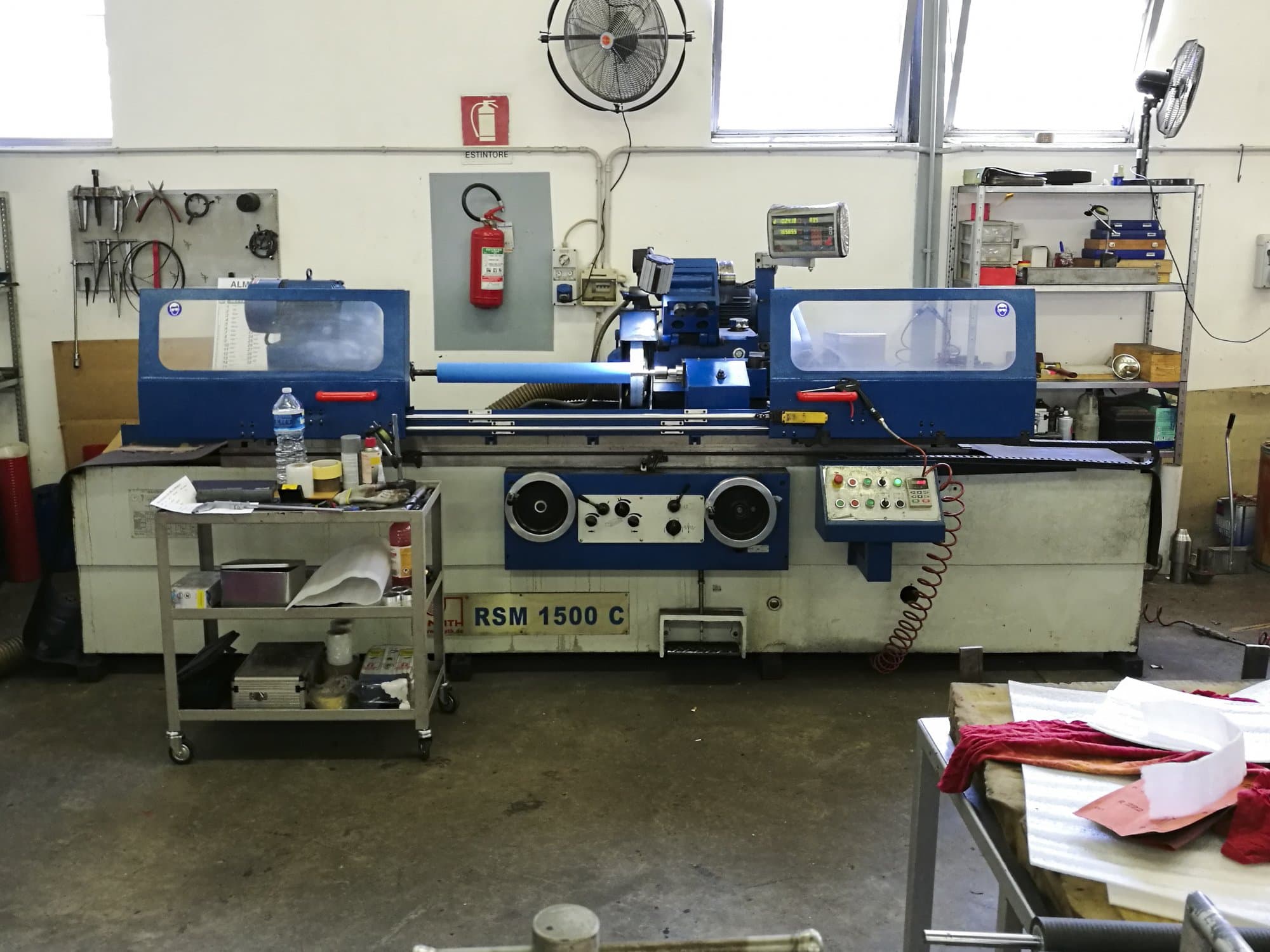

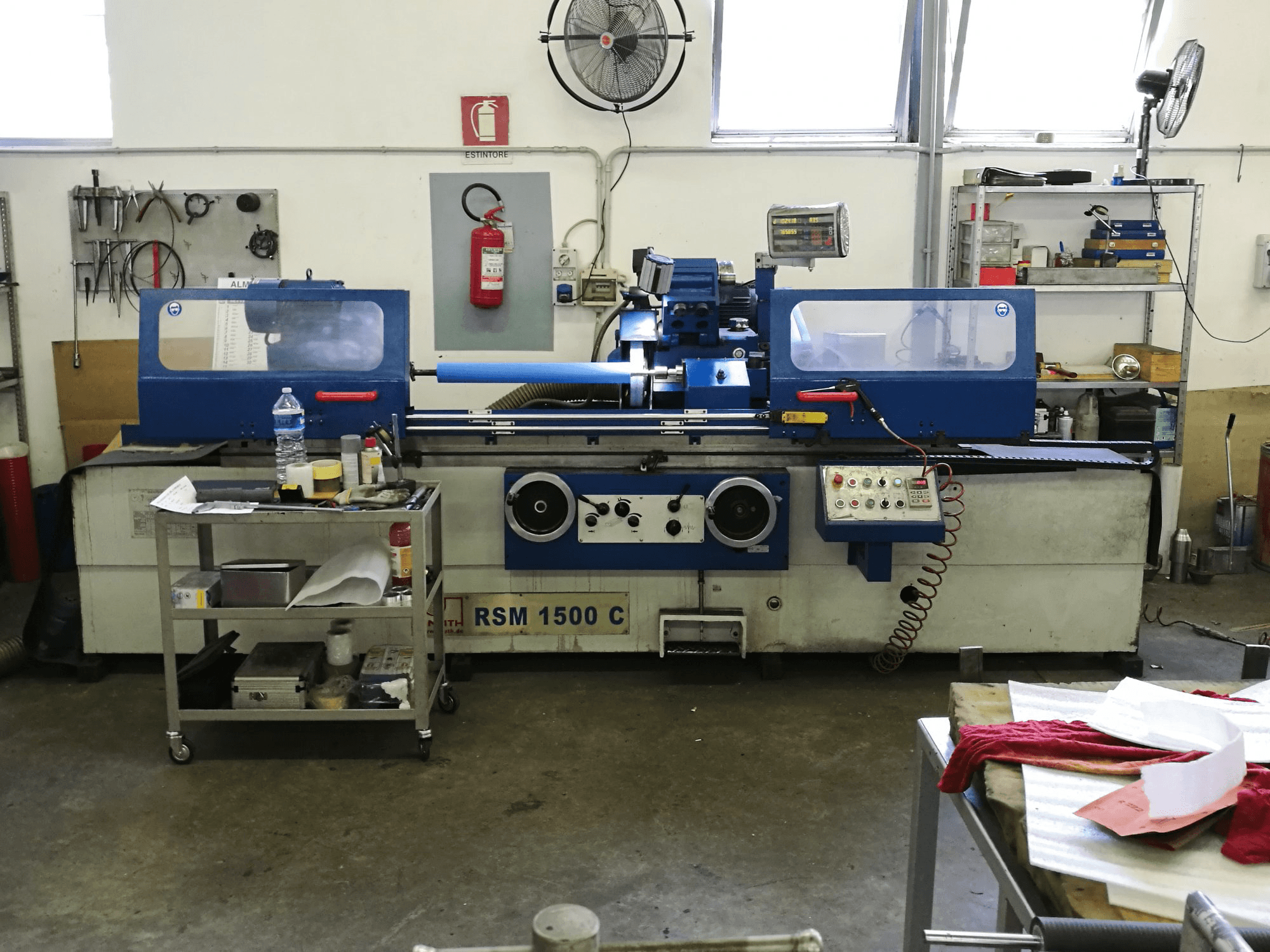

This Knuth RSM 1500 C Grinding Machine was manufactured in 2014 and has worked during only 700 production hours since then. This machine, equipped with a Knuth X.pos 3.1 Control unit, allows interior grinding processes as well, and comes with safety guards and different grinding wheels as additional equipment. This RSM 1500 C stands in a very good condition, due to its low working hour count and having worked exclusively on 0.3 mm rubber rolls.

Overview

brand: KNUTH
year: 2014
MODEL: RSM 1500 C
production hours: 700
application type: Grinding
Location: Italy
machine type: Cylindrical Grinding Machine
availability: Sold

Technical Information - KNUTH RSM 1500 C

General Data

Measurements width: 4605 mm
Measurements depth: 1810 mm
Measurements height: 1515 mm
Machine weight: 4300 kg

Control Unit

Model: X.pos 3.1

Main drive

Spindle speed range: 0-1670 1/min
Tool taper: MT 4

Movement

X-AXIS Working Feed: 0.1-4 m/min

Workpiece

Workpiece weight: 150 kg

Media

Main electronic connection: 400 V / 50-60 Hz
Power consumption: 9.5 kW

Additional equipment

- Safety guards
- Grinding wheels

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
