Kitamura Mytrunnion 5 Vertical Machining Center

Show in original language

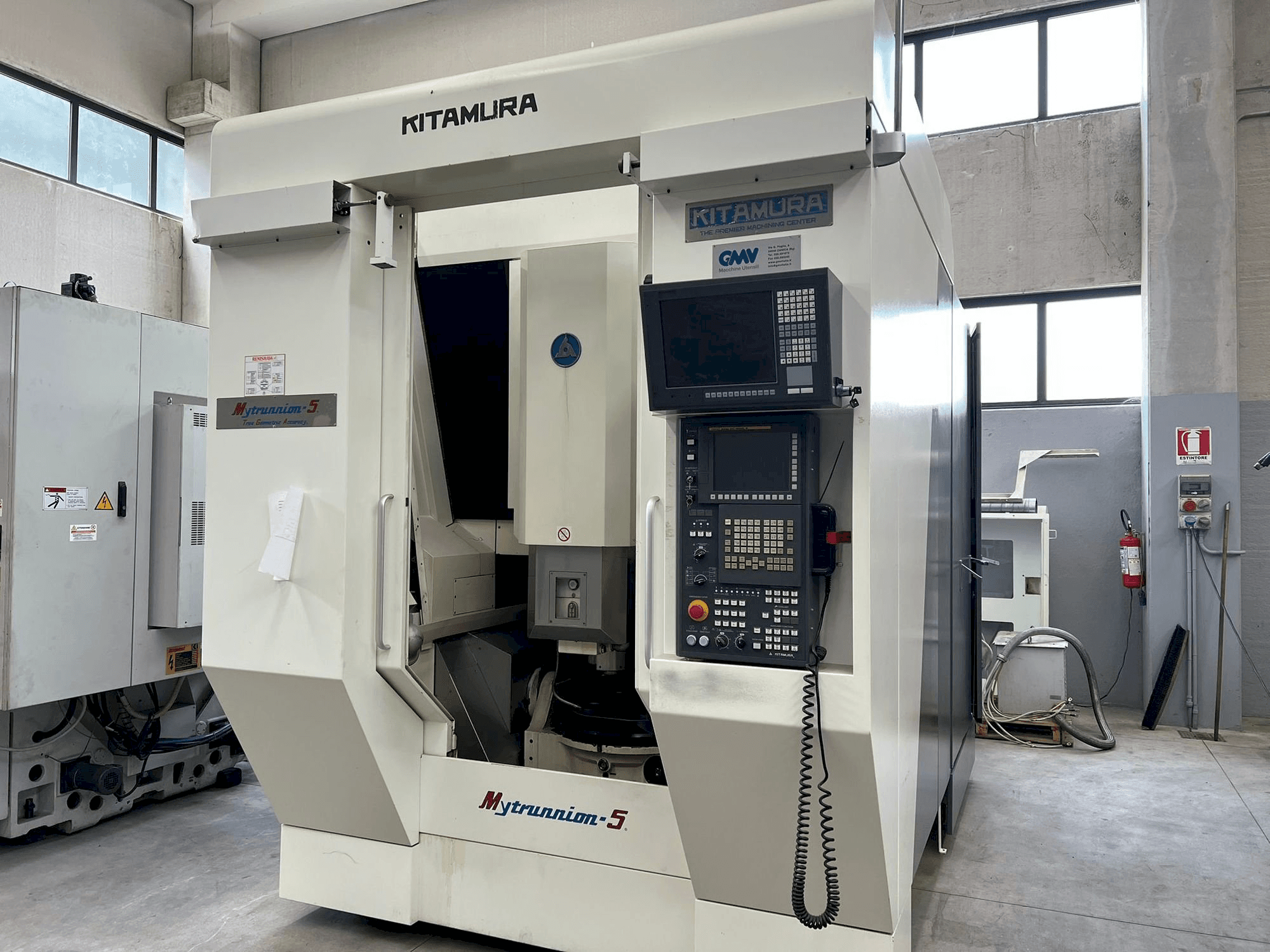

This Kitamura Mytrunnion 5 Vertical Machining Center was manufactured in Japan in 2014. This 5 axis machine is operated through a Fanuc 30i model B control unit. This machine can work with a spindle speed range up to 20000 rpm and counts with a table size of 630 x 630 mm. Includes a tools magazine of 100 positions.

Overview

brand: Kitamura
year: 2014
MODEL: Mytrunnion 5
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Mytrunnion 5

General Data

Machine weight: 17400 Kg

Control Unit

Model: 30i
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 815 mm
X-AXIS Rapid traverse: 50 mm
Y-AXIS Movement: 745 mm
Y-AXIS Rapid traverse: 50 mm
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 25 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Table load: 400 kg

Additional equipment

- Chip evacuator
- Refrigeration A.P. through spindle
- Remote jog handle
- Renishaw probe
- Optical scales

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tools magazine 100 positions
- - Table inclination + 30 ° / -120 °
- - Rotation ± 360 °

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
