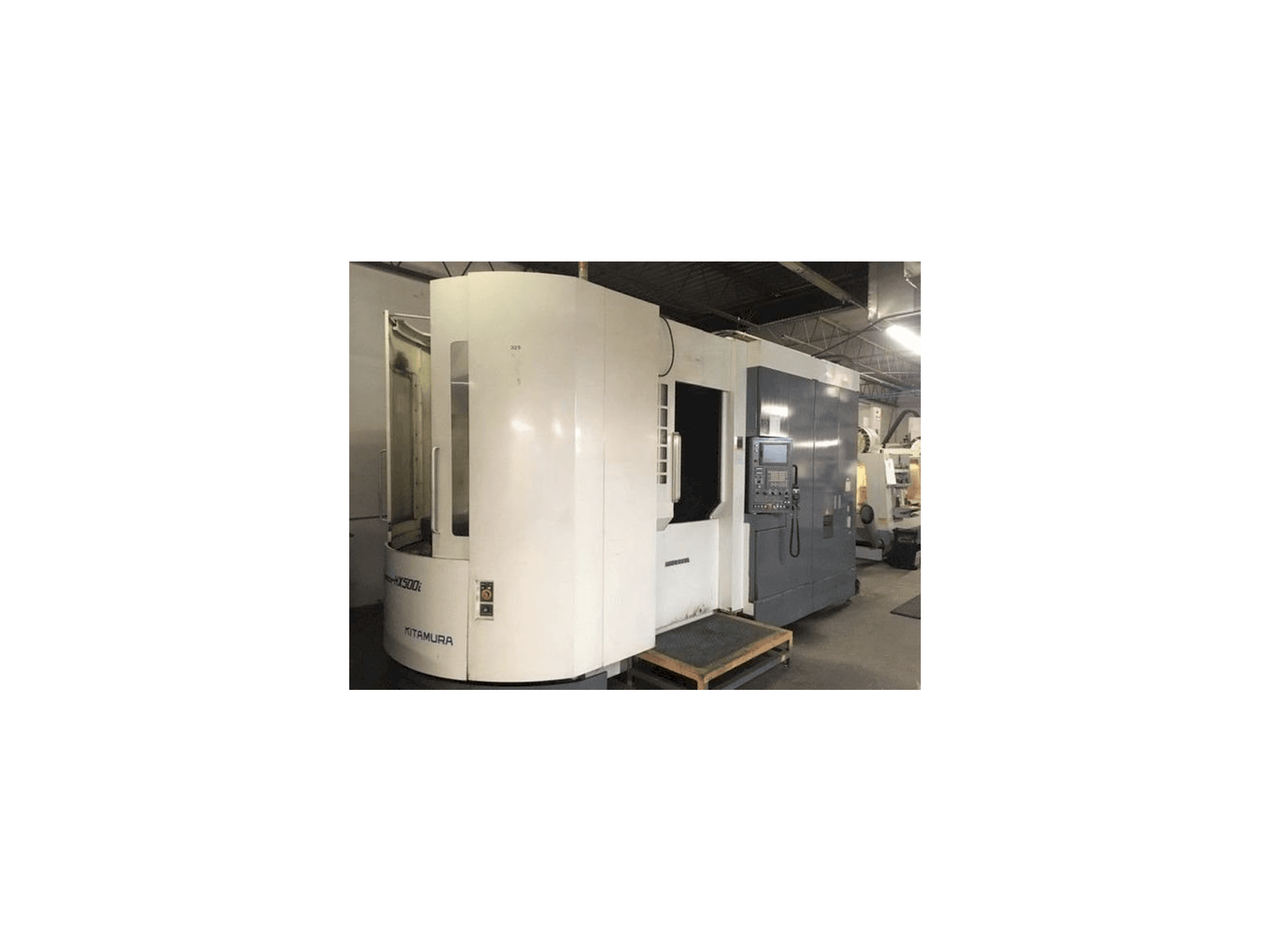

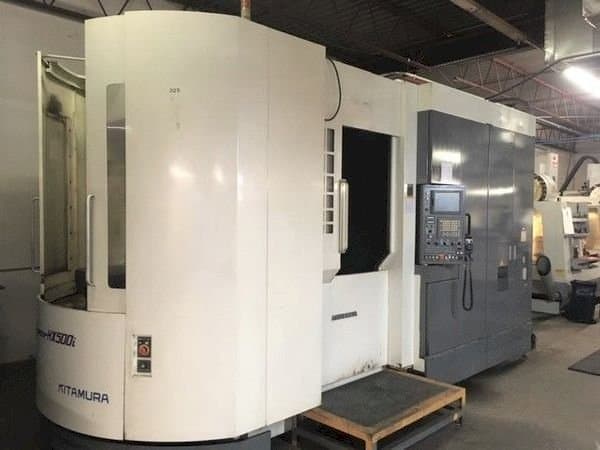

Kitamura Mycenter HX500i Horizontal Machining Center

Show in original language

This Kitamura Mycenter HX500i Horizontal Machining Center was manufactured in Japan in 2006. This machine is operated through a FANUC Series 16 I control unit. This 4 axis machine can work with a spindle speed up to 12000 rpm and counts with a table size of 500 x 500 mm. The table 4th axis in continuous.

Overview

brand: Kitamura
year: 2006
MODEL: Mycenter HX500i
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Mycenter HX500i

Control Unit

Model: Series 16 I
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 870 mm
X-AXIS Rapid traverse: 60000
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 60000
Z-AXIS Movement: 930 mm
Z-AXIS Rapid traverse: 6000

Table

Outer length: 500 mm
Outer width: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface (spindle)tapped holes
- - Max weight piece (spindle)1500
- - Spindle connection (spindle) iso 50
- - Number of tools (atc magazine) 90
- - Tool selection method (atc magazine)
- - Fixed max weight tool (atc magazine) 30 k
- - Pressure (coolant) 50 bar
- - Refrigerant tank (refrigerant) 500l
- - Table 4th axis in continuous

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
