- Kitamura Mycenter HX250 Horizontal Machining Center

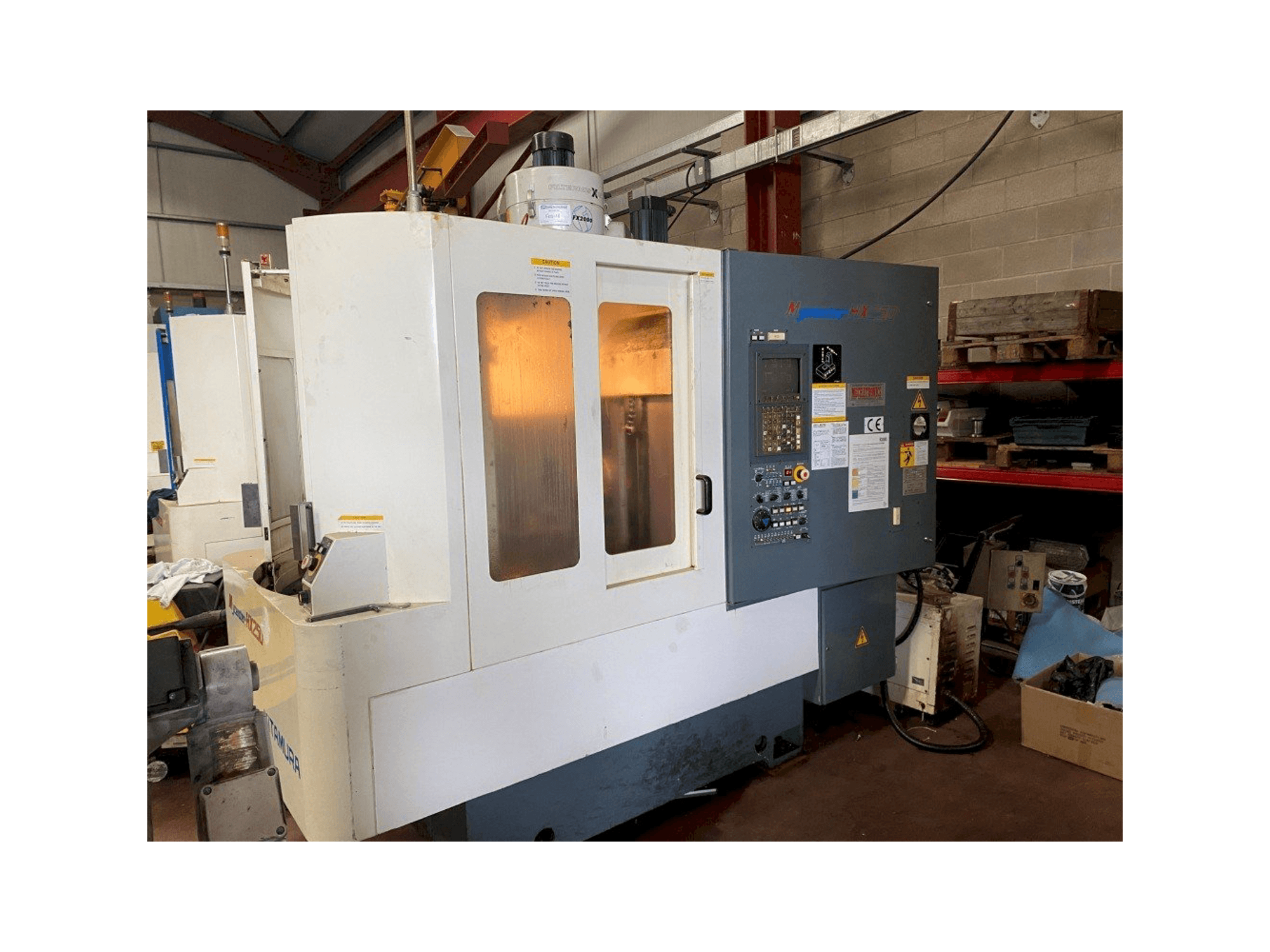

This Kitamura Mycenter HX250 Horizontal Machining Center was built in the year 2000 in Japan. This machine can perform with a spindle speed up to 12000 rpm. A Filtermist FX2000 and 2 Pallets are included.
Overview
- brand: Kitamura
- year: 2000
- MODEL: Mycenter HX250
- application type: Milling
- Location: Ireland
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Yasnac
Technical Information - Kitamura Mycenter HX250
General Data
- Measurements width: 2330 mm
- Measurements depth: 2950 mm
- Measurements height: 2470 mm
- Machine weight: 4500 kg
Control Unit
- Brand: Yasnac
- Model: i80
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 305 mm
- Y-AXIS Movement: 305 mm
- Z-AXIS Movement: 330 mm
- B-AXIS Movement: 0.001-360 ° MM
Workpiece
- Workpiece drm: 350 mm
- Workpiece z: 400 mm
- Workpiece weight: 100 kg
Table
- Outer length: 254 mm
- Outer width: 254 mm
Tools
- Slots in storage: 24
- Max weight: 2 kg
- Max tool diameter: 50 mm
- Max tool length: 200 mm
- Type of tool holder: BT30
Media
- Main electronic connection: 380 V
- Power consumption: 8 kVA
Additional equipment
- - Filtermist FX2000
- - 2 x Pallets
Additional Information
- Material type: Steel
- End product: Machined components
- Technical Machine Benefits:
- - Compact footprint
- Qualitative Machine Benefits:
- - Well maintained machine
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
