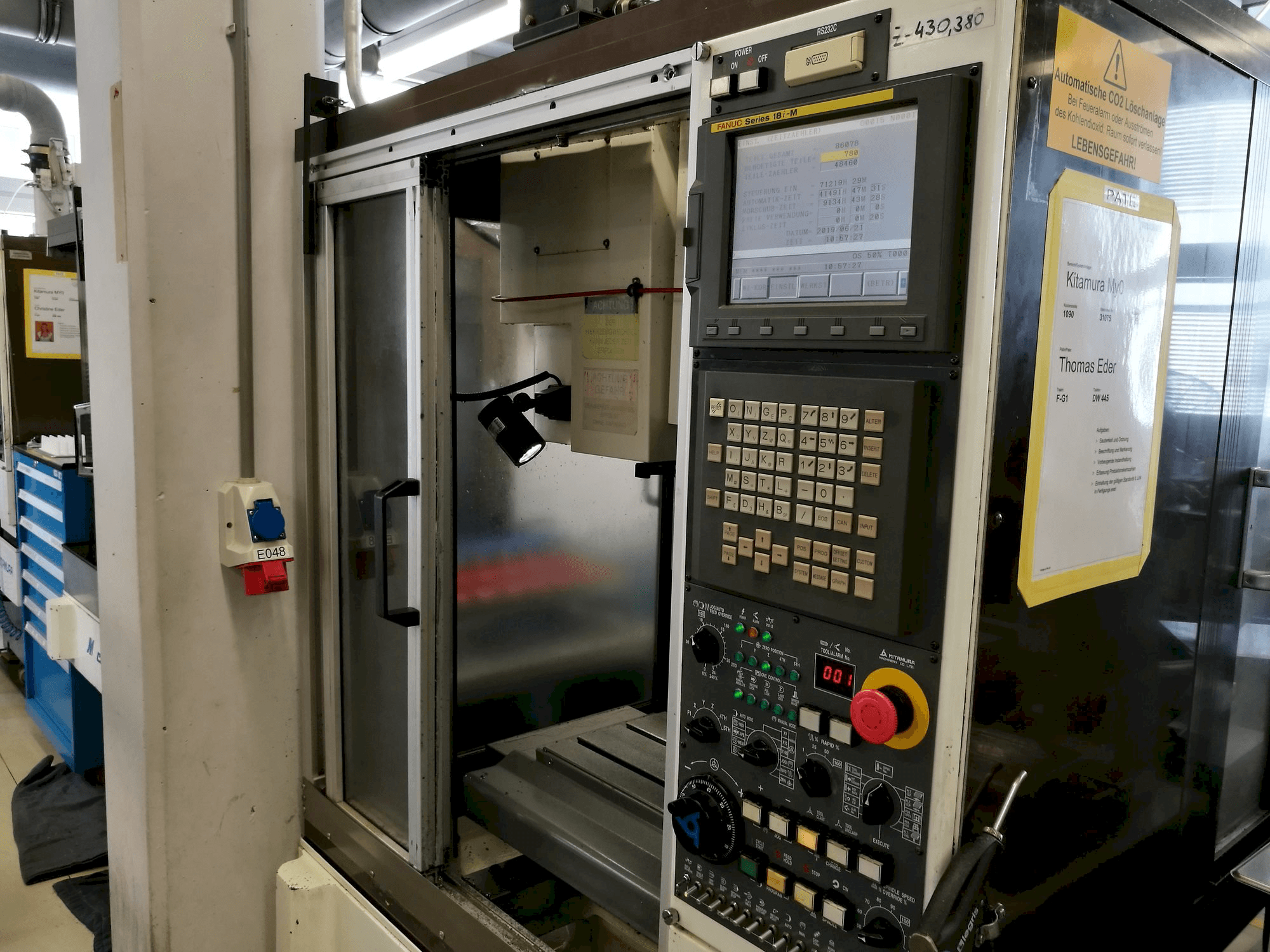

Kitamura Mycenter-0 Vertical Machining Center

Show in original language

This Kitamura Mycenter-0 Vertical Machining Center was made in the year 2000 in Japan. It has been working for 71219 hours. It is operated through a Fanuc Series 18i-M control unit. This machine can work with a spindle speed range up to 12000 rpm. It includes 20 toolholders BT 30 on choice (NT high quality). This machine presents good conditions.

Overview

brand: Kitamura
year: 2000
MODEL: Mycenter-0
production hours: 71219
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Mycenter-0

General Data

Measurements width: 1200 mm
Measurements depth: 1786 mm
Measurements height: 2012 mm
Machine weight: 2050 kg

Control Unit

Model: Series 18i-M
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 300-12000 1/MIN

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 254 mm
Z-AXIS Movement: 305 mm
B-AXIS Movement: 360° (position able) MM

Workpiece

Workpiece x: 300 mm
Workpiece y: 250 mm
Workpiece z: 300 mm
Workpiece weight: 100 kg

Table

Outer length: 610 mm
Outer width: 315 mm
Number of tslots: 3
Distance between: 14 mm

Tools

Slots in storage: 16
Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: BT30

Media

Main electronic connection: 3x220 V
Power consumption: 8 kVA
Internal cooling: Yes

Additional equipment

- 20 toolholders BT 30 on choice (NT high quality)

Additional Information

Machine history

Material type: Medical steel
End product: Medical products
Industries: Medical industry

Machine Benefits

Technical Machine Benefits:
- - Very speedy machine
- - B-axes (position able)
Qualitative Machine Benefits:
- - Service documentation
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
