Kitamura - Bridge 6GIT-MIL-KIT-2016-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Kitamura Bridge 6G Vertical Machining Center

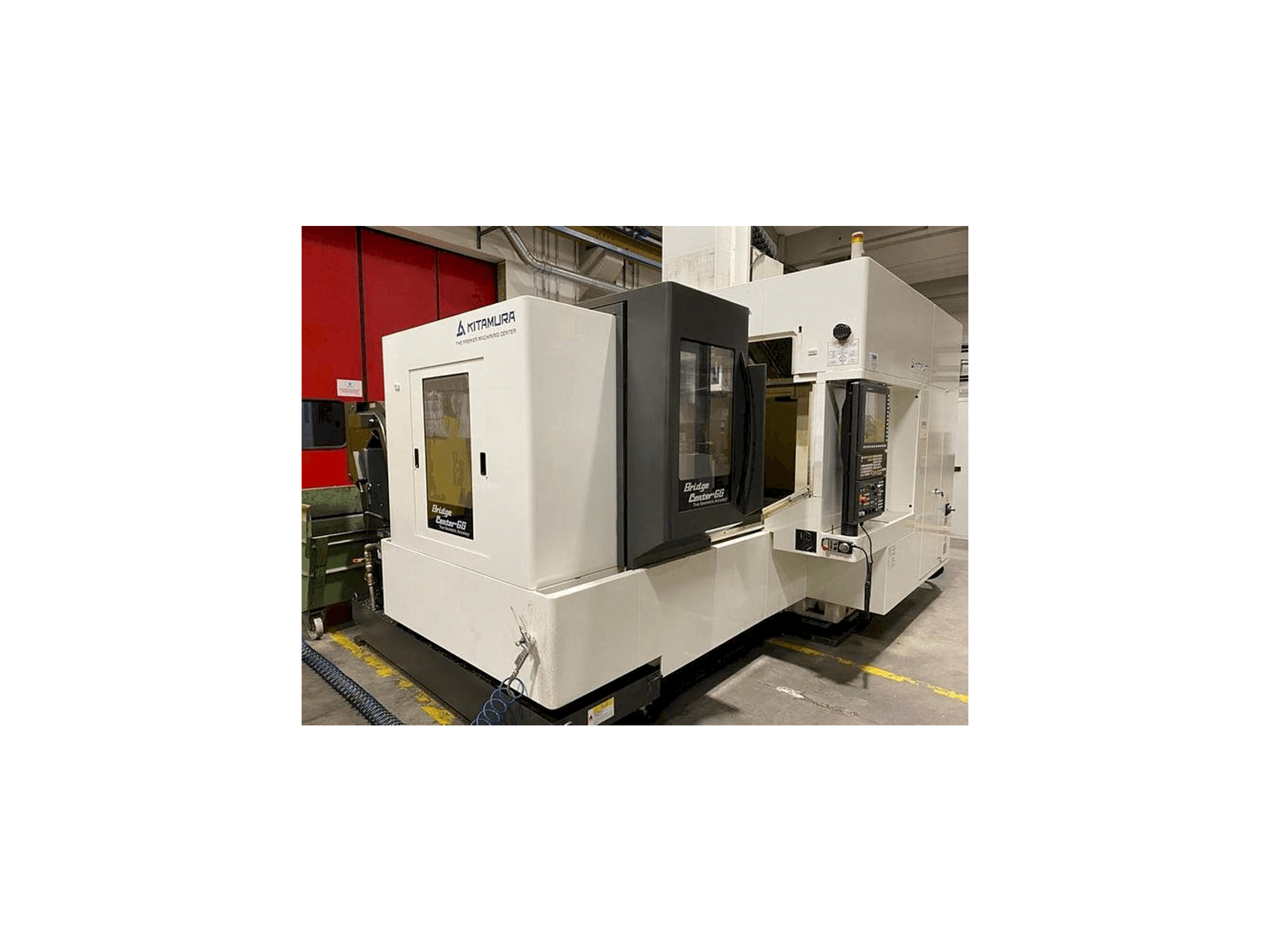

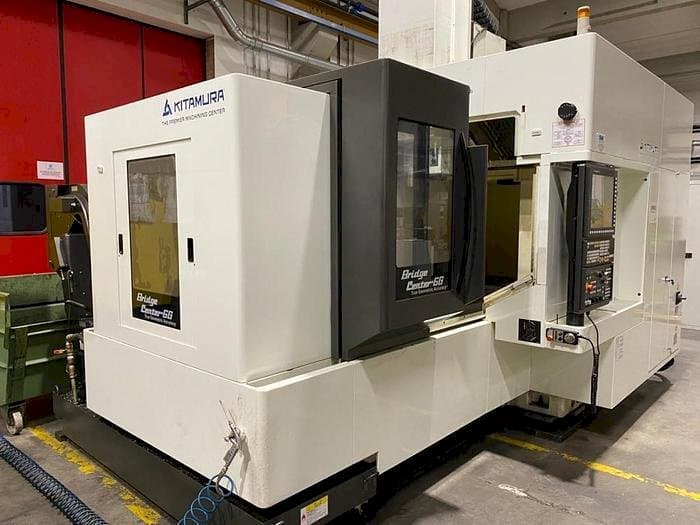

This Kitamura Bridge 6G Vertical Machining Center was manufactured in Japan in 2016. This machine is operated through a Arumatic Mi control unit. This machine can work with a spindle speed range up to 12000 rpm, counts with a table size of 1800 x 900 mm and a table load of 3000 kg.
Overview
- brand: Kitamura
- year: 2016
- MODEL: Bridge 6G
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - Kitamura Bridge 6G
General Data
- Machine weight: 16000 kg
Main drive
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 1530 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 1095 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 710 mm
- Z-AXIS Rapid traverse: 24 m/min
Table
- Outer length: 1800 mm
- Outer width: 900 mm
- Distance between: 152 - 862 mm
- Table load: 3000 kg
Media
- Chip conveyor: Yes
Additional equipment
- - Refrigeration A.P. through spindle
- - Remote jog handle
- - Renishaw probe
- - Blum probe
- - Optical scales
Additional Information
- Technical Machine Benefits:
- - Spindle connection hsk-a100
- - Tools magazine 40 positions
- - Type DOUBLE COLUMN MACHINING CENTER
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
