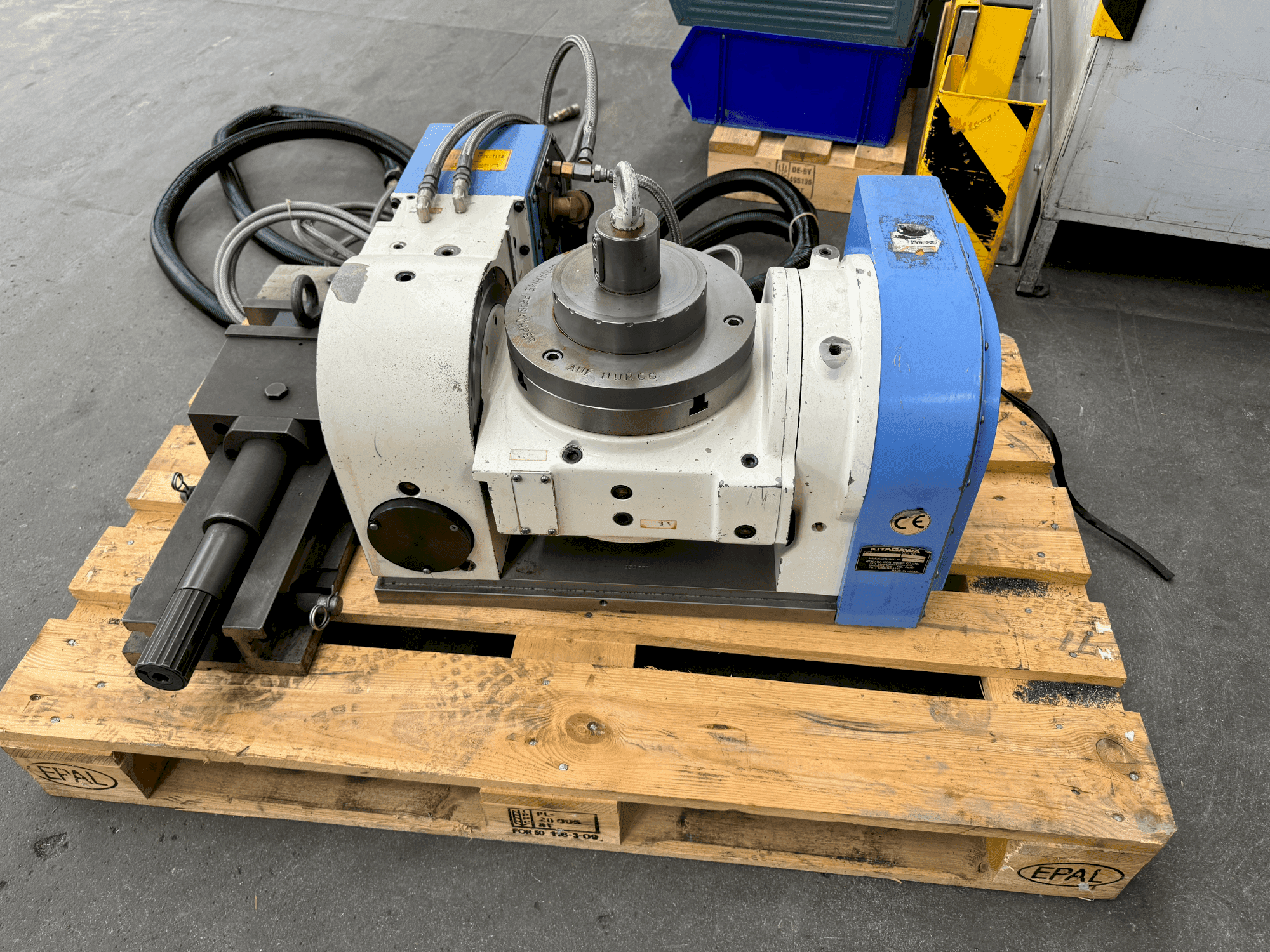

KITAGAWA - TT251 HYY01 - NC ROTARY TABLEDE-MIL-KIT-2005-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
  • - 5-axis simultaneous in conjunction with the iso code software and corresponding programming station
  • - Table diameter: ø250
  • - Center height 225 mm
  • - Spindle passage 70 mm
  • - Tilting angle range: -35°～+110°
  • - Clamping torque (n･m) (at pneumatic 0. 45mpa /hydraulic 3. 5mpa) // rotating axis: 900 // tilting axis: 1200
  • - Centre hole dia (mm): φ100h7
• Qualitative Machine Benefits:
  • - High rigidity tilting table to suit 5 axis machining centres on large work pieces with heavy cutting
  • - High accuracy
  • - This kitagawa can be purchased with a hurco vmx 50/40t vertical machining centre (yom: 2005, location: germany) to extend it from 3 to 5 axes
  • - Minimum size in its class
  • - Twin axis table with rotating and tilting axis
  • - Perfect extension to convert a 3-axis machining centre into a 5-axis machining solution
