Kia - KV 35CHU-MIL-KIA-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

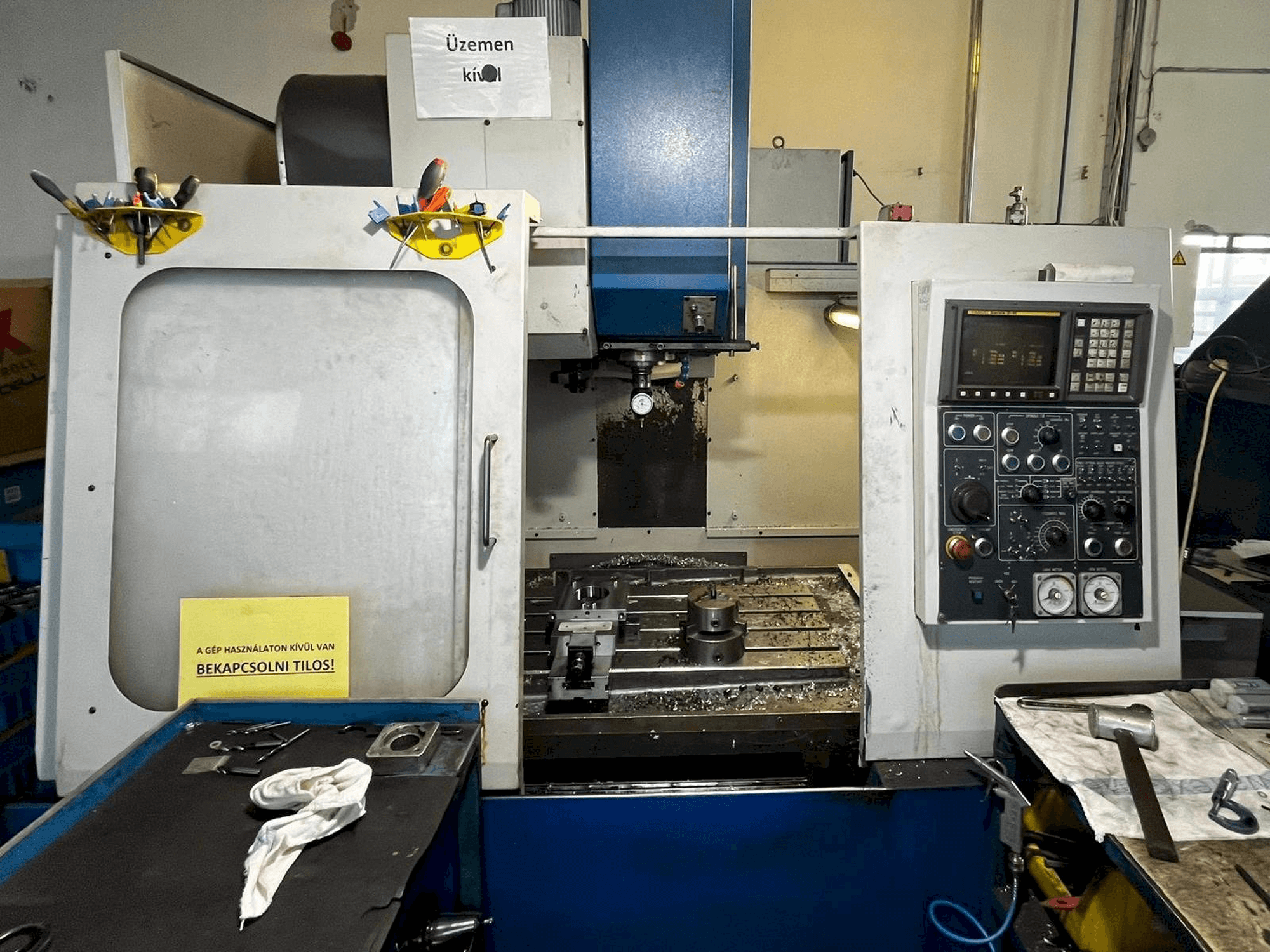

KIA KV 35C Vertical Machining center

Show in original language

This KIA KV 35C Vertical Machining center was manufactured in the year 2006 in Japan. It is equipped with a Fanuc Series O-M control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Kia
year: 2006
MODEL: KV 35C
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kia KV 35C

General Data

Machine weight: 3900 kg

Control Unit

Model: Series O-M
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5,5-7,5 kW
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 920 mm
Outer width: 460 mm
Table load: 300 kg

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
