➤ Used KERN Pyramid Nano - 2013 - Vertical machining

Show in original language

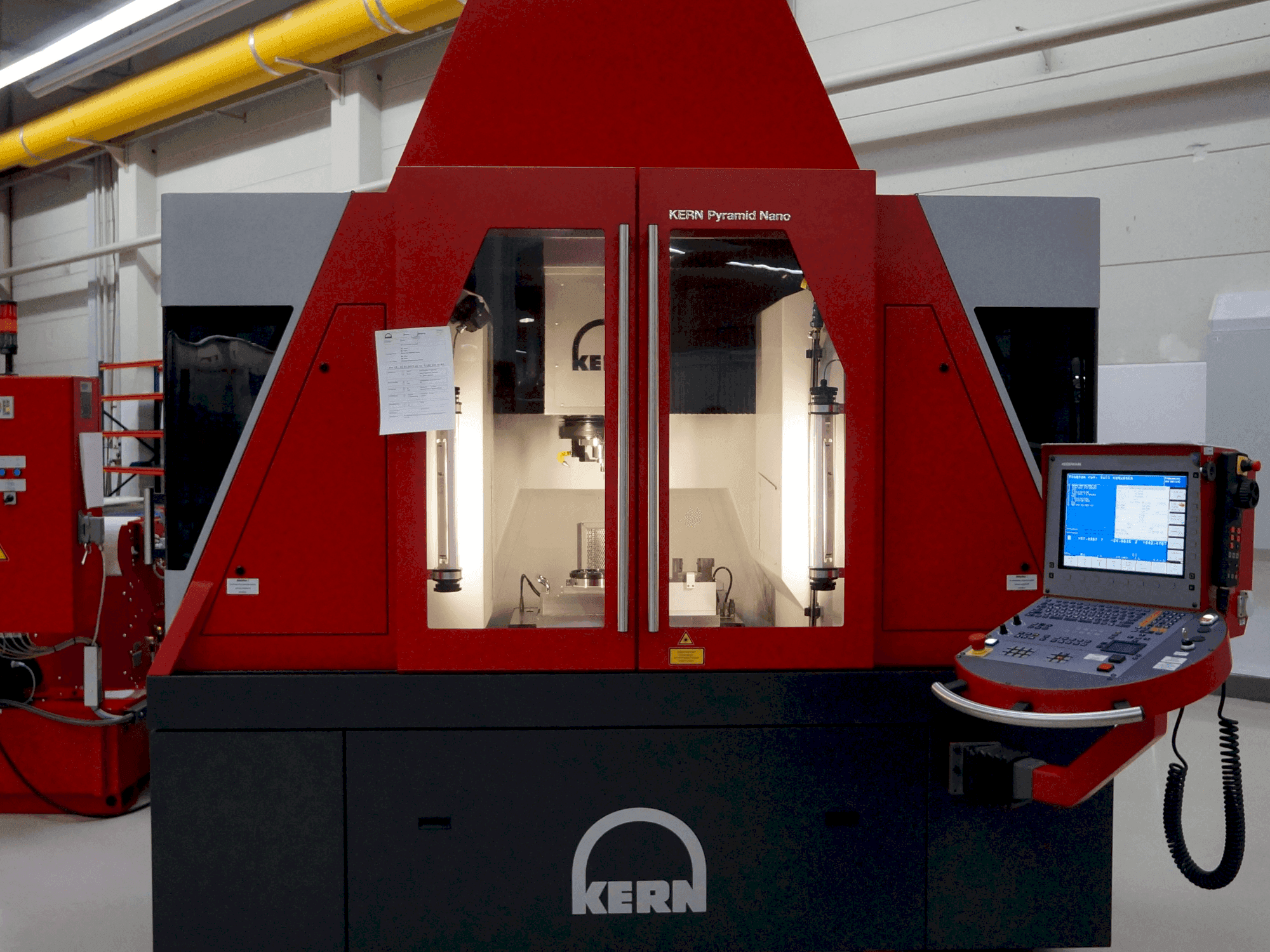

The KERN Pyramid Nano vertical machining centre, crafted in 2013, excels in ultra-precise machining tasks. It has a 3-axis setup with a high-performance Heidenhain control system. The spindle reaches 50,000 rpm with an HSK E25 tool holder, perfect for detailed work. A 32-pocket tool magazine offers tooling versatility. It includes a Renishaw OMP400 probe and BLUM Laser system. MQL, chip reservoir, and EROWA Power chuck add to its functionality. Contact us for more information.

Overview

brand: KERN
year: 2013
MODEL: Pyramid Nano
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KERN Pyramid Nano

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 50000 1/MIN
Tool taper: HSK E25
Number of axis: 3

Additional equipment

- Tool Magazine: 32 pockets
- Cooling System: Centrally managed +/- 0.25 degree C, External 10-12 degree C
- MQL System
- Suction Unit
- Chip Reservoir with band filter pumping device unit for processing of cooling lubrication device (250L)
- Oil mist lubrication unit (MQL)
- Suction unit (with mechanical preliminary & an electrostatic suction unit)
- Tool holder package for KERN special design (collet & shrinking holders)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work-piece probe omp400 (renishaw)
- - Blum laser measurement system
- - Erowa power chuck p for table
- - Vdi/dgq3441 (p < 0. 001mm & ps <+/- 0. 0003mm)
Qualitative Machine Benefits:
- - Ultra-high accuracy, comprehensive cooling and lubrication systems.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
