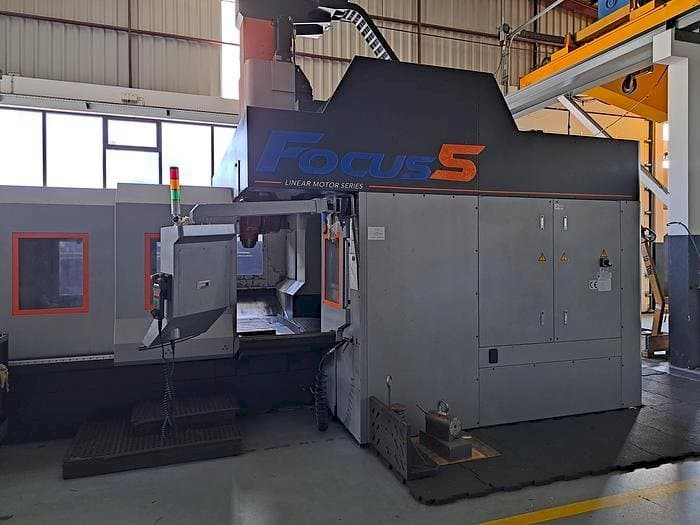

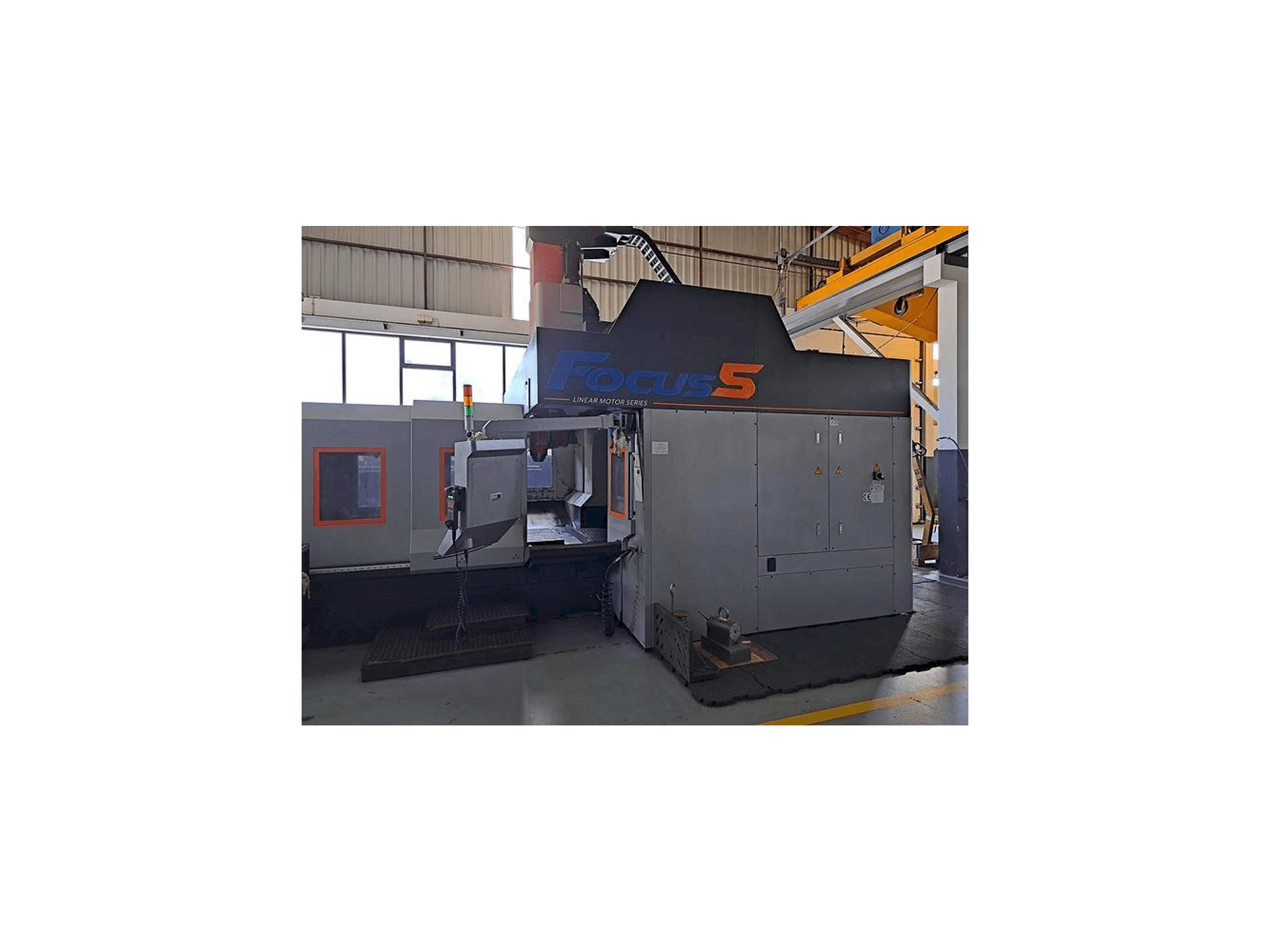

Ken Focus5 2022 Universal Machining Center

Show in original language

This Ken Focus5 2022 Universal Machining Center was manufactured in the year 2017 in Taiwan. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: KEN
year: 2017
MODEL: Focus5 2022
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KEN Focus5 2022

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 2200 mm
Outer width: 1300 mm
Distance between: 1650 mm
Table load: 4000 kg

Tools

Type of tool holder: HSK63

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
