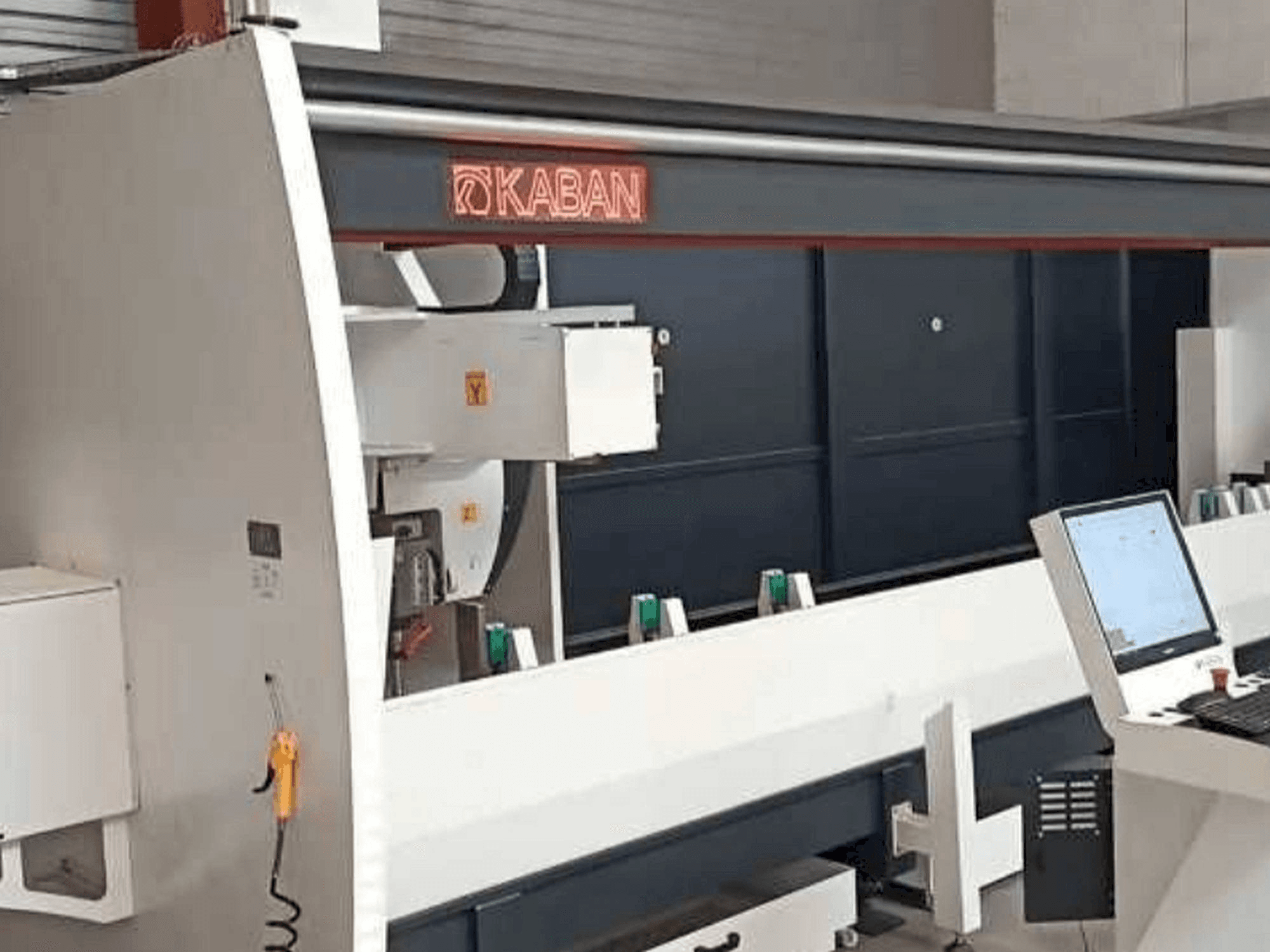

KABAN ZC4035 Aluminium Machining Center

Show in original language

This KABAN ZC4035 Aluminium Machining Center was manufactured in the year 2021 in Turkey. It is equipped with a Mitsubishi FX-5 control unit and has 3.5 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: KABAN
year: 2021
MODEL: ZC4035
application type: Other Machine Tools
Location: Poland
machine type: Machine Tool
availability: Sold
control unit brand: MITSUBISHI

Technical Information - KABAN ZC4035

General Data

Measurements width: 7896 mm
Measurements depth: 3574 mm
Measurements height: 2642 mm
Machine weight: 6700 kg

Control Unit

Model: FX-5
Brand: MITSUBISHI

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8.5 kW
Tool taper: HSK 63F
Number of axis: 3.5

Media

Main electronic connection: 400V / 50-60 Hz
Power consumption: 19 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum machining length: 4175 mm
- - Max machining width: 300 mm
- - Max machining height: 300 mm
- - A-axis angle: 180 deg
- - Max profile length: 4175 mm
- - Max profile dimension: 300 x 300 mm
- - 6 clamps, 8 tool holding capacity
Qualitative Machine Benefits:
- - Tool cooling system with oil-air mixture spraying

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
