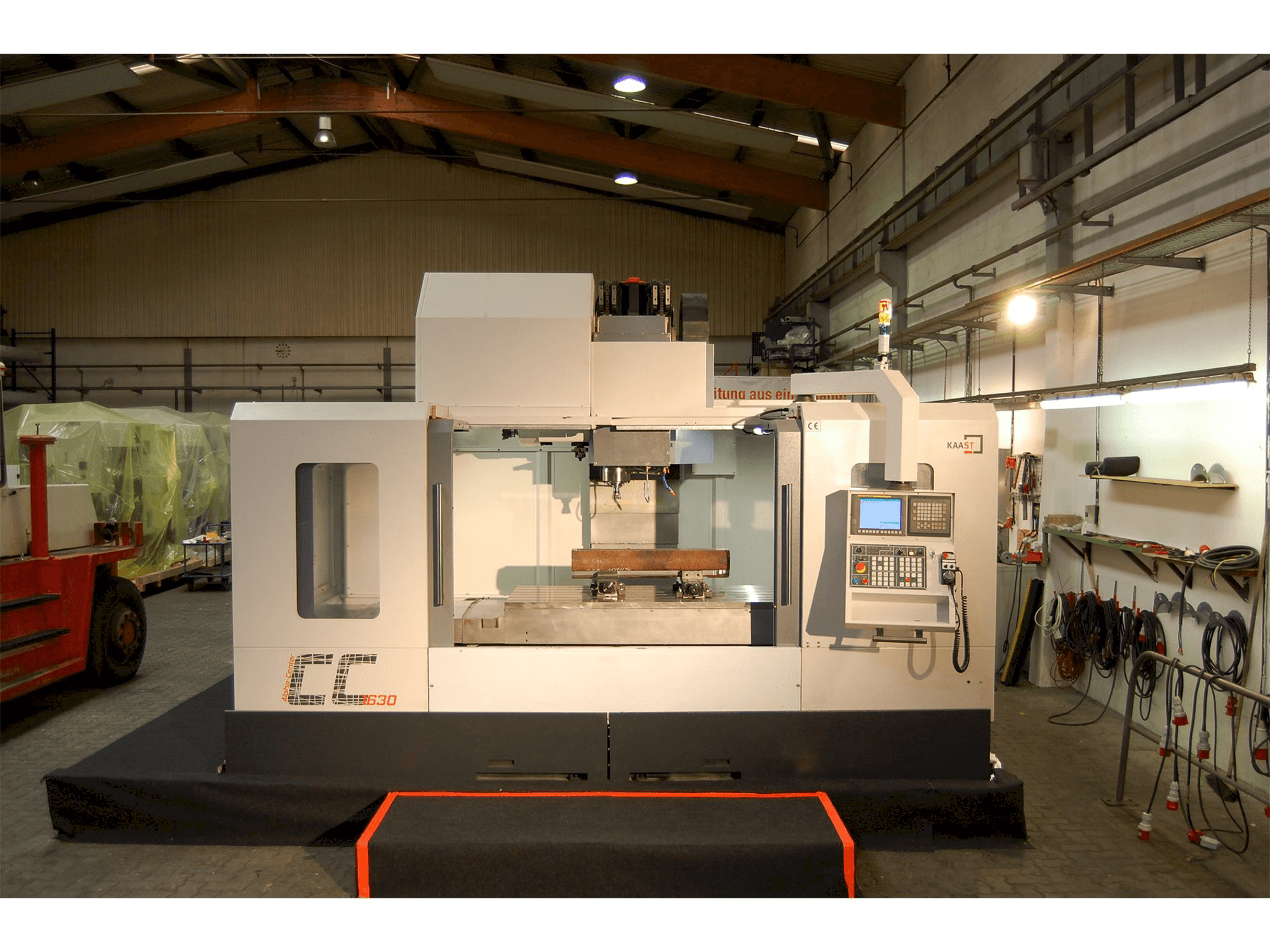

Kaast CC1630 Vertical Machining Center

Show in original language

This Kaast CC1630 Vertical Machining Center from 2015 was made in Germany and has 4500 production hours, of which 1000 are spindle hours. This 3 axis with hydraulic clamping to build up machine is operated through a Fanuc Oi MD control unit. This machine counts with a spindle speed up to 9000 rpm and spindle motor power of 18.5 kW.

Overview

brand: Kaast
year: 2015
MODEL: CC1630
production hours: 4500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kaast CC1630

General Data

Measurements width: 4820 mm
Measurements depth: 3580 mm
Machine weight: 12600 kg

Control Unit

Model: Oi MD
Brand: FANUC

Main drive

Spindle speed range: 9000 1/MIN
Spindle motor power: 18.5 kW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1630 mm
X-AXIS Working Feed: 10 m/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Working Feed: 10 m/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 815 mm
Z-AXIS Working Feed: 10 m/min
Z-AXIS Rapid traverse: 25 m/min

Table

Outer length: 1750 mm
Outer width: 800 mm
TSlots size: 18 x 125 x 6 mm
Table load: 2300 kg

Tools

Number of index: 28 pcs.
Max weight: 7 kg
Max tool diameter: 65 mm
Max tool length: 350 mm

Media

Power consumption: 35 kVA
Oil tank: 640 l
Chip conveyor: Yes

Additional equipment

- Tool cone DIN 69871 ISO 40
- Tool magazine for 28 tools/ arm changer
- Full protection cabin with "Top Close
- Control cabinet temperature control
- Halogen work area light
- Coolant outlet around the spindle
- Portable electr. handwheel
- Hinged belt chip conveyor
- Oil separator, Tempered main motor flange plate
- 4+5 axis included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle-table 100-915 mm
- - Distance spindle center-z-axis cover 860 mm
- - Positioning accuracy ± 0. 005 mm
- - Repeat accuracy ± 0. 003 mm
- - Max. Tool tool without adjacent tool 130 mm
- - Tool change time 2. 2 sec
- - Air pressure 7 kg/cm²
Qualitative Machine Benefits:
- - Z-axis as block guide
- - Ktr couplings
- - Thk linear guides x and y, z flat guides
- - Set-up elements
- - Operating tool
- - Operating instructions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
