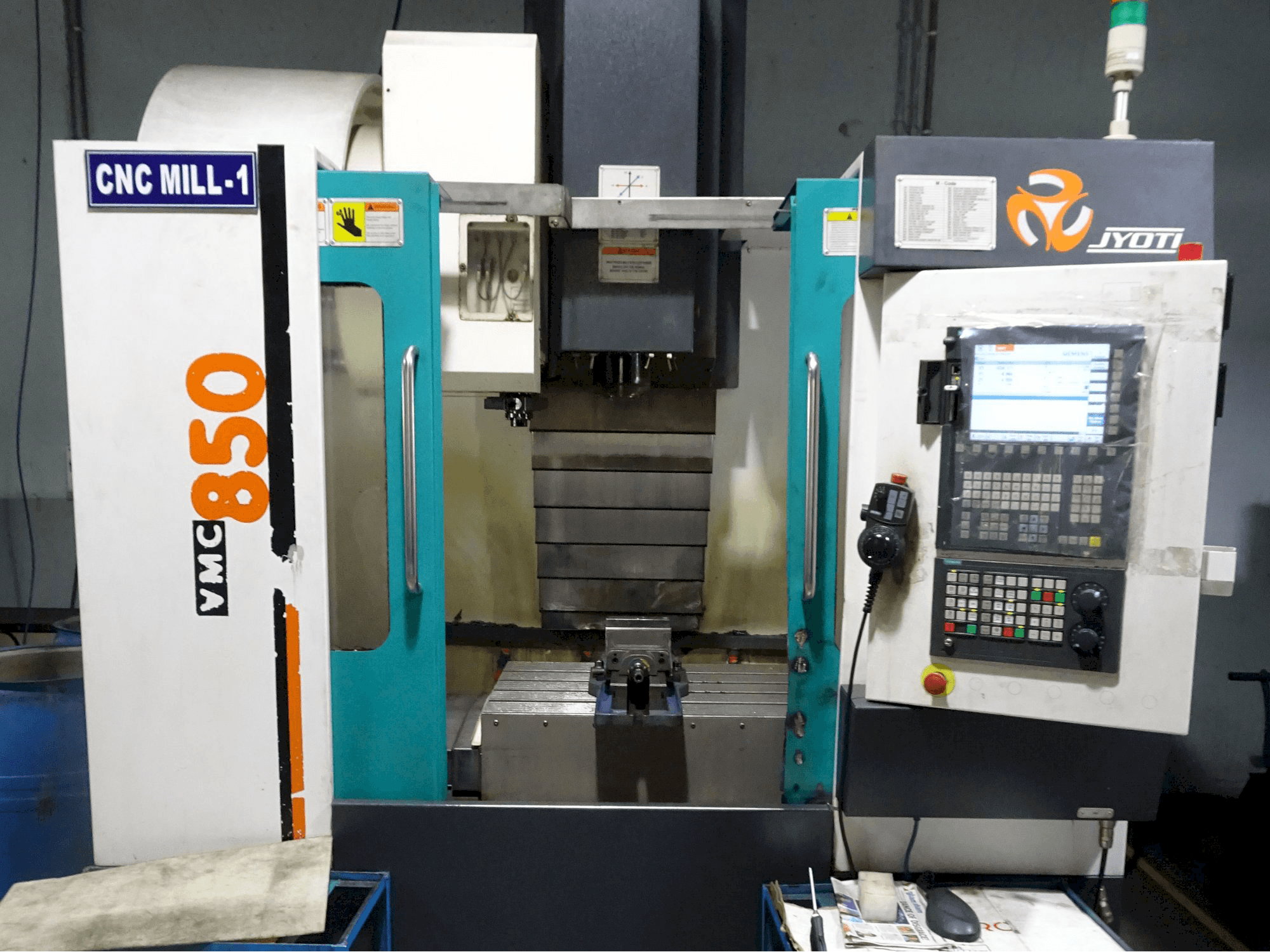

Front view of JYOTI VMC-850 Machine

JYOTI - VMC-850IN-MIL-JYO-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This JYOTI VMC-850 Vertical Machining Center was manufactured in 2015 in India and has a working record of approximately 7200 production hours. With a SIEMENS SINUMERIK 828D Control unit, this model stands out due to its excellent working conditions. A 4th axis motor and drive (SIEMENS) are supplied along with the machine.

Overview

  • brand: JYOTI
  • year: 2015
  • MODEL: VMC-850
  • production hours: 7200
  • application type: Milling
  • Location: India
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - JYOTI VMC-850

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 2500 mm
  • Measurements height: 2800 MM
  • Machine weight: 5700 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 828D
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 rpm 1/MIN

Movement

  • X-AXIS Movement: 820 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 510 mm

Media

  • Main electronic connection: 415 V
  • Power consumption: 25 kW
  • Internal cooling: Yes

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
