JOBS JoMach 243 Milling Machine

Show in original language

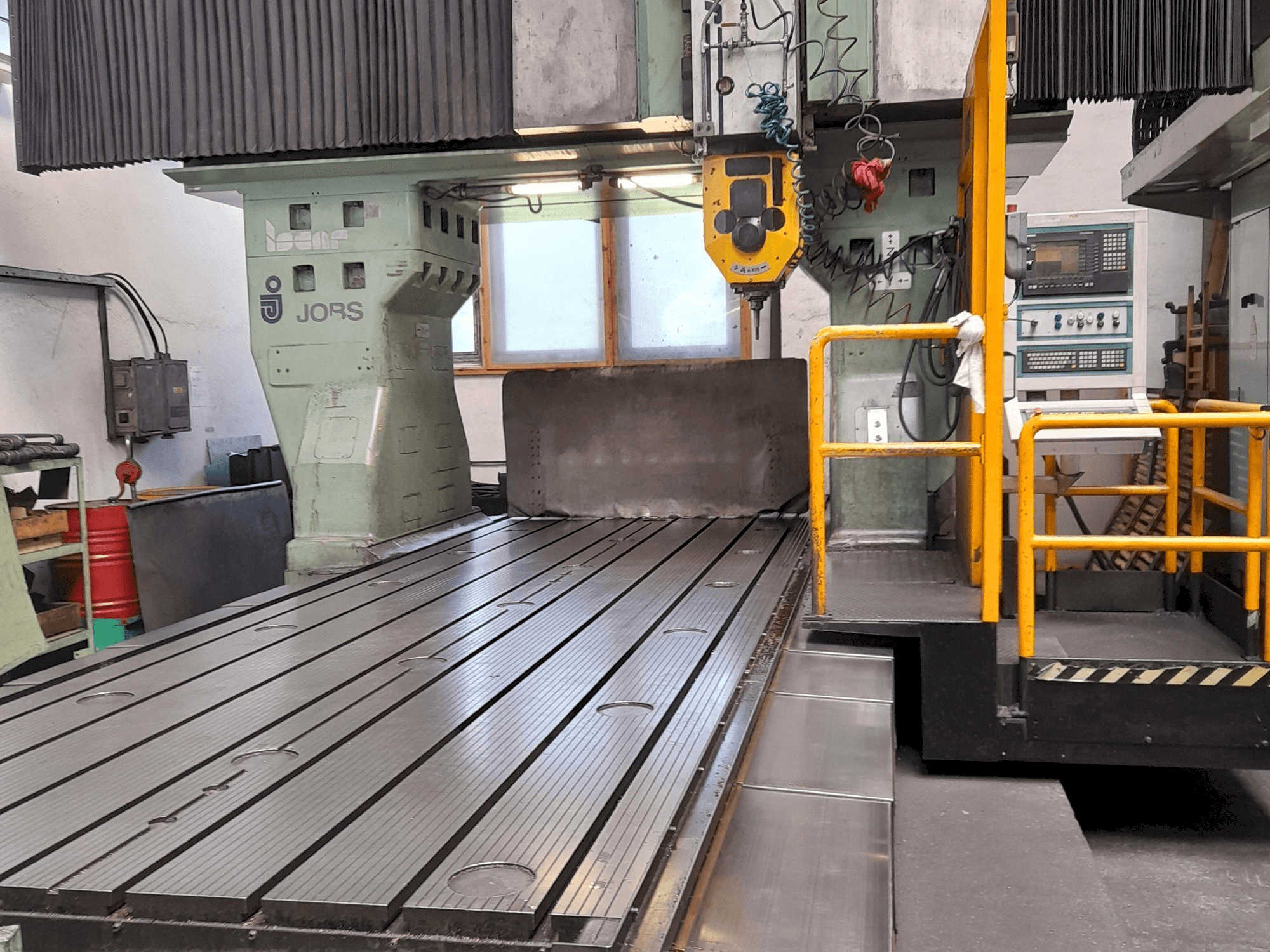

This JOBS JoMach 243 Milling Machine was manufactured in Italy in 1999. It is operated through a Siemens Sinumerik 840 D control unit. This 5 axis machine can work with a spindle speed range 15-4000 rpm. The twist head was reconditioned in 2007.

Overview

brand: JOBS
year: 1999
MODEL: JoMach 243
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold
control unit brand: Siemens

Technical Information - JOBS JoMach 243

General Data

Machine weight: 45050 kg

Control Unit

Brand: Siemens
Model: Sinumerik 840 D

Main drive

Number of spindles: 1
Spindle speed range: 15 - 4000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 4500 mm
Y-AXIS Movement: 2700 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 6500 mm
Outer width: 2000 mm
Number of tslots: 8
Distance between: 250 mm
Table load: 10000 kg/m2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns 2320 mm
- - Distance between cross-rail and table 1635 mm
- - Max. Table load
- - Feedrate x/y axis 16. 000 mm/min
- - Feedrate z axis 12. 000 mm/min
- - Auxiliary electrospindle 200-16000 rpm
- - Main motor power 39 kw
- - Continuous indexing twist head: c axis 360 deg. , a axis +/- 110 degree
Qualitative Machine Benefits:
- - In good condition, regularly maintained.
- - Twist head reconditioned in 2007
- - 5 axis milling machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
