INGERSOLL - Gantry 400IT-EDM-ING-2002-00001

Name: INGERSOLL Gantry 400
Brand: INGERSOLL
SKU: IT-EDM-ING-2002-00001
Price: 986150 INR
Availability: InStock

Rs. 986,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used INGERSOLL Gantry 400 For Sale | gindumac.com

Show in original language

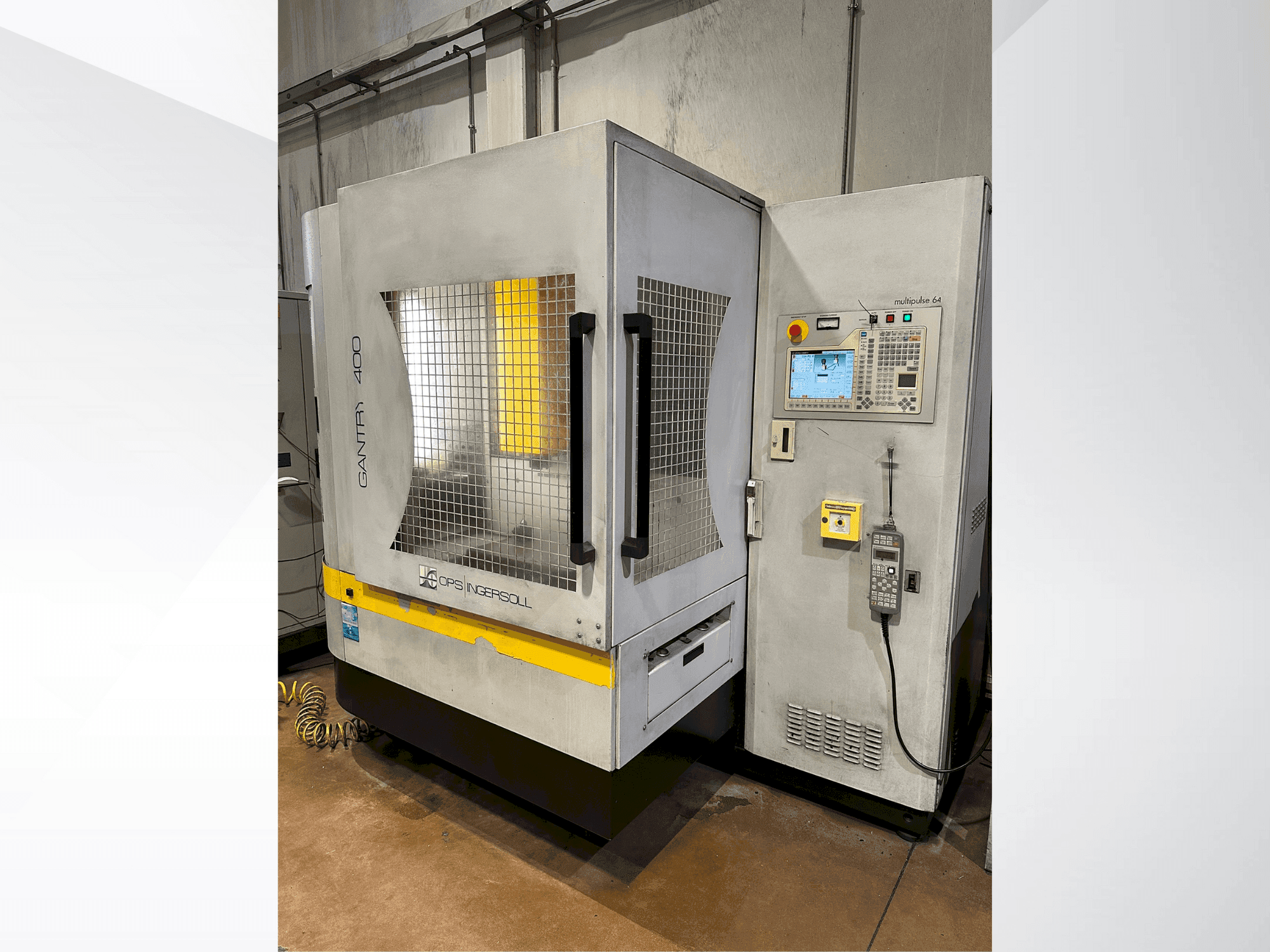

This 4-axis INGERSOLL Gantry 400 die-sinking EDM machine was manufactured in 2002. Consider the opportunity to buy this INGERSOLL Gantry 400 die-sinking EDM machine. Contact us for more information about this machine.

Overview

brand: INGERSOLL
year: 2002
MODEL: Gantry 400
application type: EDM
Location: Italy
machine type: Die-Sinking EDM Machine
availability: Immediately

Technical Information - INGERSOLL Gantry 400

General Data

Measurements width: 2010 MM
Measurements depth: 1234 MM
Measurements height: 2550 MM
Machine weight: 4000 KG

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 420 mm
X-AXIS Rapid traverse: 5000 mm/min
Y-AXIS Movement: 300 mm
Y-AXIS Rapid traverse: 5000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 5000 mm/min

Table

Outer length: 550 mm
Outer width: 470 mm
Table load: 500 kg

Additional equipment

- Mecatool Electrode Holders (various sizes): 200 pieces
- Chiller Refrigerator: Model ZCM103-O

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z-axis rapid jump speed: up to 18000 mm/min
- - Minimum/maximum distance between table and electrode: 135 mm / 535 mm
- - Maximum electrode weight: 15 kg
- - Work tank dimensions: 650 x 500 x 340 mm
- - Electrode changing system: 20-position tool changer
- - Numerical control: pc-nc-dialogue 2 x 32 bit
- - Drive type: ac digital servo drives

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
