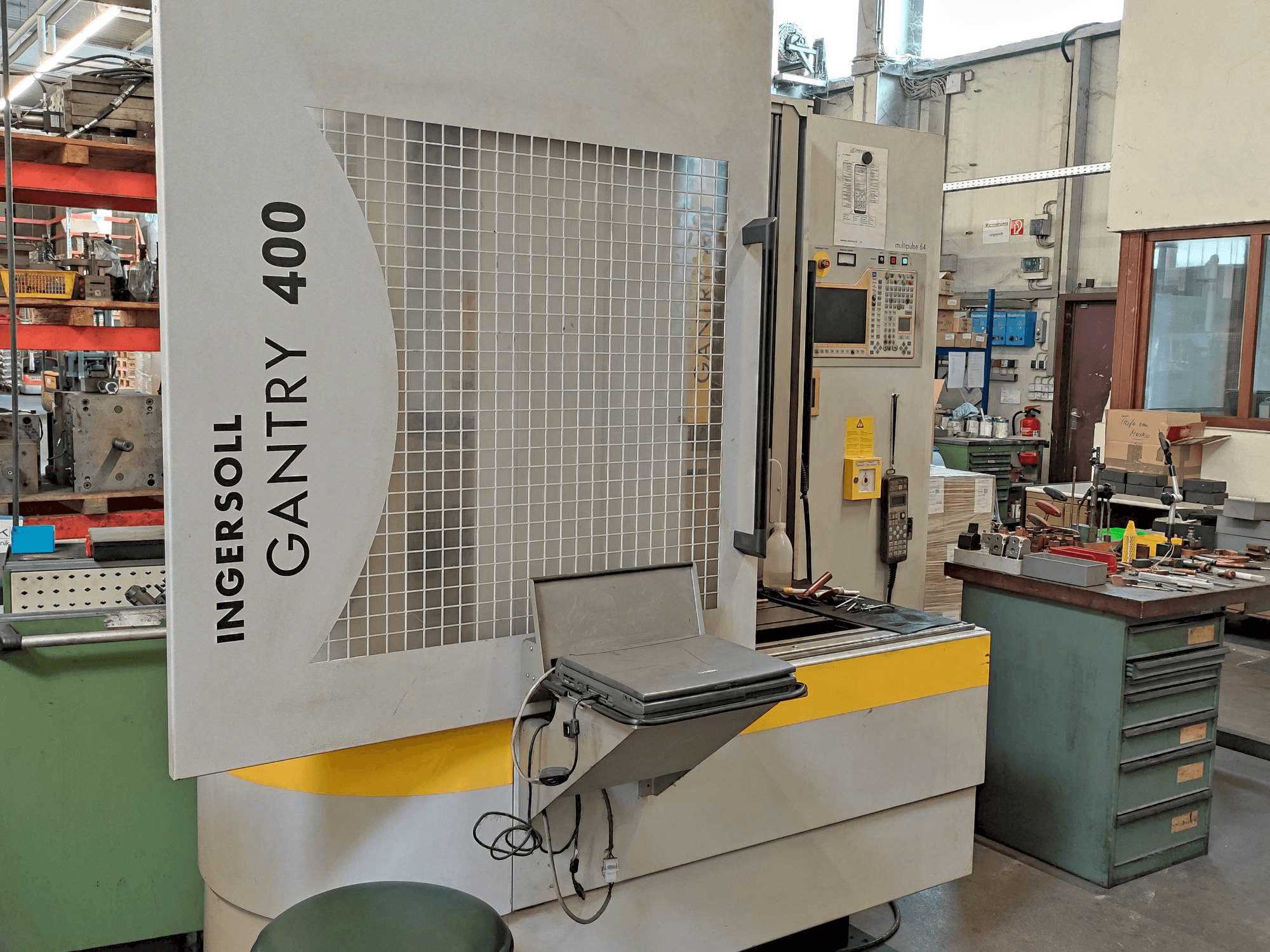

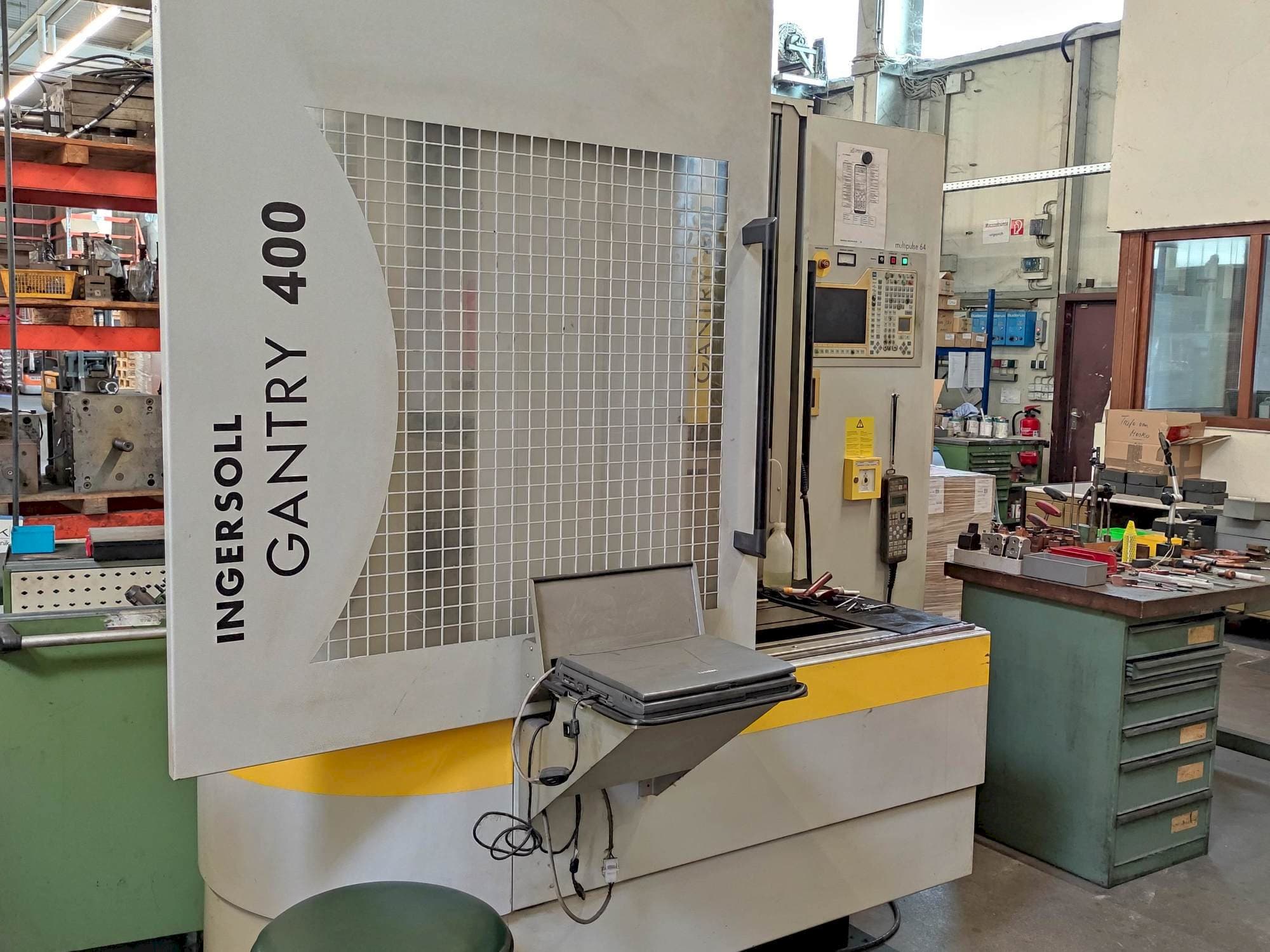

INGERSOLL GANTRY 400 Erosion Machine

Show in original language

This INGERSOLL GANTRY 400 Erosion Machine was manufactured in the year 2003. Equipped with a Multipulse 64 control unit. This machine includes a table size of 550 x 470 mm that can work with a maximum workpiece weight 500 kg. Machine is in good condition.

Overview

brand: INGERSOLL
year: 2003
MODEL: GANTRY 400
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - INGERSOLL GANTRY 400

Control Unit

Model: 64

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 550 mm
Outer width: 470 mm
Table load: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changing device: 20 pos.
- - Working container inner dimension: 650 x 500 x 340 mm
- - Electrode diameter - max. : 180 mm
- - Rapid traverse: 2000 mm/min
- - With multipulse 64 - bit3
- - With computer - software ops ingersoll - multiprog.
- - With remote control, with camera
- - With fire extinguishing system
- - With electronic manual control panel
- - With measuring probe
Qualitative Machine Benefits:
- - Machine is in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
