INFOTEC 3121 Energy Milling machine

Show in original language

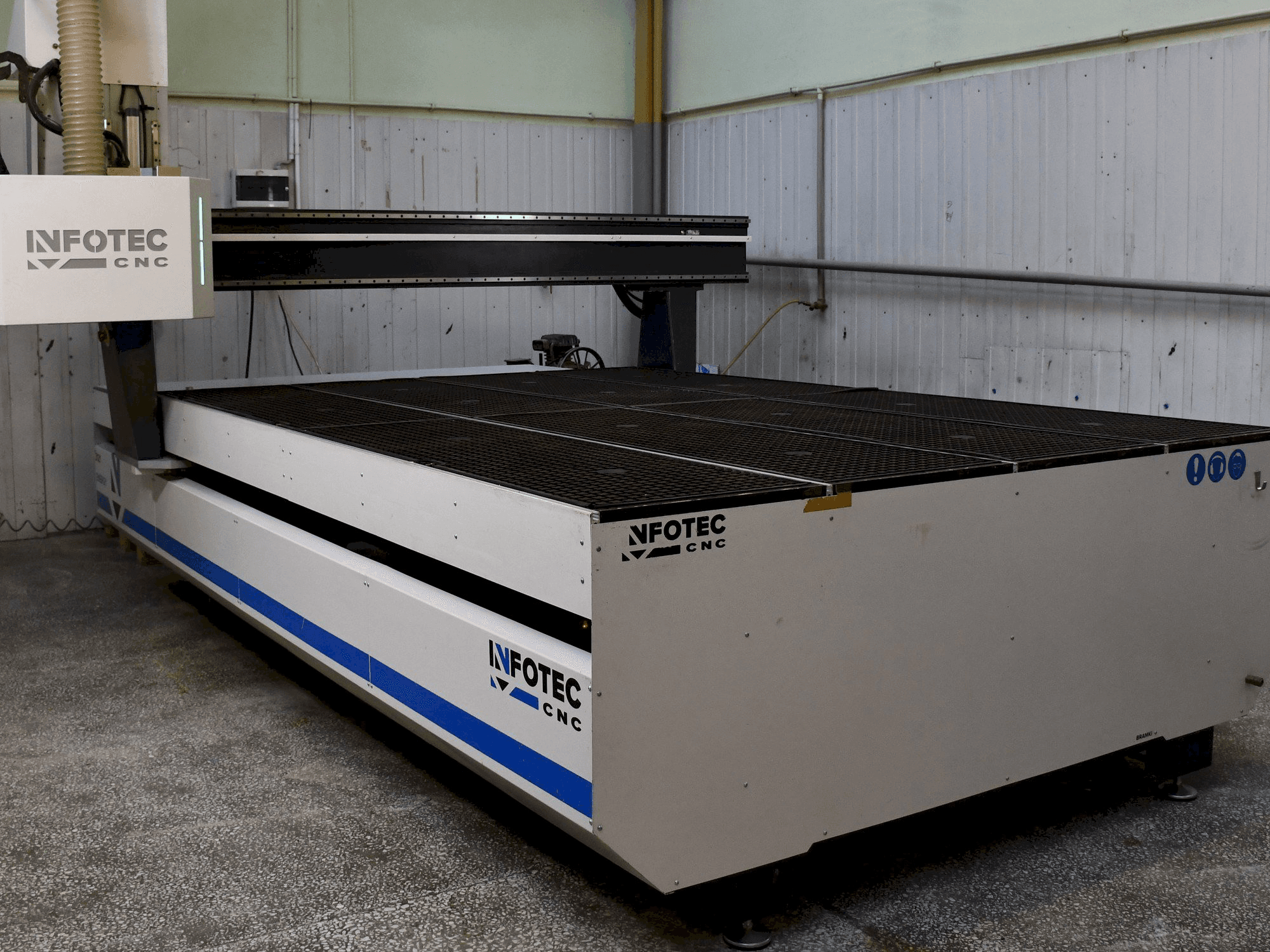

This INFOTEC 3121 Energy Milling machine was manufactured in the year 2017. It is equipped with an INFOTEC control unit and has 3 axis. The machine has a spindle speed of 24000 rpm, is in very good condition and well maintained.

Overview

brand: INFOTEC
year: 2017
MODEL: 3121 E
application type: Milling
Location: Poland
machine type: Gantry Milling Machine
availability: Sold

Technical Information - INFOTEC 3121 E

General Data

Measurements width: 2700 mm
Measurements depth: 4300 mm
Measurements height: 2500 mm

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 4.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 3100 mm
X-AXIS Rapid traverse: 30m/min
Y-AXIS Movement: 2100 mm
Y-AXIS Rapid traverse: 30m/min
Z-AXIS Movement: 200 mm
Z-AXIS Rapid traverse: 12m/min

Table

Outer length: 3100 mm
Outer width: 2100 mm

Additional equipment

- Vacuum table
- Vacuum pump
- Pneumatic/electric oscillating knife
- Trailing knife
- Video positioning system
- CAD/CAM control software with nesting function

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Machine in very good condition, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
