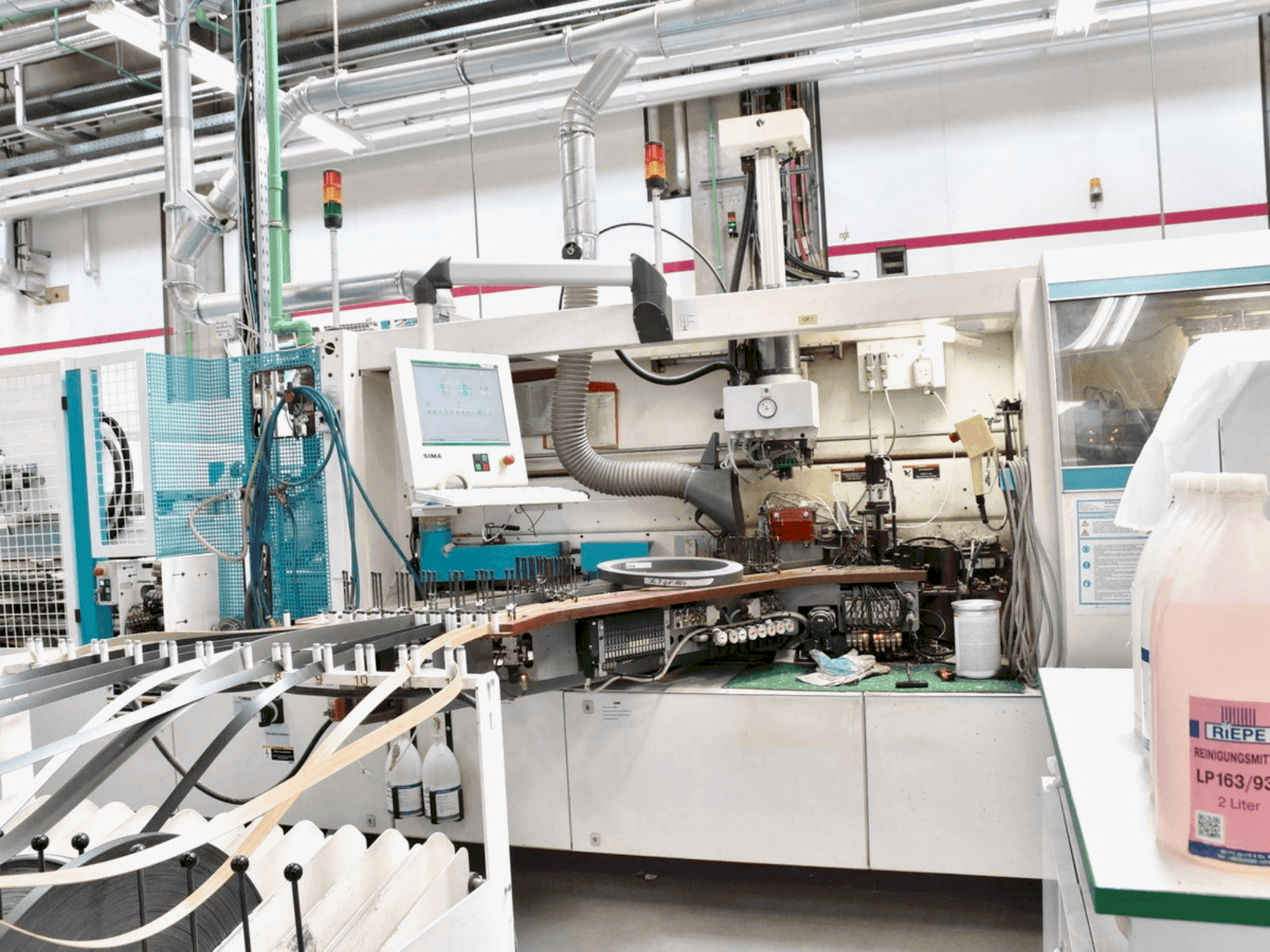

IMA - NOVIMAT I G80 540 R3DE-WOO-IMA-2012-00001

Additional equipment

• - Long infeed ruler for easier workpiece feeding.
• - Manually adjustable horizontally.
• - Workpiece support rollers in extension of the chain track.
• - Servo infeed and stop system A1 / 15.
• - Tilt roller table as a feed roller table.
• - Separator application top and bottom.
• - Joint trimming unit 08.379.
• - Blow nozzle for removing loose particles.
• - Radiator 300 mm for preheating the workpiece edge.
• - Gluing unit VTG for gluing straight edges.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Constant workpiece offset from the chain track: 38 mm (incl. Edge with edge thicknesses of 0. 3 - 3 mm)
  • - Minimum through width: 65 mm* *at a maximum workpiece thickness of 25 mm
  • - Minimum workpiece length in feed direction: 150 mm
  • - Base height (top edge of chain track): 960 mm
  • - Edge material (paper, plastic (foil only with additional equipment), and veneer: minimum height 14 mm, maximum height 65 mm
  • - Roll material: minimum thickness 0. 3 mm, maximum thickness 3. 0 mm (veneer edges limited to a maximum of 1. 0 mm)
  • - Contour milling unit 08. 355, kfa x30.
  • - Multi-profile scraping unit 08. 516.
  • - Scraper 08. 521.
  • - Polishing unit 08. 617-4.
• Qualitative Machine Benefits:
  • - Automatic glue roller cleaning.
  • - Pneumatically operated dosing slide for cleaning the glue roller.
  • - Automatic pu melting system quickmelt 283. 203.
  • - 12-fold edge magazine for roll material.
  • - Vertical roll holder for 12 rolls.
  • - Knife for precise separation of the edge material.
  • - Trimming unit 08. 42 / 30 / b.
  • - Milling unit 08. 0555.
  • - Multi-profile milling unit 08. 0587.
  • - Horizontal spray nozzle for the kfa.

Extra information

• - Machine still under power.
