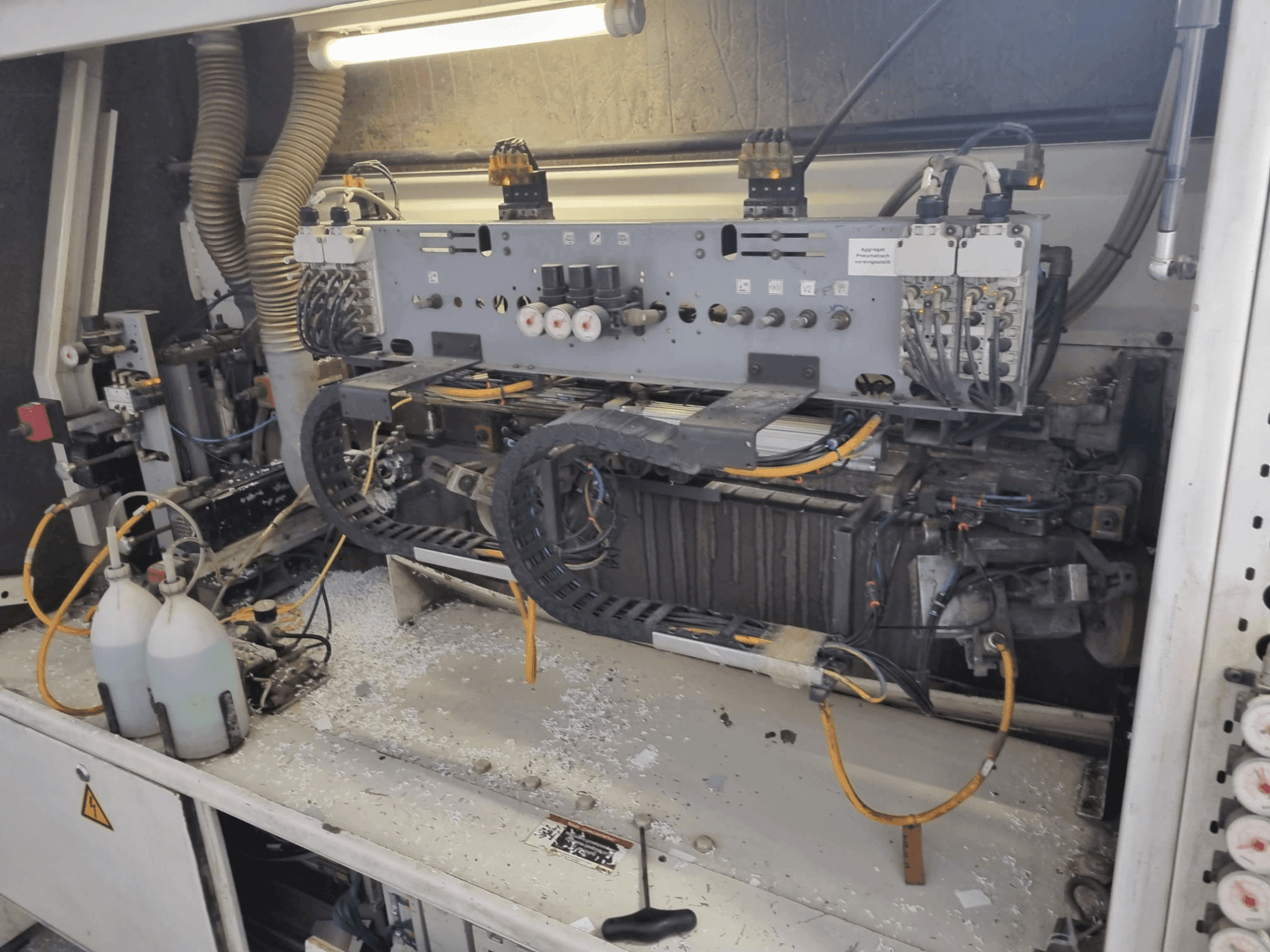

IMA - Novimat Contour I/G80/790/L20DE-EDG-IMA-2009-00001

Additional equipment

• - Electronically Controlled Feed Speed: 6-30 m/min
• - Roll Edge Thickness: 0.3 - 3.0 mm
• - Edge Types: Paper, PVC, and ABS edges 0.3 - 3.0 mm; Veneer 0.5 - 3.0 mm; Wood slats 0.8 - 20 mm
• - Edge Height: 14 mm - 65 mm
• - Maximum Edge Allowance from Above: For edge thickness up to 8 mm - 5 mm; Over 8 mm - 2 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Minimum workpiece length: 150 mm / minimum workpiece width: 25 mm / minimum workpiece thickness: 8 mm (without profile scraper blades) or 12 mm with profile scraper blades maximum workpiece thickness: without corner copying max. 60 mm (max. 40 mm with corner copying)
  • - Smallest element: 150 mm x 150 mm or 65 mm x 300 mm with a maximum thickness of 25 mm
