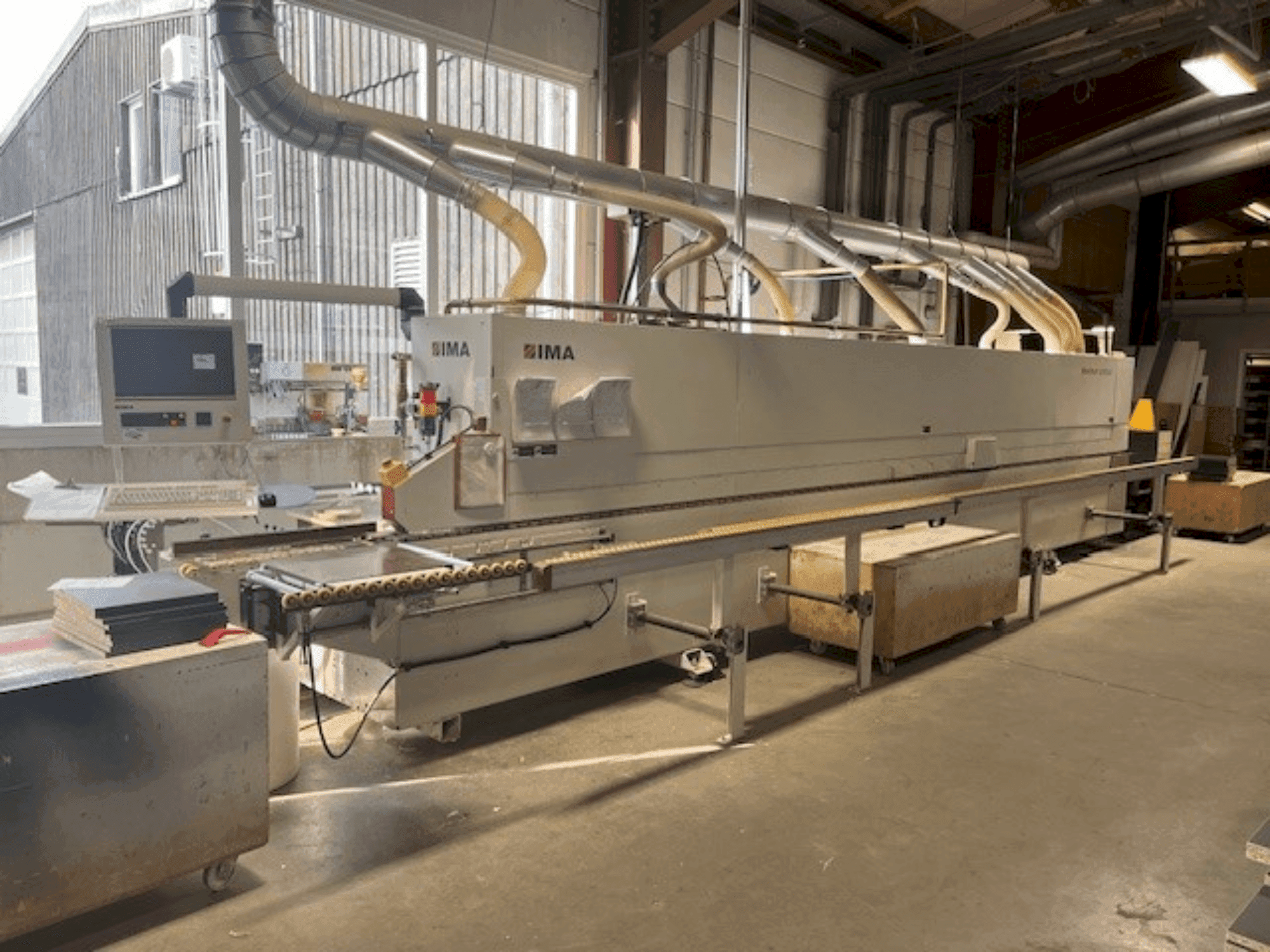

IMA - Novimat/Contour/I/G80/700/R3+DE-EDG-IMA-2016-00002

Additional equipment

• - Radiator for preheating the edge of the workpiece
• - Automatic PU Melting System Quickmelt 283.203: Melting capacity approx. 8 - 10 kg
• - Pre-melting Container 283.201: Approx. 1 l, heating capacity 3 x 400 W
• - Six-fold Edge Magazine: For roll material 0.3 - 3 mm thick
• - NC Axis Vertical and Horizontal Adjustment: Equipped for precise adjustments
• - Scraper Unit 08.521 and Buffing Unit 08.617-2: With motors 180 W, 50 Hz, 1400 rpm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece length: min. 150 mm
  • - Workpiece width: min. 65 mm
  • - Workpiece thickness: min. 8 mm, max. 60 mm

Extra information

• - This machine offers comprehensive capabilities for various edge and workpiece processing needs. Edge Material Types: Paper, plastic (film only with additional equipment), veneer Height: Min. 14 mm, Max. 65 mm Roll Material Thickness: Min. 0.3 mm, Max. 3 mm (Veneered edges up to max. 1.0 mm) Control Unit Joint Trimming Unit 08.379: Two motors, each with 4.0 kW, 8800 rpm, 150 Hz, controllable Movement Snipping Unit 08.42 / 30 / 8: Pneumatic tilting 0+25° for straight and bevel cross-cuts Feed Speed: Automatic adjustment to 20 + 30 m/min Max. Working Speed: 30 m/min with edge cross-section 3 x 45 mm Tools Pre-milling Unit 08.055.0.1680: Milling motor 1850 W, 400 V, 200 Hz, 12000 rpm Standard Routing Unit 08.190: Milling motor 4.5 kW, 150 Hz, 9000 rpm with frequency converter Multiple Profile Trimming Unit 08.0587: Two milling motors 1000 W, 400 V, 200 Hz, 12000 rpm KFA x20 Contour Trimming Unit: Motor 180 W, 400 V, 200 Hz, 12000 rpm
