➤ Used IBARMIA ZV 35 L2200 For Sale | gindumac.com

Show in original language

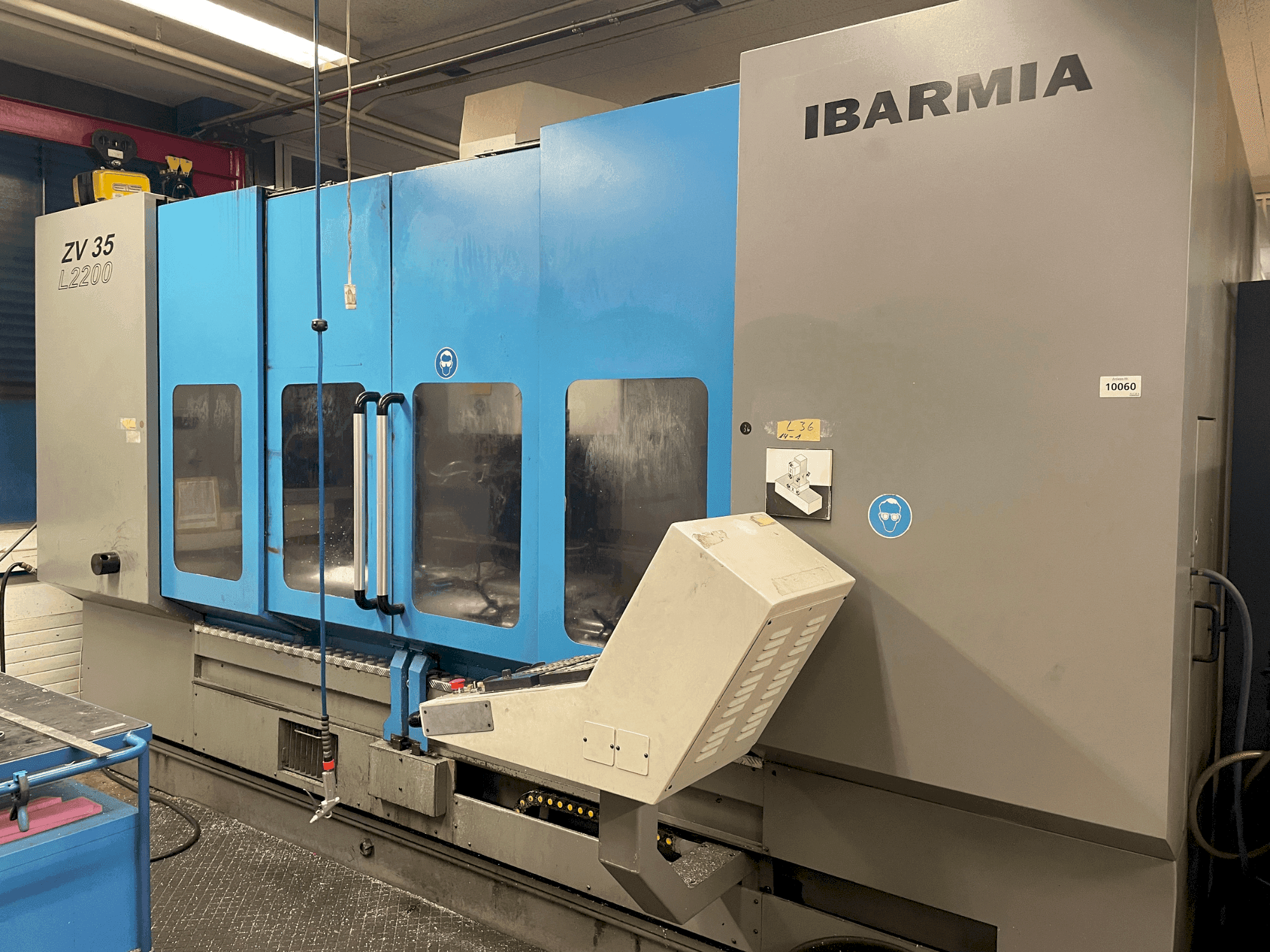

This 3-axis IBARMIA ZV 35 L2200 was manufactured in 2003. It features a Siemens 840-D control system, a robust ISO 40 spindle, and a high-speed main spindle at 12000 rpm. The machine offers a large working area with X-axis travel of 2200mm and a table size of 2500 x 520 mm. Ideal for precision machining, the IBARMIA ZV 35 L2200 vertical machining centre represents a solid investment. Contact us for further details regarding this vertical machining centre.

Overview

brand: IBARMIA
year: 2003
MODEL: ZV 35 L2200
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - IBARMIA ZV 35 L2200

Control Unit

Model: 840-D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 14 kW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 27 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 27 m/min

Table

Outer length: 2500 mm
Outer width: 520 mm

Tools

Slots in storage: 24
Max weight: 20 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Approximate maximum distance between spindle nose and table: 500 mm
- - Offset: 550 mm
- - Total stroke of the machine: 2250 x 500 x 500 mm
- - Ibarmia random tool changer

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
