Hyundai Wia F650 PLUS Vertical Machining

Show in original language

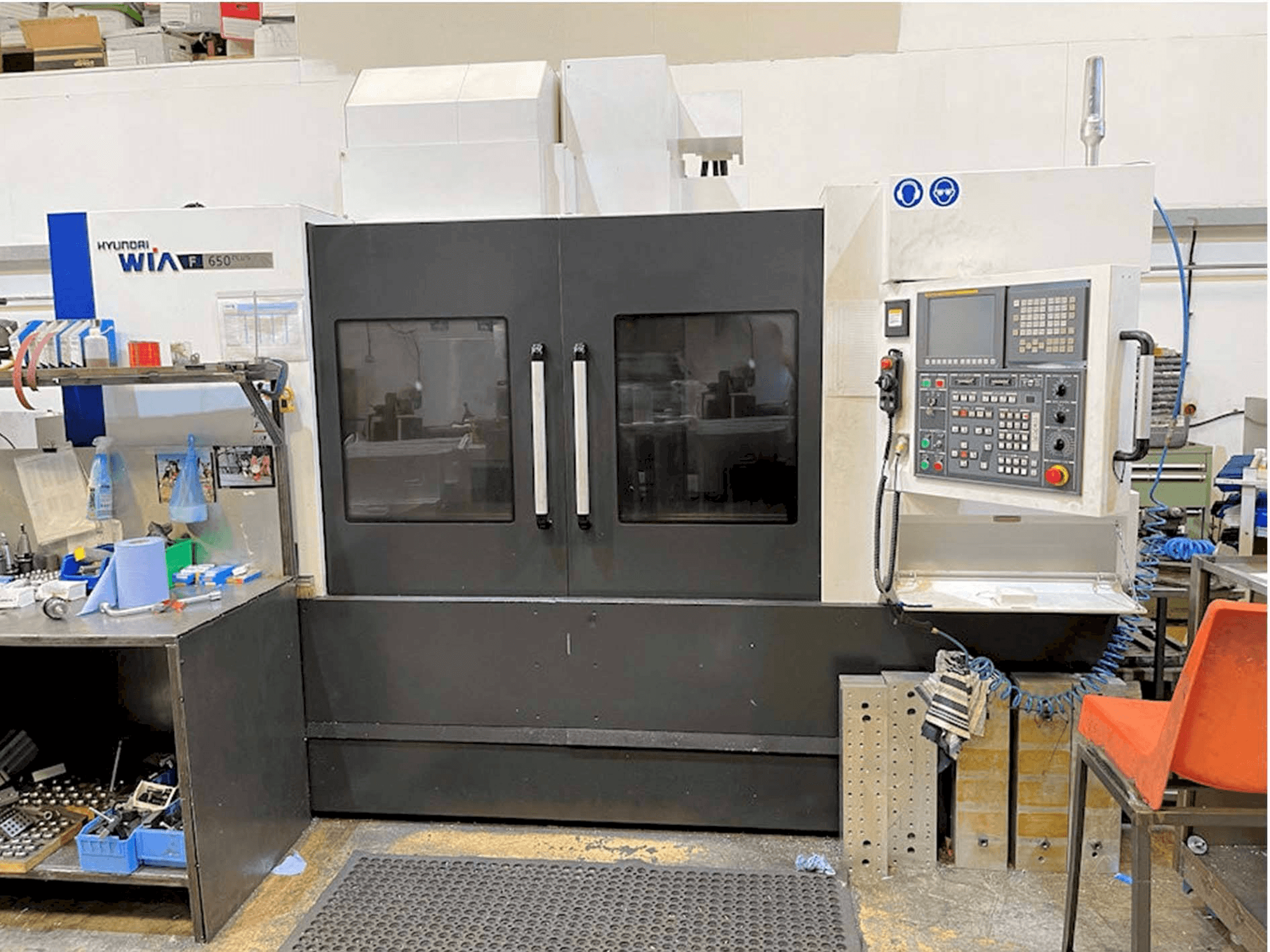

This Hyundai Wia F650 PLUS Vertical Machining center was manufactured in South Korea in 2016. It is equipped with a Fanuc OI control unit. This 3 axis machine works with a spindle speed up to 8000 rpm and includes a tool holder BT40 BIG PLUS. Machine in very good condition.

Overview

brand: Hyundai Wia
year: 2016
MODEL: F650 PLUS
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia F650 PLUS

General Data

Measurements width: 4646 mm
Measurements depth: 3158 mm
Measurements height: 2810 mm
Machine weight: 9500 kg

Control Unit

Model: OI
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1400 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1300 kg

Table

Outer length: 1600 mm
Outer width: 650 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 90/150 mm
Max tool length: 300 mm
Type of tool holder: BT40 BIG PLUS

Media

Power consumption: 24 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle centre to column 735 mm
- - Spindle motor power 15/11kw
- - Min. -max. Height under spindle 150 - 758 mm
- - Rapid feedrates xyz: 36 x 36 x 30m/minute
- - Through spindle cooling
- - Coolant, interlocked guards, low volt light, remote hand wheel
Qualitative Machine Benefits:
- - Very good condition!
- - Includes machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
