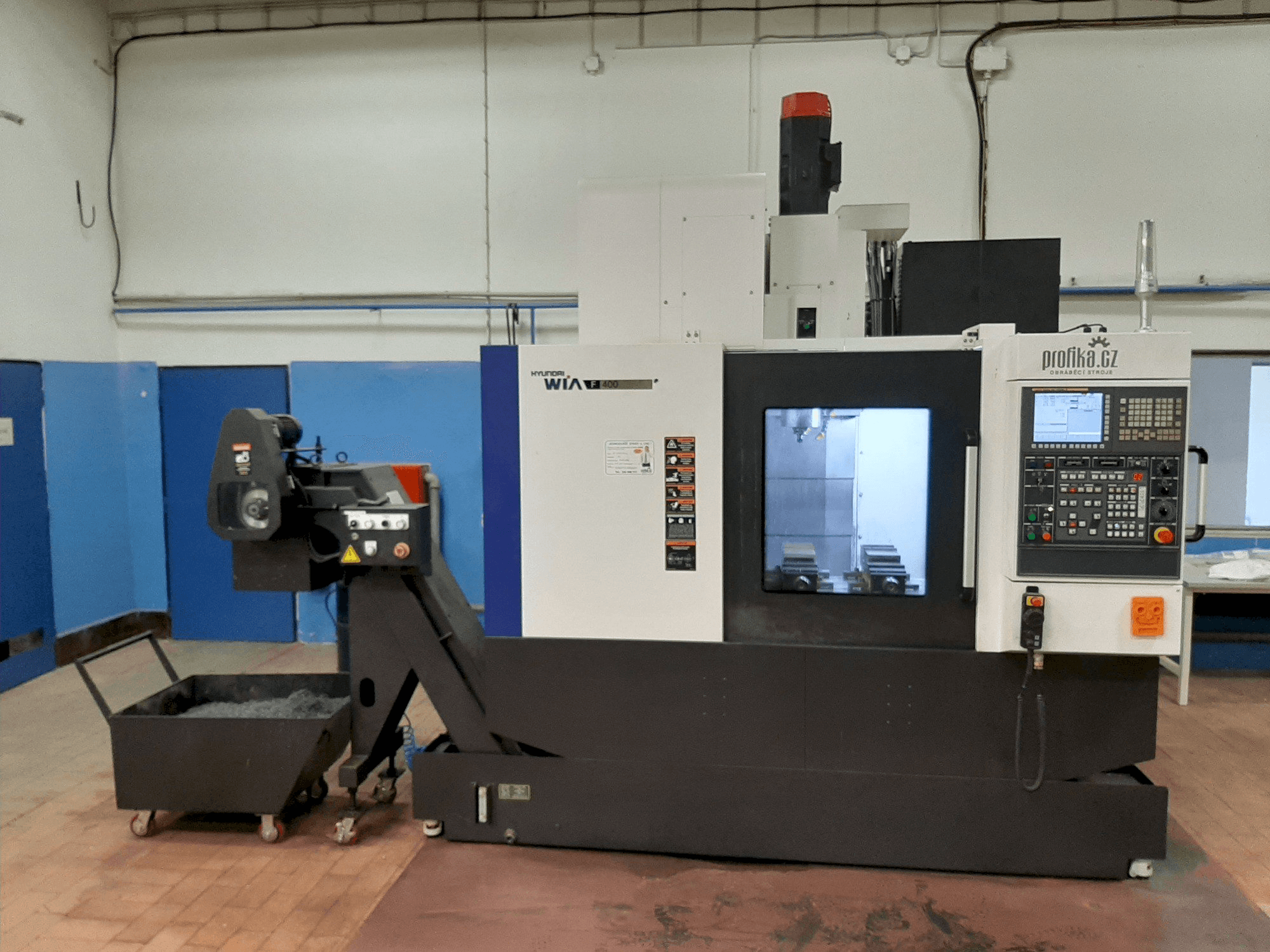

This Hyundai Wia F400 Vertical Machining Center was manufactured in 2016 in South Korea. It only has 997 working hours. This 3 axis machine operates through a Fanuc Series 32i control unit. It has a spindle speed up to 12000 rpm. The machine is like new, very low working hours.
Overview
- brand: Hyundai Wia
- year: 2016
- MODEL: F400
- production hours: 997
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Hyundai Wia F400
Control Unit
- Brand: Fanuc
- Model: Series 32i
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 11/7.5 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 460 mm
- Z-AXIS Movement: 520 mm
Workpiece
- Workpiece weight: 600 kg
Table
- Outer length: 1000 mm
- Outer width: 460 mm
Tools
- Slots in storage: 24
- Type of tool holder: #40
Media
- Main electronic connection: 380 V
- Power consumption: 20 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Workpiece probe omp 60 renishaw
- - Cooling thru spindle 20 bars
- - Tool probe ts27r renishaw
- - Manual guide workshop programming
- - Software options: fanuc al contour control ii, hw-mcs, hw-afc
- - Set of tool holders
- - Transformer
- - Rapid feeds 32/32/32 m/min
- Qualitative Machine Benefits:
- - Machine like new
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
