Hyundai Kia VX650/50 Vertical Machining Center

Show in original language

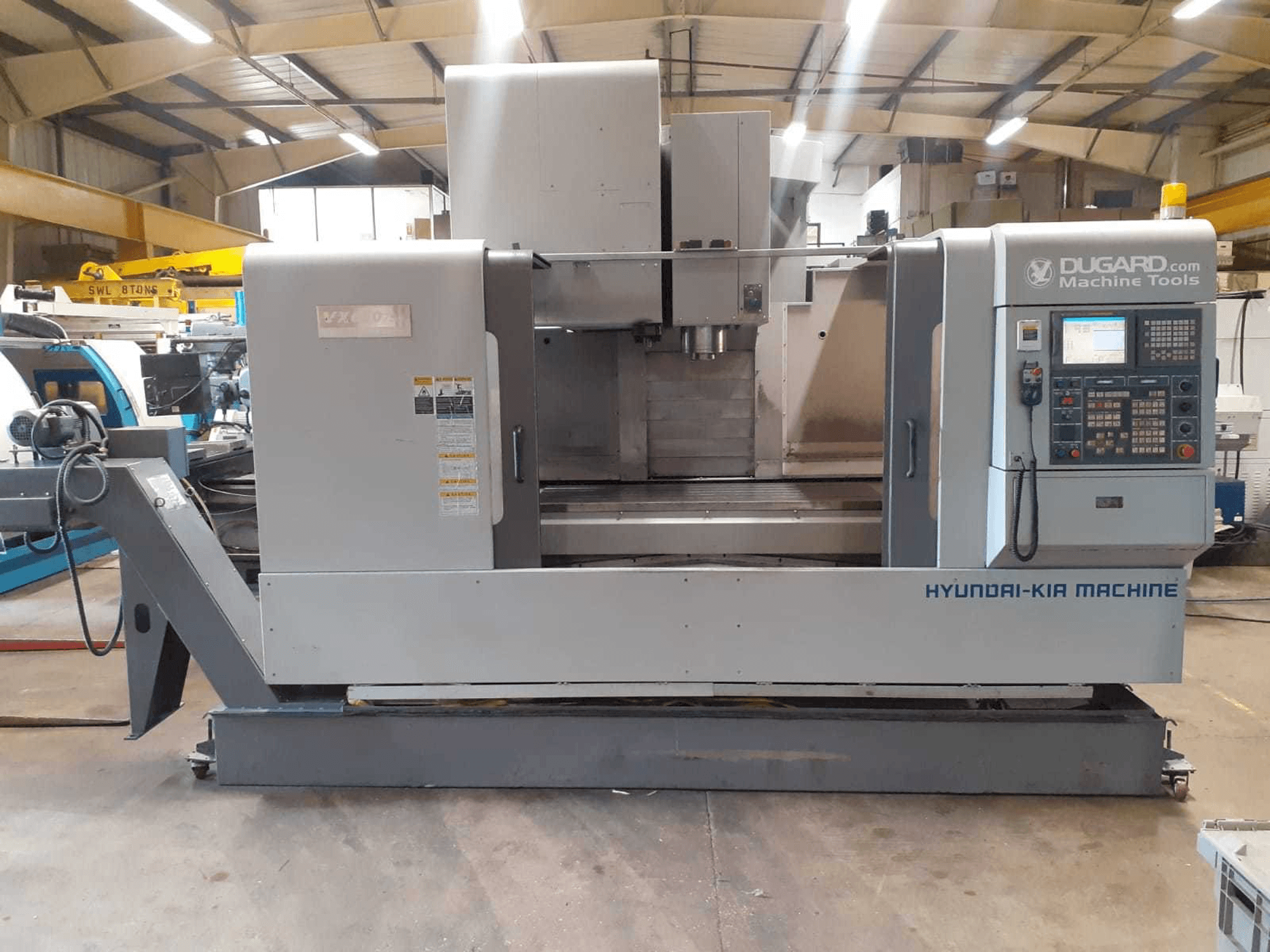

This Hyundai Kia VX650/50 Vertical Machining Center was built in the year 2008 in Korea. It shows 5333 running hours. This 3 axis machine is operated through a Fanuc Series control unit. It can works with a spindle speed up to 6000 rpm and a table size 1,600 x 650mm.

Overview

brand: HYUNDAI KIA
year: 2008
MODEL: VX650/50
production hours: 5333
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HYUNDAI KIA VX650/50

General Data

Measurements width: 3500 mm
Measurements depth: 3030 mm
Measurements height: 2870 mm
Machine weight: 9500 KG

Control Unit

Model: Series
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1400 MM
Y-AXIS Movement: 650 MM
Z-AXIS Movement: 635 MM

Table

Outer length: 1600 MM
Outer width: 650 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper: bt50
- - Atc: 24 station
- - Swarf conveyor: 1220 mm wider
- - Spindle chiller
- - Rigid tapping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
