HWACHEON Vesta 660 Vertical Machining Center

Show in original language

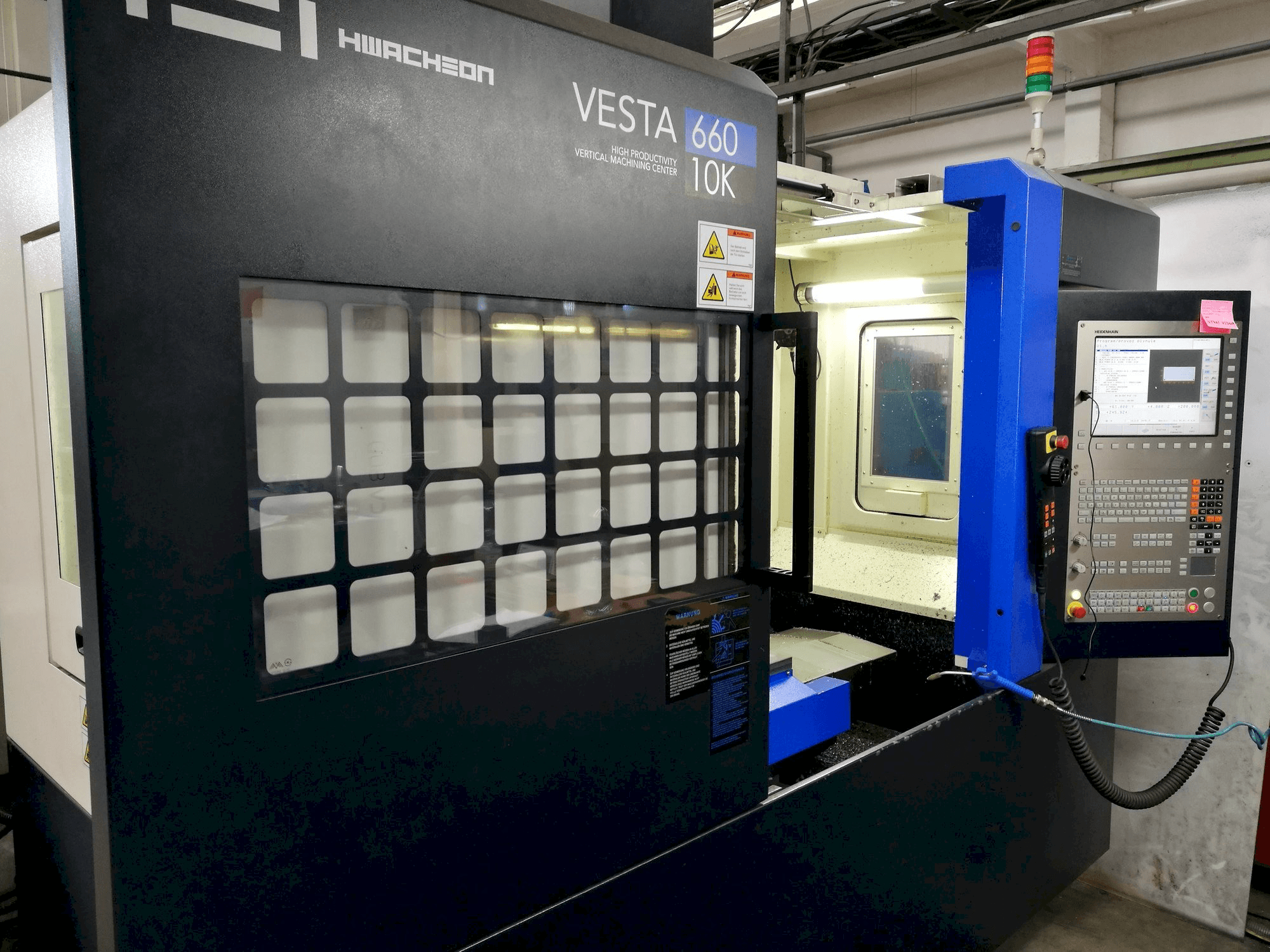

This HWACHEON Vesta 660 Vertical Machining Center was manufactured in 2015 in South Korea. It has been working for only 7919 (2164 spindle) hours since then. It is operated through a Heidenhain TNC 620 control unit. This machine can work with a spindle speed range up to 10000 rpm.

Overview

brand: HWACHEON
year: 2015
MODEL: Vesta 660
production hours: 7919
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HWACHEON Vesta 660

General Data

Measurements width: 3130 mm
Measurements depth: 1980 mm
Measurements height: 2535 mm
Machine weight: 5000 kg

Control Unit

Model: TNC 620
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 430 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 560 kg

Table

Outer length: 720 mm
Outer width: 400 mm
Number of tslots: 3
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: 80/150 mm
Max tool length: 300 mm
Type of tool holder: SK 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power 17/10 kw
- - Linear guideways
- - Workspace rinsing
- - Electronic handwheel
- - Rapid feedrates (x/y/z) 36/36/30 m/min
- - Work feedrates (x/y/z) 24. 000 mm/min
- - 1. 8 gb memory
- - 4th axis ready
- - Cooling thru spindle 30 bar
- - Control system with options (17-probes cycles, 19- fk programming, 20 - 3d simulations)
Qualitative Machine Benefits:
- - Very good condition
- - Low hours
- - Cast-iron construction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
