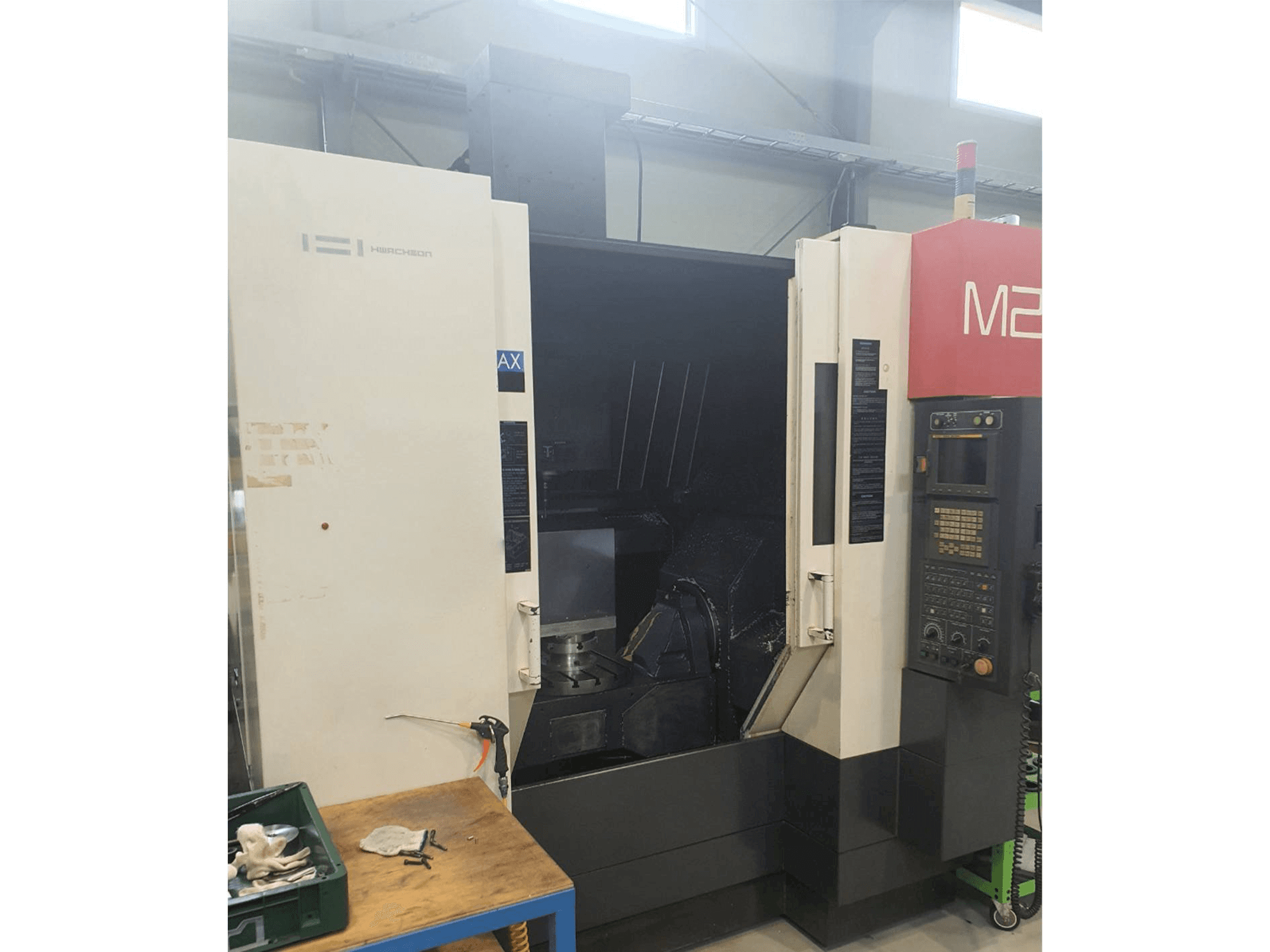

This HWACHEON M2 Vertical Machining center was manufactured in 2007. It is operated through a FANUC Series 18i-MB5 control unit. This 5 axis machine has a spindle speed up to 12000 rpm. It comes with an automatic tool measurement, direct spindle type and includes manual books.
Overview
- brand: HWACHEON
- year: 2007
- MODEL: M2
- application type: Milling
- Location: South Korea
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - HWACHEON M2
Control Unit
- Brand: FANUC
- Model: Series 18i-MB5
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: BT40
- Number of axis: 5
Movement
- X-AXIS Movement: 750 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 500 mm
Table
- Table load: 300 KG
Media
- Main electronic connection: 220V / 60Hz
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - A-axis deg. : 150 (+30 ~ -120)
- - C-axis deg. : 360
- - Max. Workpiece swing diameter x height : Ø400 x 335mm
- - Table size : Ø500 mm
- - Oil cooler
- - Direct spindle type
- - Magazine tool capacity: 30 ea
- - Linear scale (x, y, z, a, c)
- - Automatic tool measurement
- - Guideway type: lm guide
- Qualitative Machine Benefits:
- - Call right (led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
