- Huron K2X8 Vertical Machining Center

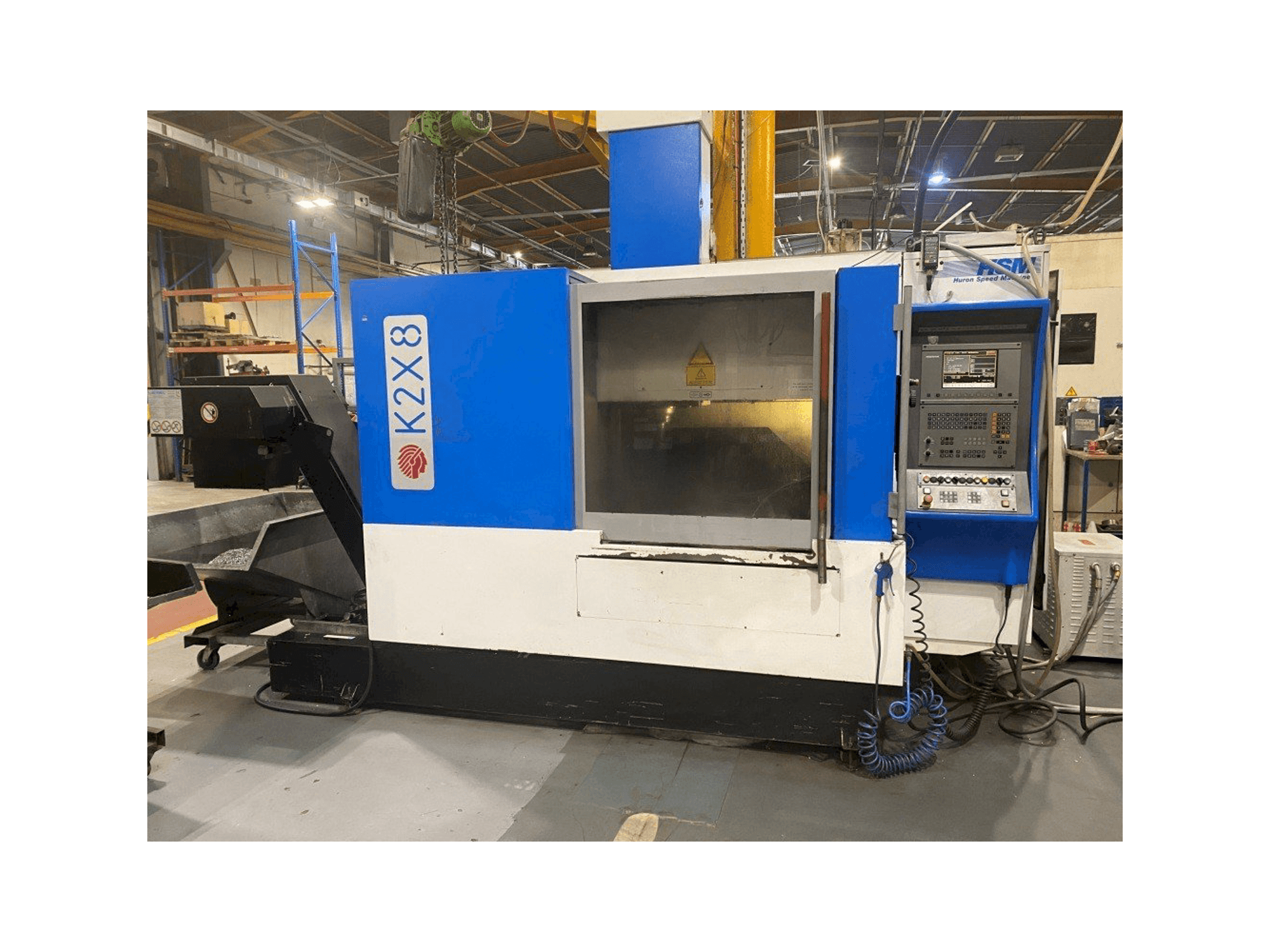

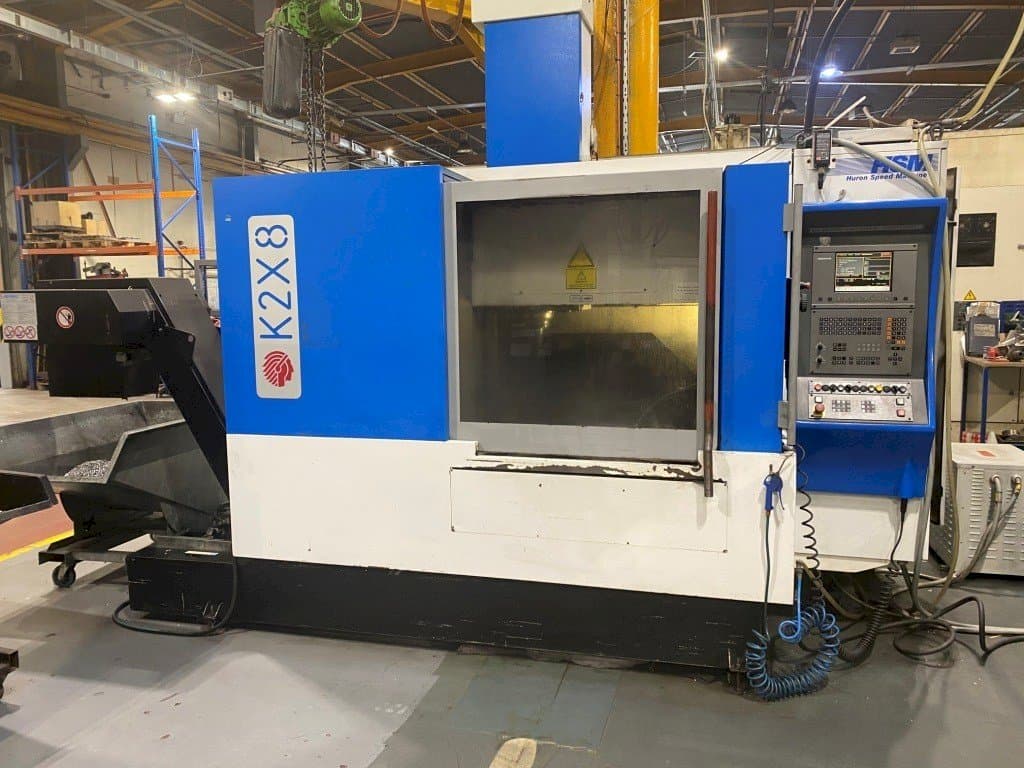

This Huron K2X8 Vertical Machining Center was made in 2006 in France. It is equipped with a Heidenhain iTNC530 control unit. This machine operates with a spindle speed up to 24000 rpm.
Overview
- brand: Huron
- year: 2006
- MODEL: K2X8
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Huron K2X8
General Data
- Measurements width: 4480 mm
- Measurements depth: 2570 mm
- Measurements height: 3070 mm
- Machine weight: 7000 kg
Control Unit
- Model: iTNC530
- CNC main language: English
- CNC language customizable: Yes
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 24000 1/MIN
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 450 mm
Table
- Outer length: 800 mm
- Outer width: 600 mm
Tools
- Slots in storage: 20
- Type of tool holder: HSK63A
Additional equipment
- - Spindle Probe - M& H (Radio Signal) RWP 38.10
- - Tool Probe/Setter - Heidenhain TT 130
Additional Information
- Material type: Mildsteel
- End product: Oil and gas industry parts
- Industries: Oil and gas industry
- Technical Machine Benefits:
- - High speed machining centre
- - Spindle power: 24kw
- - Rapids: 50,000mm/min
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
