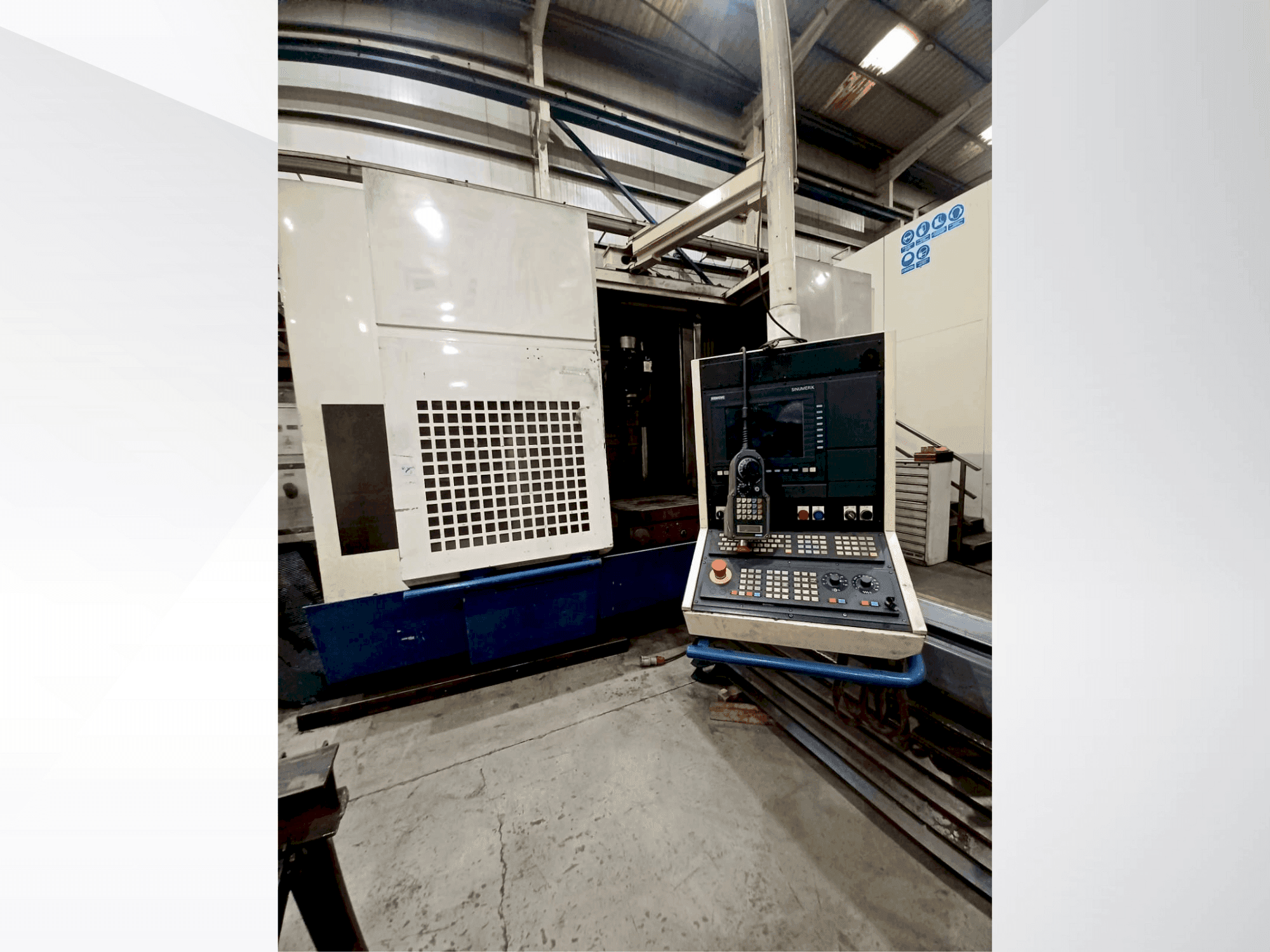

This 5-axis Huron EX-C vertical machining center was manufactured in 1998. Ideal for complex and precise machining tasks, it offers enhanced flexibility and productivity for your workshop. If you are looking to get high-quality milling capabilities, consider the Huron EX-C machine we have for sale. Contact us for more information.
Overview
- brand: Huron
- year: 1998
- MODEL: EX-C
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - Huron EX-C
General Data
- Machine weight: 18000 KG
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840-D
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 1600 mm
- Y-AXIS Movement: 700 mm
- Z-AXIS Movement: 800 mm
- A-AXIS Movement: Continuous rotation, 360000 positions MM
- B-AXIS Movement: ±100° (0.001° resolution) MM
Table
- Outer length: 2000 mm
- Outer width: 600 mm
- Table load: 3000 kg
Tools
- Slots in storage: 32
- Max weight: 10 daN KG
- Max tool diameter: 100 mm
- Max tool length: 300 mm
Additional Information
- Technical Machine Benefits:
- - Min-max table-to-spindle height (horizontal spindle): 505 - 1305 mm
- - Min-max table-to-spindle height (vertical spindle): 230 - 1030 mm
- - High-quality, robust machine
- - Mobile column and fixed table design
- - Table composed of three sections: 2 fixed linear sections and 1 centrally controlled rotary section
- - Tilting spindle head with a high-speed, high-power electro-spindle
- - Spindle cooling system
- - Internal high-pressure cooling through the spindle
- - Chip extractor
- - External cooling system
- Qualitative Machine Benefits:
- - Various hsk63-a tooling (+/- 50 tool holders, some unused)
- - Technical documentation
- - 2 fixed linear tables (x-y): 520 x 700 mm each
- - Integrated central rotary table (x-y): 800 x 700 mm
- - T-slot type, number, and spacing: 18h8 / 6 slots / 100 mm
- - 18h8 / 6 slots / 100 mm
- - Total installed power: 60 kw, 380v, 50 hz
- - Required installation space (l x w): ~6000 x 4100 mm x 3720
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
