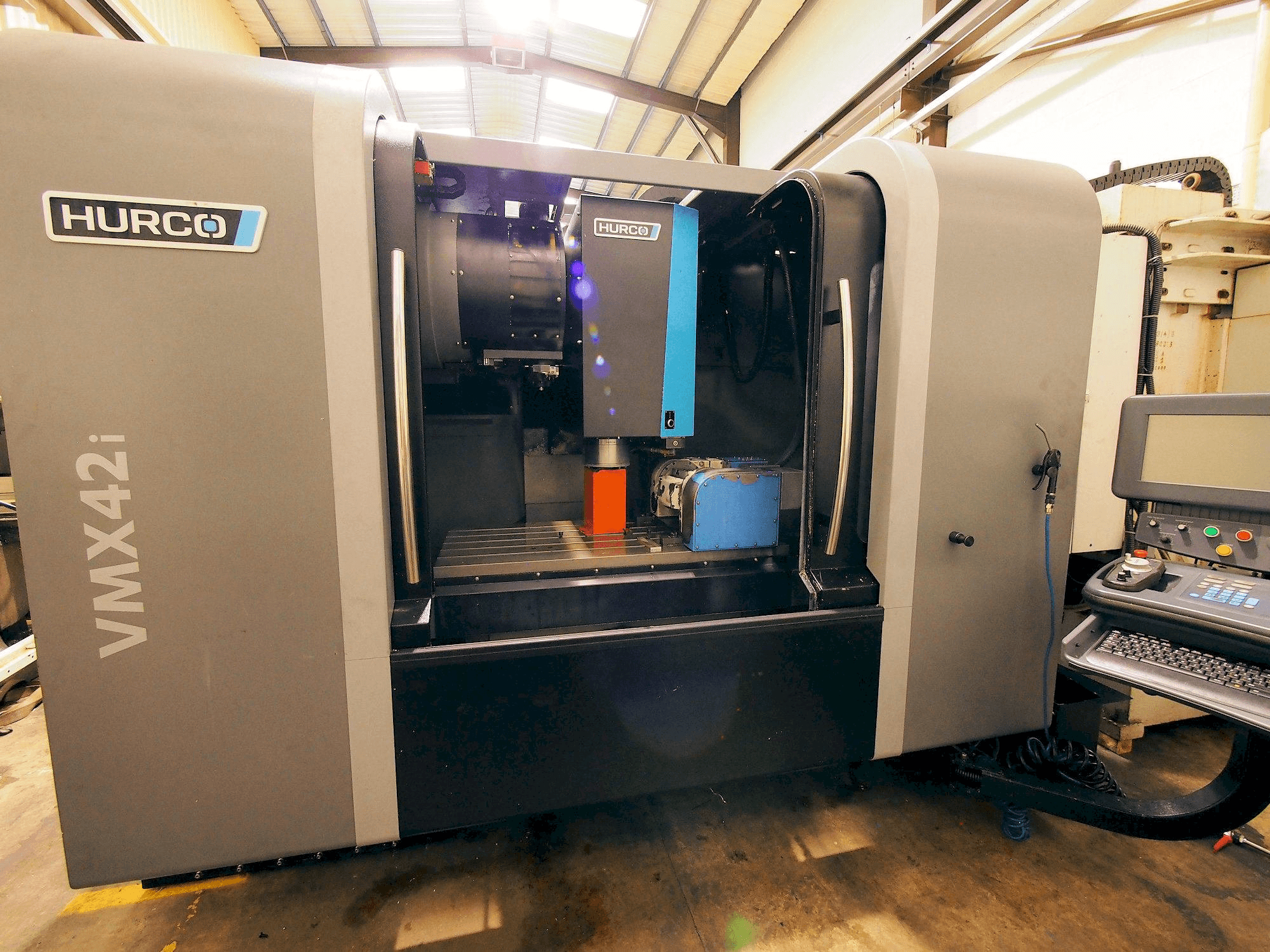

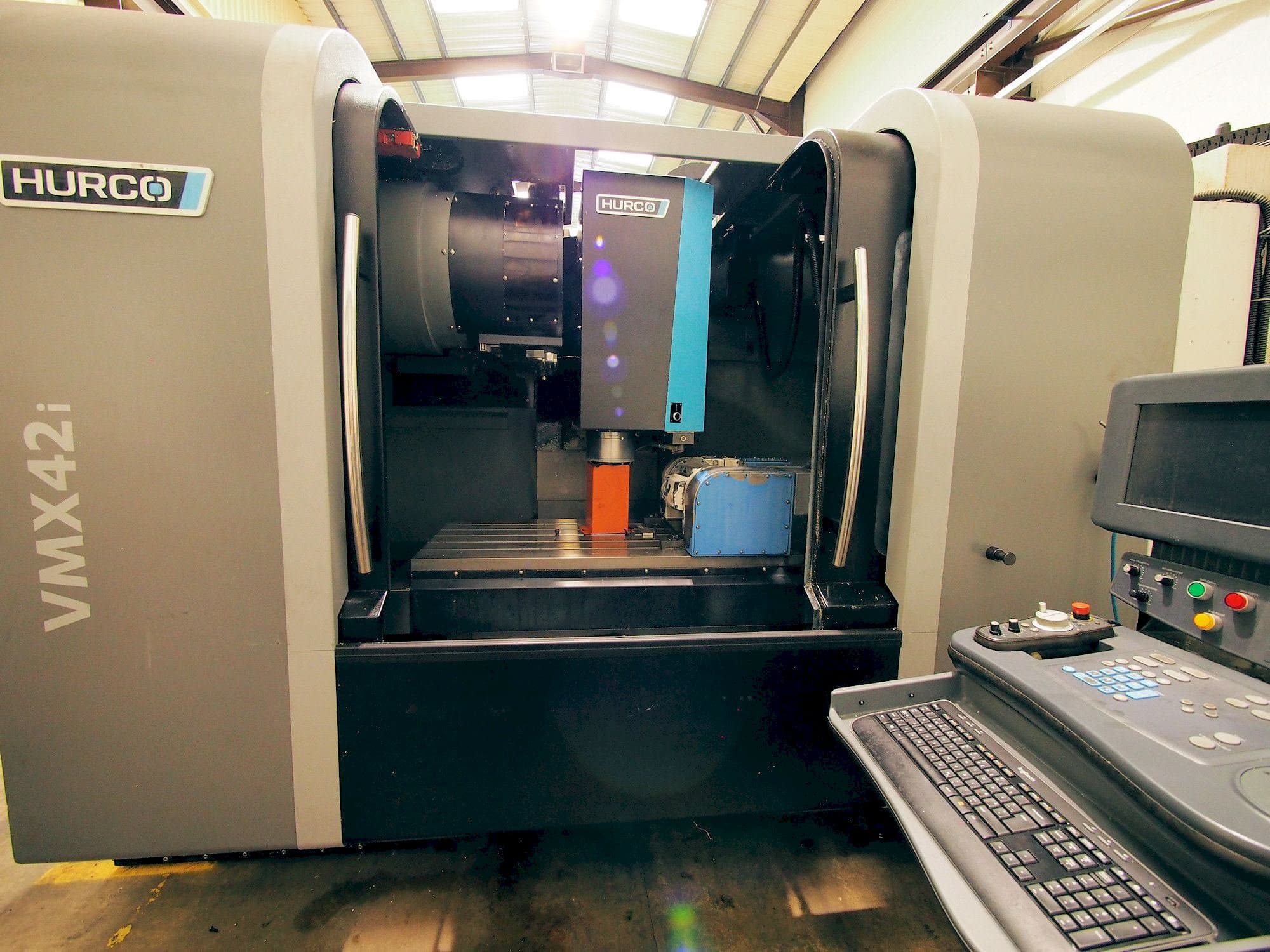

This Hurco VMX 42i Vertical Machining Center was manufactured in 2014 in Taiwan. It has been working for 30702 hours, of which 16644 area spindle hours. It is operated through a Hurco WinMax control unit. This machine has a spindle speed up to 10000 rpm. It is a 5 axis vmc as it is equipped with the additional swiveling and rotation table, which makes it 5 axis. It is only suitable for smaller parts. It is in a very good working conditions.

Overview

brand: Hurco
year: 2014
MODEL: VMX 42i
production hours: 30702
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 42i

General Data

Measurements width: 5435 mm
Measurements depth: 4500 mm
Measurements height: 2844 mm
Machine weight: 6900 kg

Control Unit

Model: VMX 42i
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 18 kw
Number of axis: 5

Workpiece

Workpiece weight: 1360 kg

Table

Outer length: 1270 mm
Outer width: 610 mm
Min distance between vertical spindle and table: 152-762 mm

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 79 mm
Max tool length: 300 mm
Type of tool holder: DIN 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrates x y z 35 / 35 / 30 m/min
- - Coolant
- - Interlocked guards
- - It is equipped with the additional swiveling and rotation table
- - It is only suitable for smaller parts
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
