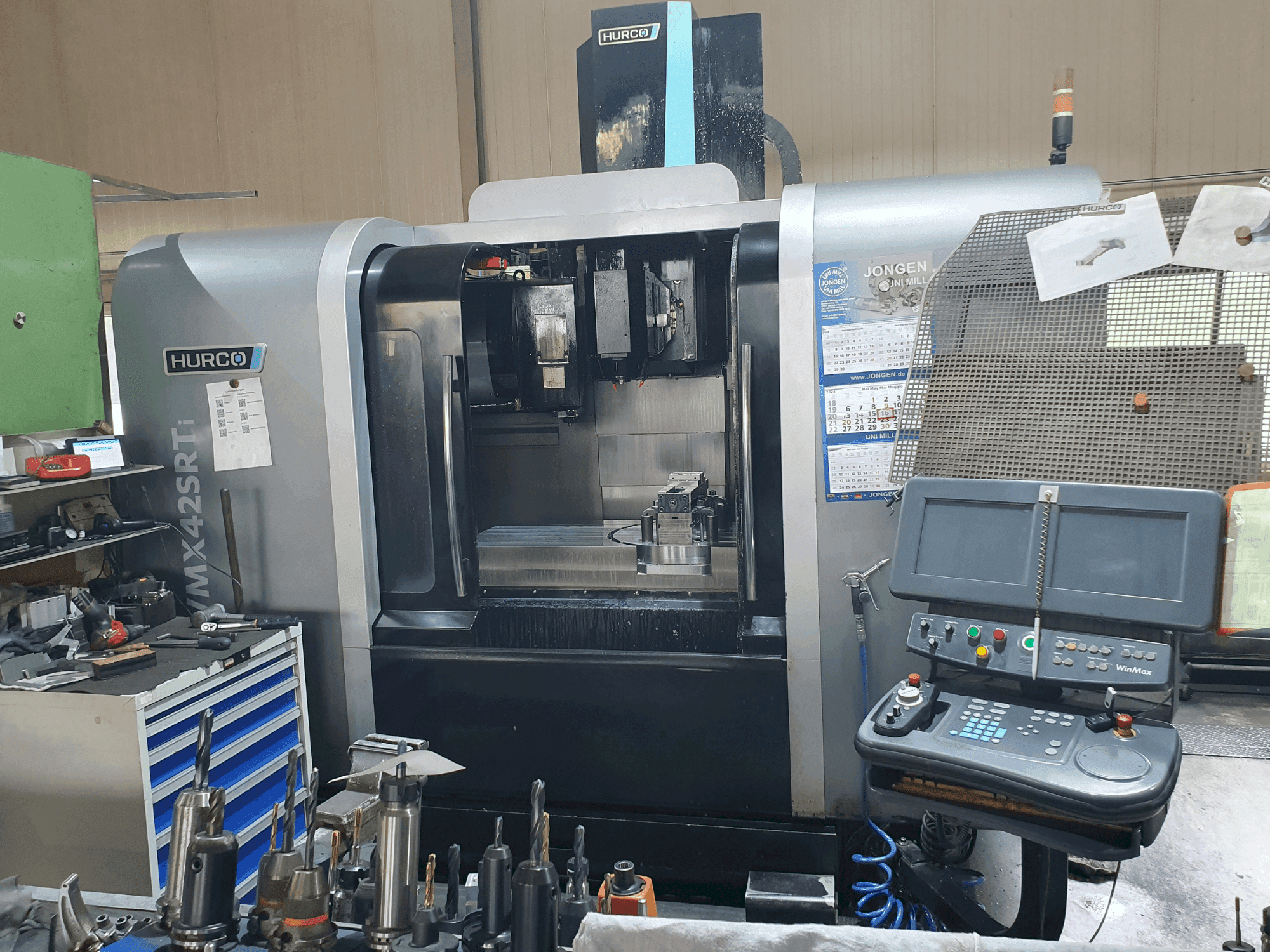

This 5-axis Hurco VMX 42 SRTi was manufactured in 2013 and features a robust motorized spindle with a power of 36.5 kW and a maximum torque of 2900 rpm. It boasts a large working range with X, Y, Z dimensions of 1060 mm, 610 mm, and 610 mm respectively, and a rotary table diameter of 600 mm. The machine can handle a table load of 1300 kg and a rotary table load of 500 kg. For more information about this Machining Centre, please reach out to us.
Overview
- brand: Hurco
- year: 2013
- MODEL: VMX 42 SRTi
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Sold
Technical Information - Hurco VMX 42 SRTi
Main drive
- Spindle speed range: 2900 rpm 1/MIN
- Spindle motor power: 36.5 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 1060 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 610 mm
- B-AXIS Movement: -90/+90º MM
- C-AXIS Movement: 360º MM
Workpiece
- Workpiece weight: Table Load, Uniform: 1300 kg; Rotary Table Load, Uniform: 500 kg
Table
- Outer length: 1270 mm
- Outer width: 600 mm
- TSlots size: 18 mm H8
- Number of tslots: 5
- Distance between: 100 mm
Media
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - New spindle details: vmx42sr cts 16k motor spindle - overhauled, rotary head: lcm-md-125 vmx-sr - general overhaul
- - Position accuracy: x, y, z: 0. 01 mm, b: ±7 sec. , c: ±5 sec.
- - Repeat accuracy: x, y, z: 0. 005 mm, b: 7 sec. , c: 5 sec.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
