Hurco - VM10iDE-MIL-HUR-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

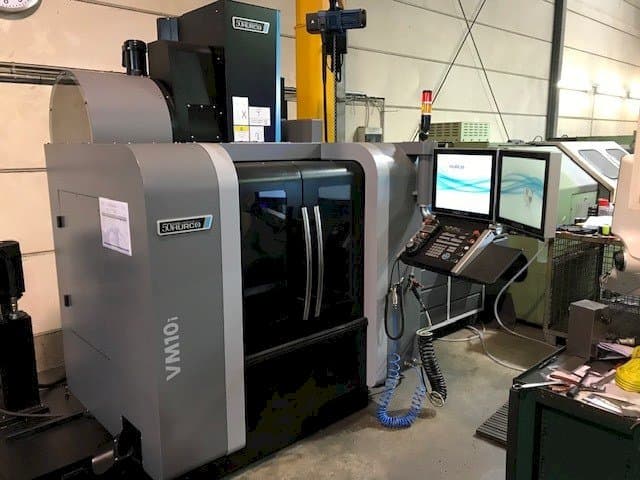

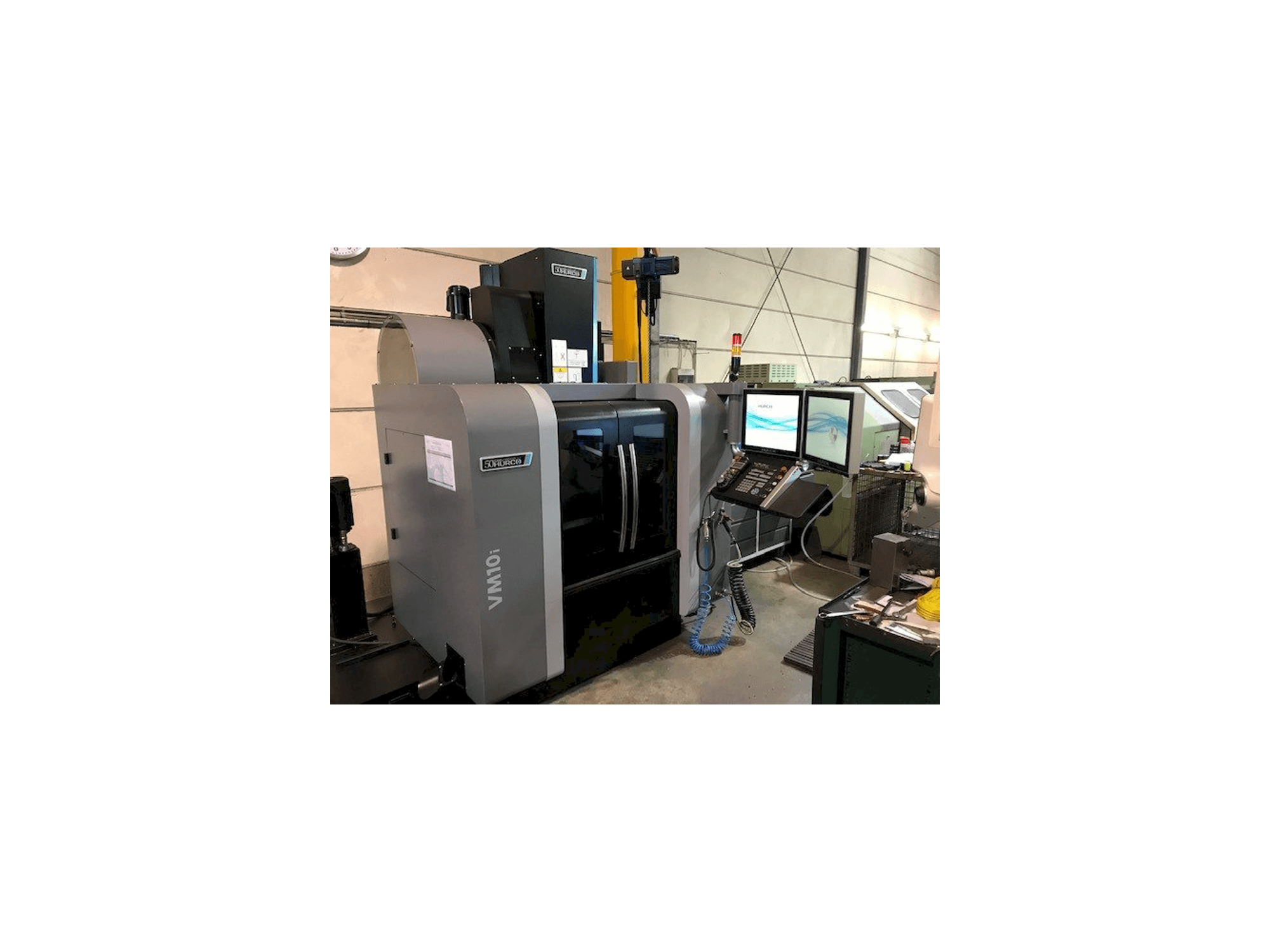

This Hurco VM10i Vertical Machining Center was built in Taiwan in the year 2018. It has been operative for only 170 hours. This 3 axis machine performs through a MAX5 control unit equipped with a 2 x 19" LCD colour screen. It works with a spindle speed up to 12000 rpm.

Overview

brand: Hurco
year: 2018
MODEL: VM10i
production hours: 170
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Hurco VM10i

General Data

Measurements width: 3204 mm
Measurements depth: 3363 mm
Measurements height: 2564 mm
Machine weight: 2850 kg

Control Unit

Interface: Network-Ethernet-USB
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 11 kw
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
X-AXIS Working Feed: 24 m/min
X-AXIS Feed Force: 7.8 kn
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Working Feed: 24 m/min
Y-AXIS Feed Force: 7.8 kn
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Working Feed: 24 m/min
Z-AXIS Feed Force: 7.8 kn
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 762 mm
Outer width: 406 mm
Table load: 682 kg

Tools

Max weight: 7 kg
Max tool diameter: 89 mm
Max tool length: 250 mm
Type of tool holder: SK40

Media

Main electronic connection: 400 v
Power consumption: 16 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque max. 61 nm
- - T-slots (din 650) 3 x 18 h8 x 100
- - Spindle nose - table: 102 - 610 mm
- - Magazine places / optional: 20
- - Coolant tank capacity 62 l
- - Screw conveyor: standard

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
