- HURCO VM1 VMC Vertical Machining Center

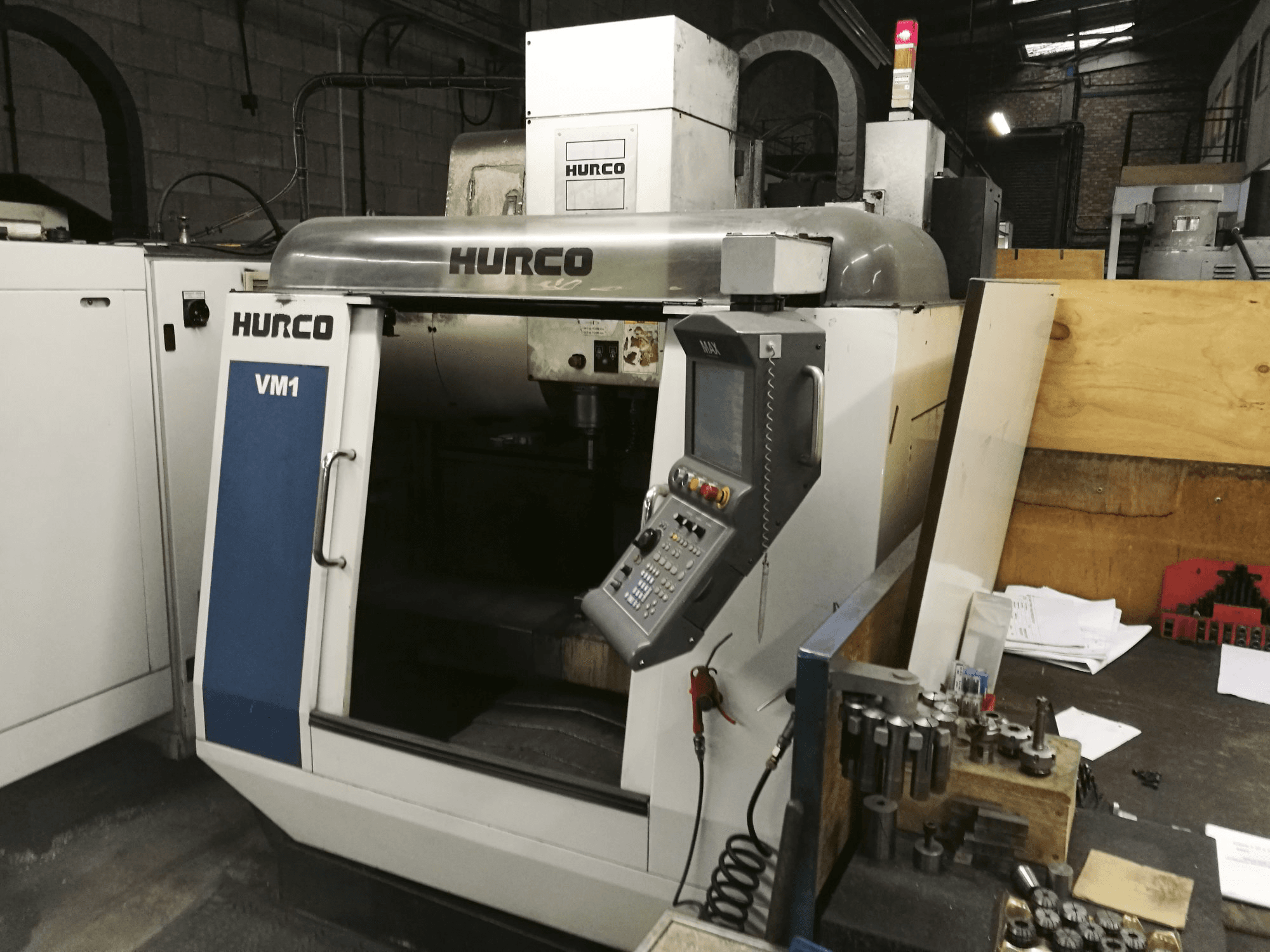

This HURCO VM1 VMC Vertical Machining Center from 2004 is operated through a "Max Control" Control unit. This compact equipment comes with an incorporated chip conveyer and stands out for its 16x tool changer.
Overview
- brand: Hurco
- year: 2004
- MODEL: VM1 VMC
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Mazak
Technical Information - Hurco VM1 VMC
General Data
- Measurements width: 1800 mm
- Measurements depth: 1900 mm
- Measurements height: 2600 mm
- Machine weight: 2700 kg
Control Unit
- Brand: Mazak
Main drive
- Number of spindles: 1
- Spindle speed range: 40-8000 1/min
- Spindle motor power: 11 kW
- Tool taper: 40
Movement
- X-AXIS Movement: 660 mm
- X-AXIS Working Feed: 8 m
- X-AXIS Rapid traverse: 20 m
- X-AXIS Accuracy: 0.005
- Y-AXIS Movement: 350 mm
- Y-AXIS Working Feed: 8 m
- Y-AXIS Rapid traverse: 20 m
- Y-AXIS Accuracy: 0.005
- Z-AXIS Movement: 450 mm
- Z-AXIS Working Feed: 8 m
- Z-AXIS Rapid traverse: 20 m
- Z-AXIS Accuracy: 0.005
Workpiece
- Workpiece weight: 350 kg
Table
- Outer length: 762 mm
- Outer width: 356 mm
Tools
- Slots in storage: 16
Media
- Main electronic connection: 240 V / 60 Hz
- Power consumption: 13 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
